caviar cardiac application

Created: 2009-05-23 17:49:08 Last updated: 2009-05-23 17:52:04

Download Workflow

Applications details in the following paper:
Ketan Maheshwari, Tristan Glatard, Joel Schaerer, Bertrand Delhay, Sorina Camarasu, Patrick Clarysse, Johan Montagnat. "Towards Production-level Cardiac Image Analysis with Grids" in Proceedings of the HealthGrid'09, Berlin, 28-30 june 2009

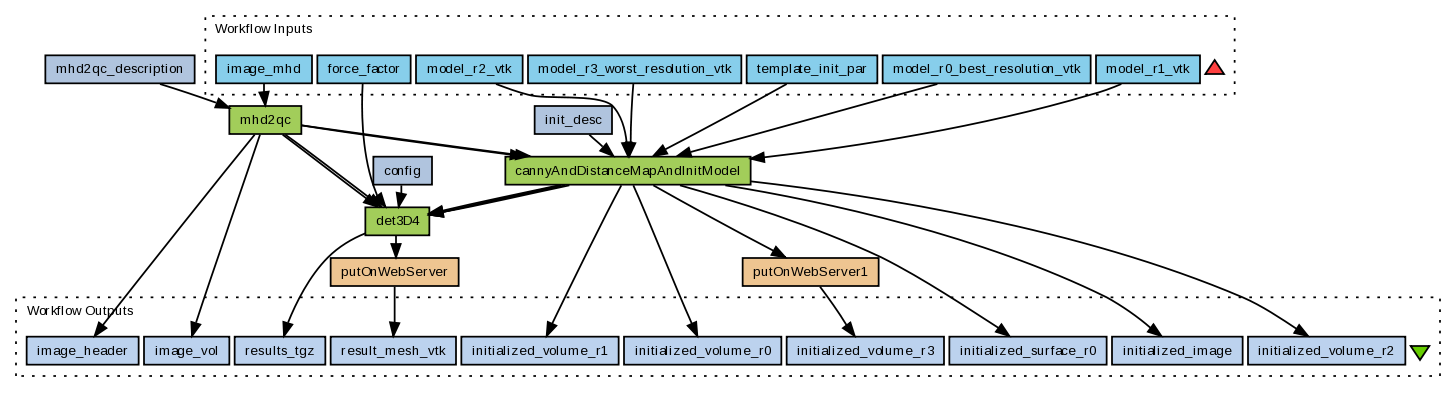

The 3 green boxes are run on the EGEE grid. Addional Beanshells have been added to transfer results from EGEE Storage Elements to a web server, to allow for better interactivity.

Preview

Download as scalable diagram (SVG)

Run

Run this Workflow in the Taverna Workbench...

Option 1:

Copy and paste this link into File > 'Open workflow location...'
http://myexperiment.org/workflows/765/download?version=1
[ More Info Expand ]

Workflow Components

Inputs (7)

Name	Description
image_mhd
model_r0_best_resolution_vtk
model_r1_vtk
model_r2_vtk
model_r3_worst_resolution_vtk
template_init_par
force_factor

Processors (8)

Name	Type	Description
config	stringconstant
mhd2qc_description	stringconstant
init_desc	stringconstant
mhd2qc	arbitrarywsdl	Service definition of function ns__GASWexecution
det3D4	arbitrarywsdl	Service definition of function ns__GASWexecution
cannyAndDistanceMapAndInitModel	arbitrarywsdl	Service definition of function ns__GASWexecution
putOnWebServer	beanshell
putOnWebServer1	beanshell

Beanshells (2)

Name	Description	Inputs	Outputs
putOnWebServer		lfn	out
putOnWebServer1		lfn	out

Outputs (10)

Name	Description
results_tgz
result_mesh_vtk
initialized_surface_r0
initialized_volume_r3
initialized_image
initialized_volume_r2
initialized_volume_r1
initialized_volume_r0
image_header
image_vol

Links (30)

Source	Sink
cannyAndDistanceMapAndInitModel:result1	det3D4:input5
cannyAndDistanceMapAndInitModel:result3	det3D4:input4
cannyAndDistanceMapAndInitModel:result4	det3D4:input3
cannyAndDistanceMapAndInitModel:result5	det3D4:input2
config:value	det3D4:config-file
force_factor	det3D4:input6
image_mhd	mhd2qc:input0
init_desc:value	cannyAndDistanceMapAndInitModel:config-file
mhd2qc:result0	cannyAndDistanceMapAndInitModel:input0
mhd2qc:result0	det3D4:input0
mhd2qc:result1	det3D4:input1
model_r0_best_resolution_vtk	cannyAndDistanceMapAndInitModel:input2
model_r1_vtk	cannyAndDistanceMapAndInitModel:input4
model_r2_vtk	cannyAndDistanceMapAndInitModel:input5
model_r3_worst_resolution_vtk	cannyAndDistanceMapAndInitModel:input6
template_init_par	cannyAndDistanceMapAndInitModel:input3
cannyAndDistanceMapAndInitModel:result5	putOnWebServer1:lfn
det3D4:result1	putOnWebServer:lfn
mhd2qc:result1	cannyAndDistanceMapAndInitModel:input1
mhd2qc_description:value	mhd2qc:config-file
cannyAndDistanceMapAndInitModel:result0	initialized_surface_r0
cannyAndDistanceMapAndInitModel:result1	initialized_volume_r0
cannyAndDistanceMapAndInitModel:result2	initialized_image
cannyAndDistanceMapAndInitModel:result3	initialized_volume_r1
cannyAndDistanceMapAndInitModel:result4	initialized_volume_r2
det3D4:result0	results_tgz
mhd2qc:result0	image_header
mhd2qc:result1	image_vol
putOnWebServer1:out	initialized_volume_r3
putOnWebServer:out	result_mesh_vtk

Coordinations (0)

Information Workflow Type

Taverna 1

Information Uploader

Glatard

Information License

All versions of this Workflow are licensed under:

Information Version 1 (of 1)

Information Credits (1)

(People/Groups)

Glatard

Information Attributions (0)

(Workflows/Files)

None

Information Tags (1)

Uploader tags

medical imaging

Log in to add Tags

Information Shared with Groups (0)

None

Information Featured In Packs (0)

None

Log in to add to one of your Packs

Information Attributed By (0)

(Workflows/Files)

None

Information Favourited By (0)

No one

Information Statistics

1467 viewings

1387 downloads

[ see breakdown ]

Citations (0)

None

Version History

In chronological order:

caviar cardiac application

Created by Glatard on Saturday 23 May 2009 17:49:08 (UTC)

Last edited by Glatard on Saturday 23 May 2009 17:52:05 (UTC)

Reviews (0)

No reviews yet

Be the first to review!

Comments (0)

View Timeline

No comments yet

Log in to make a comment
