Phenotype to pubmed
Created: 2010-07-05 14:07:33
Last updated: 2011-01-11 12:07:22
This workflow takes in a phenotype search term, and searches for abstracts in the PubMed database. These are passed to the eSearch function and searched for in PubMed. Those abstracts found are returned to the user
Preview
Run
Run this Workflow in the Taverna Workbench...

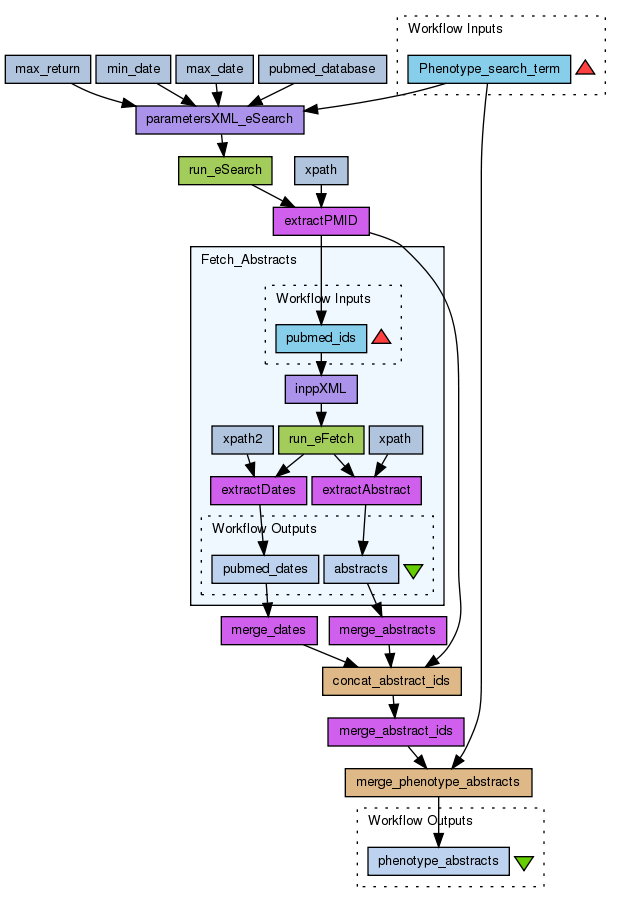

Workflow Components
Authors (1)
Titles (1)
Descriptions (1)
This workflow takes in a phenotype search term, and searches for abstracts in the PubMed database. These are passed to the eSearch function and searched for in PubMed. Those abstracts found are returned to the user |
Dependencies (0)
Inputs (1)
Name |
Description |
Phenotype_search_term |
|
Processors (14)
Name |
Type |
Description |
max_return |
stringconstant |
Value5000 |
min_date |
stringconstant |
Value1990/01/01 |
max_date |
stringconstant |
Value2010/09/30 |
xpath |
stringconstant |
Value/*[local-name(.)='eSearchResult']/*[local-name(.)='IdList']/*[local-name(.)='Id'] |
pubmed_database |
stringconstant |
Valuepubmed |
merge_phenotype_abstracts |
beanshell |
ScriptString[] split = abstracts.split("\n");
String phenotype_term = phenotype.trim();
Vector nonEmpty = new Vector();
for (int i = 0; i < split.length; i++)
{
String trimmed = split[i].trim();
// String mytext = split[i].substring(split[i].indexOf(0), split[i].indexOf(" AND "));
nonEmpty.add(trimmed);
}
String output = ">> " + phenotype_term + "\n";
for (int i = 0; i < nonEmpty.size(); i++)
{
output = output + (String) (nonEmpty.elementAt(i) + "\n");
} |
concat_abstract_ids |
beanshell |
ScriptString id = id.trim();
String abstract_text = abstract_text.trim();
String dates_text = dates.trim();
String output = "";
output = id + "\t" + dates_text + "\t" + abstract_text; |
run_eSearch |
wsdl |
Wsdlhttp://eutils.ncbi.nlm.nih.gov/entrez/eutils/soap/eutils.wsdlWsdl Operationrun_eSearch |
merge_abstracts |
localworker |
ScriptString seperatorString = "\n";
if (seperator != void) {
seperatorString = seperator;
}
StringBuffer sb = new StringBuffer();
for (Iterator i = stringlist.iterator(); i.hasNext();) {
String item = (String) i.next();
sb.append(item);
if (i.hasNext()) {
sb.append(seperatorString);
}
}
concatenated = sb.toString();
|
merge_abstract_ids |
localworker |
ScriptString seperatorString = "\n";
if (seperator != void) {
seperatorString = seperator;
}
StringBuffer sb = new StringBuffer();
for (Iterator i = stringlist.iterator(); i.hasNext();) {
String item = (String) i.next();
sb.append(item);
if (i.hasNext()) {
sb.append(seperatorString);
}
}
concatenated = sb.toString();
|
merge_dates |
localworker |
ScriptString seperatorString = "\n";
if (seperator != void) {
seperatorString = seperator;
}
StringBuffer sb = new StringBuffer();
for (Iterator i = stringlist.iterator(); i.hasNext();) {
String item = (String) i.next();
sb.append(item);
if (i.hasNext()) {
sb.append(seperatorString);
}
}
concatenated = sb.toString();
|
extractPMID |
localworker |
Scriptimport org.dom4j.Document;
import org.dom4j.Node;
import org.dom4j.io.SAXReader;
SAXReader reader = new SAXReader(false);
reader.setIncludeInternalDTDDeclarations(false);
reader.setIncludeExternalDTDDeclarations(false);
Document document = reader.read(new StringReader(xmltext));
List nodelist = document.selectNodes(xpath);
// Process the elements in the nodelist
ArrayList outputList = new ArrayList();
ArrayList outputXmlList = new ArrayList();
String val = null;
String xmlVal = null;
for (Iterator iter = nodelist.iterator(); iter.hasNext();) {
Node element = (Node) iter.next();
xmlVal = element.asXML();
val = element.getStringValue();
if (val != null && !val.equals("")) {
outputList.add(val);
outputXmlList.add(xmlVal);
}
}
List nodelist=outputList;
List nodelistAsXML=outputXmlList; |
parametersXML_eSearch |
xmlsplitter |
|
Fetch_Abstracts |
workflow |
|
Beanshells (2)
Name |
Description |
Inputs |
Outputs |
merge_phenotype_abstracts |
|
phenotype
abstracts
|
output
|
concat_abstract_ids |
|
id
abstract_text
dates
|
output
|
Outputs (1)
Name |
Description |
phenotype_abstracts |
|
Datalinks (18)
Source |
Sink |
merge_abstract_ids:concatenated |
merge_phenotype_abstracts:abstracts |
Phenotype_search_term |
merge_phenotype_abstracts:phenotype |
merge_dates:concatenated |
concat_abstract_ids:dates |
extractPMID:nodelist |
concat_abstract_ids:id |
merge_abstracts:concatenated |
concat_abstract_ids:abstract_text |
parametersXML_eSearch:output |
run_eSearch:parameters |
Fetch_Abstracts:abstracts |
merge_abstracts:stringlist |
concat_abstract_ids:output |
merge_abstract_ids:stringlist |
Fetch_Abstracts:pubmed_dates |
merge_dates:stringlist |
xpath:value |
extractPMID:xpath |
run_eSearch:parameters |
extractPMID:xml-text |
max_date:value |
parametersXML_eSearch:maxdate |
max_return:value |
parametersXML_eSearch:RetMax |
pubmed_database:value |
parametersXML_eSearch:db |
Phenotype_search_term |
parametersXML_eSearch:term |
min_date:value |
parametersXML_eSearch:mindate |
extractPMID:nodelist |
Fetch_Abstracts:pubmed_ids |
merge_phenotype_abstracts:output |
phenotype_abstracts |
