Significance Filter

Created: 2009-08-19 16:31:24

This workflow filters a given Ondex graph according to a level of significance set by the user. The result is a new Ondex graph. The parameters that can be used with this service are as follows:

graphId - the ID of the input Graph. outputGraphId - the ID of the output Graph (Optional). If no output graph is specified filtered items will be removed from the input graph. TargetAttributeName - Target AttributeName to filter for significance. Significance - A significance value to filter relations with. Default value is 15.0. Inverse - If set to true only relation smaller than Significance will be kept (Optional). Default value is false (boolean) AbsoluteValues - Absolute GDS values when testing for significance (Optional). Default value is false. (boolean) Remove_no_att - Remove elements without the attribute, if set to true (Optional). Default value is false. (boolean) ConceptMode - If true filters concepts, if false filters realtions (Optional). Default value is false. (boolean)

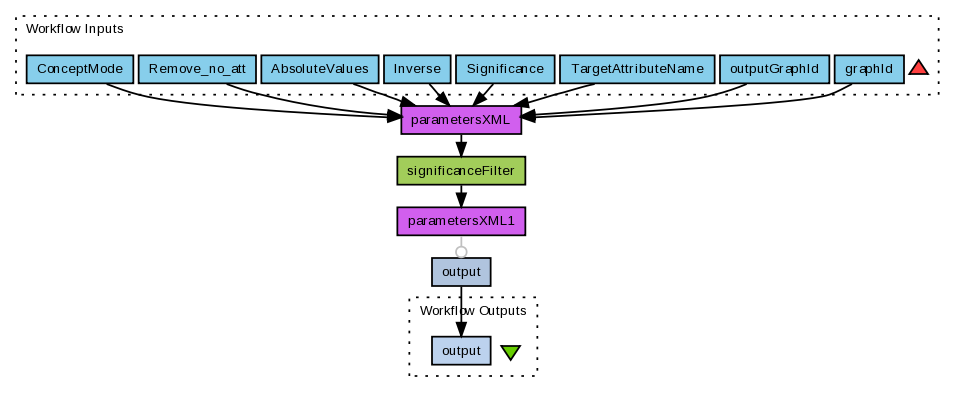

Preview

Download as scalable diagram (SVG)

Run

You do not have permission to run this workflow

Workflow Components

You do not have permission to see the internals of this workflow

Information Workflow Type

Taverna 1

Information Uploader

Paul Fisher

Information License

All versions of this Workflow are licensed under:

Information Version 1 (of 1)

Information Credits (1)

(People/Groups)

Paul Fisher

Information Attributions (0)

(Workflows/Files)

None

Information Tags (6)

Uploader tags

filter
|
graph
|
ondex
|
ovtk
|
oxl
|
significance

Log in to add Tags

Information Shared with Groups (1)

SabrOndexProject

Information Featured In Packs (0)

None

Log in to add to one of your Packs

Information Attributed By (0)

(Workflows/Files)

None

Information Favourited By (0)

No one

Information Statistics

1877 viewings

1 download

[ see breakdown ]

Citations (0)

None

Version History

In chronological order:

Significance Filter

Created by Paul Fisher on Wednesday 19 August 2009 16:31:25 (UTC)

Reviews (0)

No reviews yet

Be the first to review!

Comments (0)

View Timeline

No comments yet

Log in to make a comment
