Get ENSEMBL cross-references for UniProt IDs

Created: 2015-11-16 13:40:48

Download Workflow

This small workflow uses the PICR (http://www.ebi.ac.uk/Tools/picr/) WDSL Web Service to look up ENSEMBL (ENSP) cross-references for UniProt IDs. The input is a list of UniProt IDs and the output a corresponding list of ENSEMBL IDs. This instance of the workflow specifically uses the ENSEMBL_HUMAN database and taxonID 9606 (Homo sapiens).

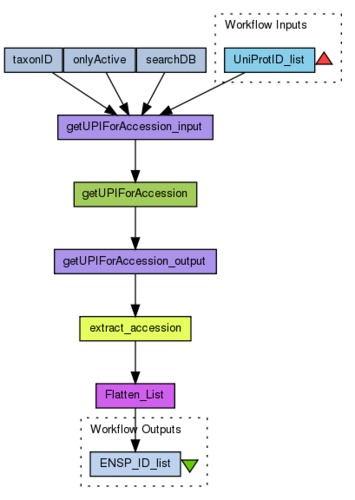

Preview

Download as scalable diagram (SVG)

Run

Run this Workflow in the Taverna Workbench...

Option 1:

Copy and paste this link into File > 'Open workflow location...'
http://myexperiment.org/workflows/4767/download?version=1
[ More Info Expand ]

Workflow Components

Authors (1)

Titles (1)

Descriptions (1)

Dependencies (0)

Inputs (1)

Name	Description
UniProtID_list	A list of UniProt identifiers

Processors (8)

Name	Type	Description
getUPIForAccession	wsdl	Wsdl http://www.ebi.ac.uk/Tools/picr/service?wsdl Wsdl Operation getUPIForAccession
getUPIForAccession_input	xmlsplitter
getUPIForAccession_output	xmlsplitter
taxonID	stringconstant	Value 9606
onlyActive	stringconstant	Value TRUE
searchDB	stringconstant	Value ENSEMBL_HUMAN
extract_accession	xpath	Xpath Expression /ns2:getUPIForAccessionReturn/default:identicalCrossReferences/default:accession
Flatten_List	localworker	Script flatten(inputs, outputs, depth) { for (i = inputs.iterator(); i.hasNext();) { element = i.next(); if (element instanceof Collection && depth > 0) { flatten(element, outputs, depth - 1); } else { outputs.add(element); } } } outputlist = new ArrayList(); flatten(inputlist, outputlist, 1);

Beanshells (0)

Outputs (1)

Name	Description
ENSP_ID_list

Datalinks (9)

Source	Sink
getUPIForAccession_input:output	getUPIForAccession:parameters
UniProtID_list	getUPIForAccession_input:accession
taxonID:value	getUPIForAccession_input:taxonId
searchDB:value	getUPIForAccession_input:searchDatabases
onlyActive:value	getUPIForAccession_input:onlyActive
getUPIForAccession:parameters	getUPIForAccession_output:input
getUPIForAccession_output:getUPIForAccessionReturn	extract_accession:xml_text
extract_accession:firstNode	Flatten_List:inputlist
Flatten_List:outputlist	ENSP_ID_list

Coordinations (0)

Information Workflow Type

Taverna 2

Information Uploader

Magnus Palmblad

Information License

All versions of this Workflow are licensed under:

Information Version 1 (of 1)

Information Credits (1)

(People/Groups)

Magnus Palmblad

Information Attributions (0)

(Workflows/Files)

None

Information Tags (5)

Uploader tags

Log in to add Tags

Information Shared with Groups (2)

Information Featured In Packs (0)

None

Log in to add to one of your Packs

Information Attributed By (0)

(Workflows/Files)

None

Information Favourited By (0)

No one

Information Statistics

1641 viewings

969 downloads

[ see breakdown ]

Citations (0)Version History

None

Reviews (0)

No reviews yet

Be the first to review!

Comments (1)

View Timeline

Log in to make a comment

Magnus Palmblad	Monday 16 November 2015 13:50:41 (UTC)
	As a comment - the PICR Web service currently (2015-11-16) does not work fully with the XML output splitters in Taverna.
