ENM resolution mix - multiple runs version

Created: 2014-11-13 15:20:55      Last updated: 2015-05-12 05:28:09

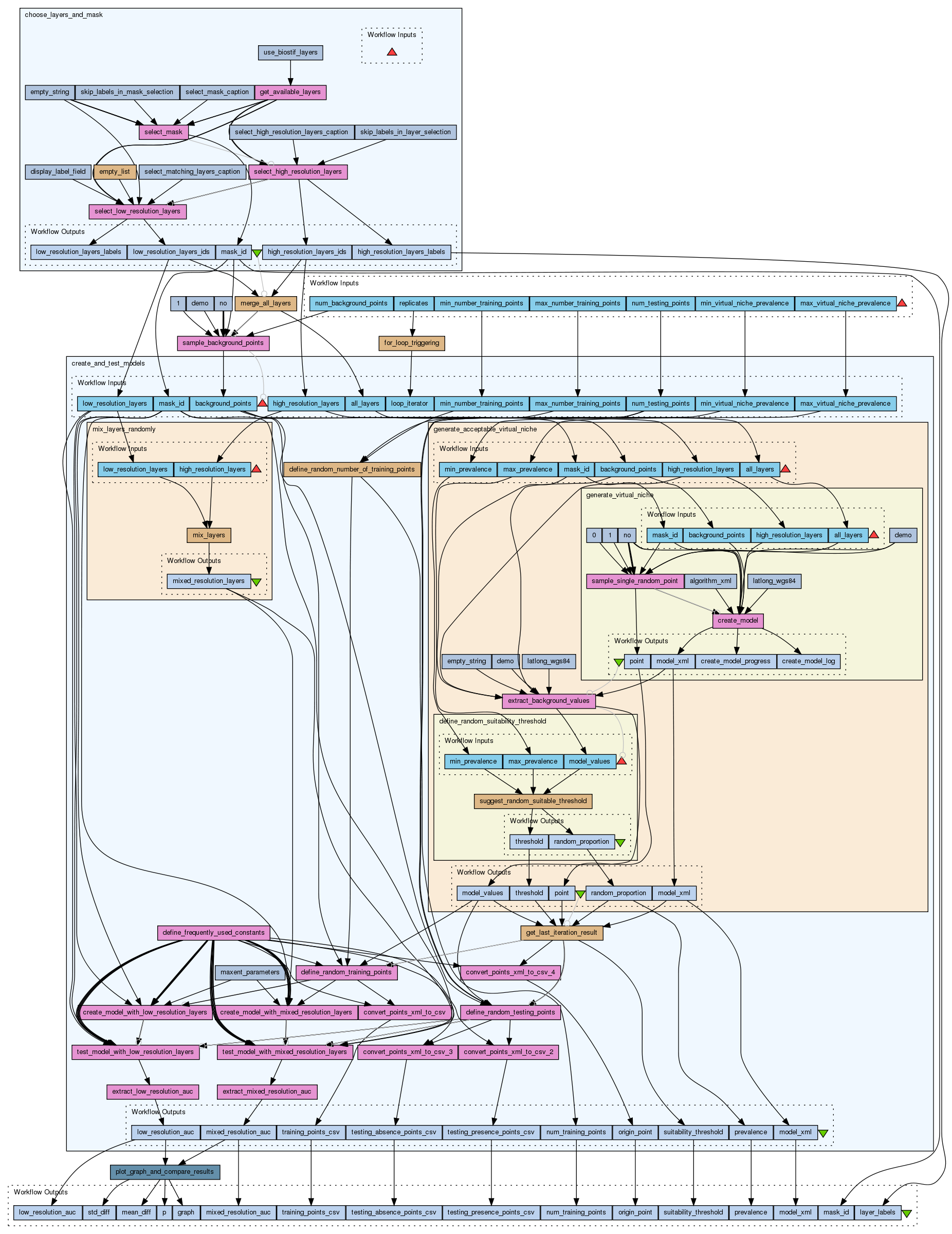

Multiple runs version of the workflow for comparing results of two kinds of ecological niche models: one using only low resolution layers and the other using a random mix of low and high resolution layers. Users select the study region and the environmental variables considered to be the main drivers of a virtual species niche. The workflow is all based on the ENM components, which use the openModeller Web Service (OMWS). After getting initial parameters from the user, the workflow generates a random virtual niche. A random threshold within a given prevalence range is then used to separate suitable from unsuitable areas, from where random training and testing points are sampled. Training points are used to generate the models and independent testing points are used for external tests measuring the AUC. All steps (except mask and environmental layer selection) are repeated a given number of times to check if one of the the two kinds of models performs significantly better than the other. A single-run version of this workflow including model projections is available here: http://www.myexperiment.org/workflows/4536

Information Preview

Information Run

Run this Workflow in the Taverna Workbench...

Option 1:

Copy and paste this link into File > 'Open workflow location...'
[ More InfoExpand ]

Information Workflow Components

Information Authors (1)
Information Titles (1)
Information Descriptions (1)
Information Dependencies (0)
Inputs (7)
Processors (9)
Beanshells (7)
Outputs (16)
Datalinks (40)
Coordinations (3)

Information Workflow Type

Taverna 2

Information License

All versions of this Workflow are licensed under:

Information Version 10 (latest) (of 10)

View version:

Information Credits (2)


Information Attributions (0)



Information Tags (0)


Log in to add Tags

Information Shared with Groups (1)

Information Featured In Packs (0)


Log in to add to one of your Packs

Information Attributed By (0)



Information Favourited By (0)

No one

Information Statistics


Citations (0)


Version History

In chronological order:

Reviews Reviews (0)

No reviews yet

Be the first to review!

Comments Comments (0)

No comments yet

Log in to make a comment

Workflow Other workflows that use similar services (0)

There are no workflows in myExperiment that use similar services to this Workflow.
