Variance matrix

Created: 2014-08-28 13:43:06

Download Workflow

This workflow estimates the variance matrix from a list of matrices.

This workflow has been created by the Biodiversity Virtual e-Laboratory (BioVeL http://www.biovel.eu/) project. BioVeL is funded by the EU’s Seventh Framework Program, grant no. 283359.

This workflow was created using and based on Package ‘popbio’ in R. (Stubben & Milligan 2007; Stubben, Milligan & Nantel 2011). ==================================================================================

Literature

Caswell, H. 2001. Matrix population models: Construction, analysis and interpretation, 2nd Edition. Sinauer Associates, Sunderland, Massachusetts.

Oostermeijer J.G.B., M.L. Brugman; E.R. de Boer; H.C.M. Den Nijs. 1996. Temporal and Spatial Variation in the Demography of Gentiana pneumonanthe, a Rare Perennial Herb. The Journal of Ecology, Vol. 84(2): 153-166.

Stubben, C & B. Milligan. 2007. Estimating and Analysing Demographic Models Using the popbio Package in R. Journal of Statistical Software 22 (11): 1-23

Stubben, C., B. Milligan, P. Nantel. 2011. Package ‘popbio’. Construction and analysis of matrix population models. Version 2.3.1

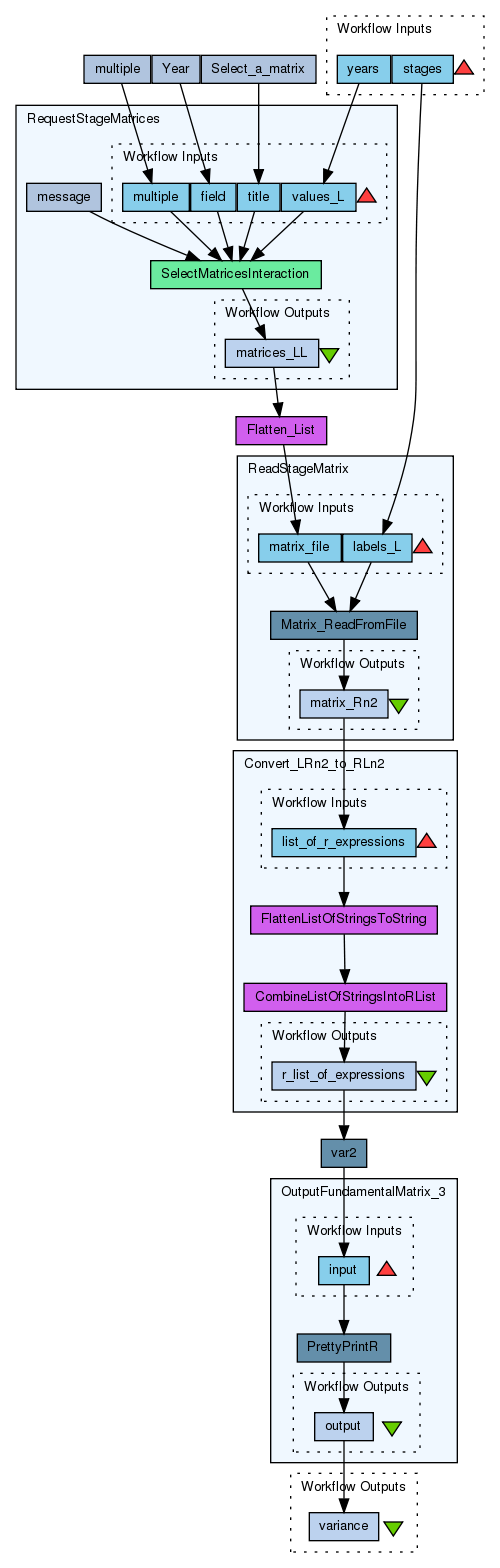

Preview

Download as scalable diagram (SVG)

Run

Run this Workflow in the Taverna Workbench...

Option 1:

Copy and paste this link into File > 'Open workflow location...'
http://myexperiment.org/workflows/4443/download?version=1
[ More Info Expand ]

Workflow Components

Authors (1)

Titles (1)

Descriptions (1)

Dependencies (0)

Inputs (2)

Name	Description
stages	The names of the stages or categories of the input matrix. In the following example, the matrix has 5 stages. The stages of this matrix are called: 1) Seedlings S 2) Juveniles J 3) Vegetative V 4) Reproductive individuals G 5) Dormant plants D
years	Each year represents a matrix and therefore characterizes a period of transition. In this example, there are 6 matrices that represent 6 years e.g.: 1987 = matrix, interval between 1987 and 1988 and 1988= matrix, interval between 1988 and 1989 etc.

Processors (9)

Name	Type	Description
RequestStageMatrices	workflow
ReadStageMatrix	workflow
Flatten_List	localworker	Script flatten(inputs, outputs, depth) { for (i = inputs.iterator(); i.hasNext();) { element = i.next(); if (element instanceof Collection && depth > 0) { flatten(element, outputs, depth - 1); } else { outputs.add(element); } } } outputlist = new ArrayList(); flatten(inputlist, outputlist, 1);
Convert_LRn2_to_RLn2	workflow
var2	rshell	Script library(popbio) v<-var2(matrices) R Server localhost:6311
multiple	stringconstant	Value false
Year	stringconstant	Value Year
OutputFundamentalMatrix_3	workflow
Select_a_matrix	stringconstant	Value Select a matrix

Beanshells (0)

Outputs (1)

Name	Description
variance	the calculated mean matrix from a list of matrices

Datalinks (11)

Source	Sink
years	RequestStageMatrices:values_L
multiple:value	RequestStageMatrices:multiple
Year:value	RequestStageMatrices:field
Select_a_matrix:value	RequestStageMatrices:title
Flatten_List:outputlist	ReadStageMatrix:matrix_file
stages	ReadStageMatrix:labels_L
RequestStageMatrices:matrices_LL	Flatten_List:inputlist
ReadStageMatrix:matrix_Rn2	Convert_LRn2_to_RLn2:list_of_r_expressions
Convert_LRn2_to_RLn2:r_list_of_expressions	var2:matrices
var2:v	OutputFundamentalMatrix_3:input
OutputFundamentalMatrix_3:output	variance
