configure_external_test
Created: 2013-12-24 12:23:52
Last updated: 2015-04-04 20:31:11
Displays an interface allowing configuration of external test. Currently can be used to skip external test or run a cross validation procedure. In the later case, it is possible to specify the number of replicates, if AUC should be calculated, if confusion matrix should be calculated (using either a fixed threshold or lpt - lowest precision threshold).

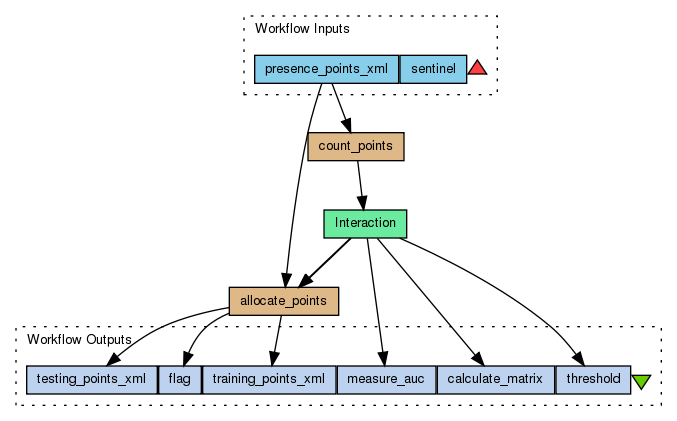

Preview
Run
Run this Workflow in the Taverna Workbench...
Workflow Components
Authors (1)
Titles (1)
Configure external tests. |
Descriptions (1)
Interact with the user to get external test parameters, asking if the user wants to perform cross validation, which value must be measured (AUC and/or omission) and the number of replicates to be used. |
Dependencies (0)
Inputs (2)
Name |
Description |
sentinel |
Port used to control activation of this workflow. This will typically be connected to the output of an interaction that may be cancelled (for example the "answer" port of "show_test_results").
|
presence_points_xml |
Species occurrence points in openModeller XML format. They are assumed to be presence points.
|
Processors (3)
Name |
Type |
Description |
Interaction |
interaction |
|
allocate_points |
beanshell |
Scriptimport java.util.ArrayList;
import java.io.StringReader;
import java.io.BufferedReader;
ArrayList training_points = new ArrayList();
ArrayList testing_points = new ArrayList();
ArrayList flag = new ArrayList();
String xval_test = "xval";
if (choice.equals(xval_test)) {
flag.add(1);
}
else {
return;
}
BufferedReader reader = new BufferedReader(new StringReader(all_points));
ArrayList my_all_points = new ArrayList();
for (String line = reader.readLine(); line != null; line = reader.readLine()) {
my_all_points.add(line);
}
long seed = System.nanoTime();
Collections.shuffle(my_all_points, new Random(seed));
int num_folds = Integer.parseInt(folds);
int num_points = my_all_points.size();
for (int k = 0; k < num_folds; ++k) {
StringBuilder creation_builder = new StringBuilder();
StringBuilder testing_builder = new StringBuilder();
for (int i = 0; i < num_points; ++i) {
if (i % num_folds == k) {
testing_builder.append(my_all_points.get(i));
} else {
creation_builder.append(my_all_points.get(i));
}
}
training_points.add( creation_builder.toString() );
testing_points.add( testing_builder.toString() );
} |
count_points |
beanshell |
Scriptimport java.io.StringReader;
import java.io.BufferedReader;
BufferedReader reader = new BufferedReader(new StringReader(all_points));
int num_points = 0;
for (String line = reader.readLine(); line != null; line = reader.readLine()) {
++num_points;
}
|
Beanshells (2)
Name |
Description |
Inputs |
Outputs |
allocate_points |
|
all_points
folds
choice
|
training_points
testing_points
flag
|
count_points |
|
all_points
|
num_points
|
Outputs (6)
Name |
Description |
flag |
Flag indicating if cross-validation should be performed. It contains a list with a single element if yes, otherwise an empty list. This can be used to control execution of subsequent workflows.
|
testing_points_xml |
List of sets of XML points to be used in model testing. The size of the list is the number of chosen replicates.
|
training_points_xml |
List of sets of XML points to be used in model training. The size of the list is the number of chosen replicates.
|
measure_auc |
Indicates if AUC should be calculated in external tests. "yes" or "no".
|
calculate_matrix |
Indicates if confusion matrix should be calculated in external tests. "yes" or "no".
|
threshold |
Threshold to be used for threshold-dependent tests. It can be a fixed value or "lpt".
|
Datalinks (11)
Source |
Sink |
count_points:num_points |
Interaction:num_points |
presence_points_xml |
allocate_points:all_points |
Interaction:choice |
allocate_points:choice |
Interaction:replicates |
allocate_points:folds |
presence_points_xml |
count_points:all_points |
allocate_points:flag |
flag |
allocate_points:testing_points |
testing_points_xml |
allocate_points:training_points |
training_points_xml |
Interaction:measure_auc |
measure_auc |
Interaction:calculate_matrix |
calculate_matrix |
Interaction:threshold |
threshold |
