Simple executable plan example

Created: 2012-06-29 15:48:43

Download Workflow

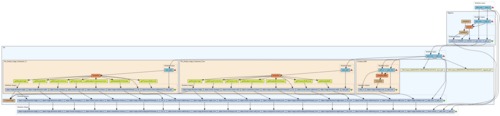

A simple executable plan containing a migration action component and a QA component. The migration action uses imagemagick convert. The QA component consists of two characterisation components (fits) and another QA components (imagemagick compare).

Preview

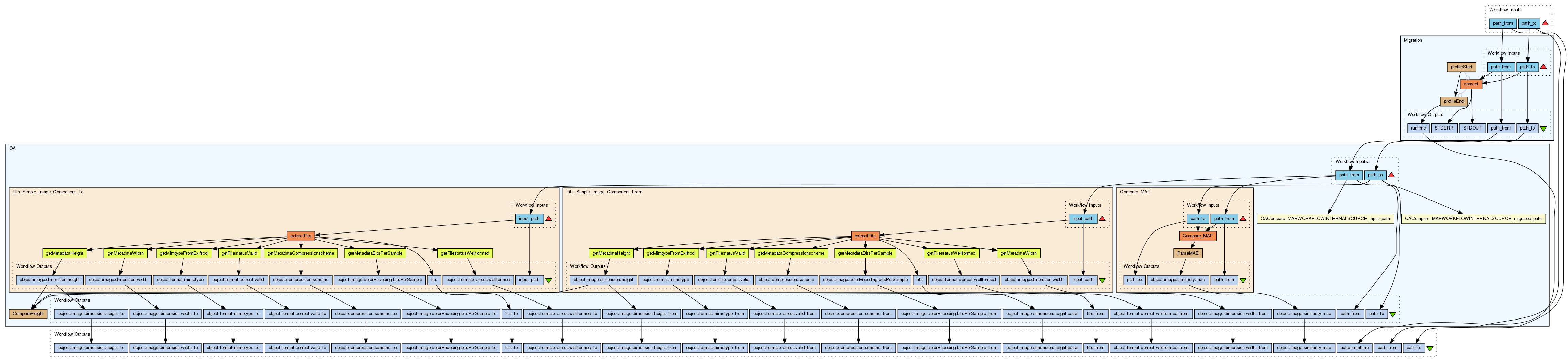

Download as scalable diagram (SVG)

Run

Run this Workflow in the Taverna Workbench...

Option 1:

Copy and paste this link into File > 'Open workflow location...'
http://myexperiment.org/workflows/2981/download?version=1
[ More Info Expand ]

Workflow Components

Authors (1)

Titles (1)

Descriptions (1)

Dependencies (0)

Inputs (2)

Name	Description
path_from
path_to

Processors (2)

Name	Type	Description
Migration	workflow	Migration component - Convert by target path
QA	workflow	QA component

Beanshells (4)

Name	Description	Inputs	Outputs
ParseMAE		maeString	mae
CompareHeight		input_height migrated_height	imageHeightEqual
profileStart	Start node fore simple runtime measurement.		startTimestamp
profileEnd	End node fore simple runtime measurement.	startTimestamp	runtime

Outputs (21)

Name	Description
object.image.similarity.mae
object.image.dimension.height.equal
action.runtime
path_from
path_to
object.image.dimension.width_to
object.format.correct.wellformed_to
fits_to
object.image.colorEncoding.bitsPerSample_to
object.compression.scheme_to
object.format.correct.valid_to
object.format.mimetype_to
object.image.dimension.height_to
object.format.correct.wellformed_from
fits_from
object.image.colorEncoding.bitsPerSample_from
object.compression.scheme_from
object.format.mimetype_from
object.image.dimension.height_from
object.image.dimension.width_from
object.format.correct.valid_from

Datalinks (25)

Source	Sink
path_from	Migration:path_from
path_to	Migration:path_to
Migration:path_to	QA:path_to
Migration:path_from	QA:path_from
QA:object.image.similarity.mae	object.image.similarity.mae
QA:object.image.dimension.height.equal	object.image.dimension.height.equal
Migration:runtime	action.runtime
path_from	path_from
path_to	path_to
QA:object.image.dimension.width_to	object.image.dimension.width_to
QA:object.format.correct.wellformed_to	object.format.correct.wellformed_to
QA:fits_to	fits_to
QA:object.image.colorEncoding.bitsPerSample_to	object.image.colorEncoding.bitsPerSample_to
QA:object.compression.scheme_to	object.compression.scheme_to
QA:object.format.correct.valid_to	object.format.correct.valid_to
QA:object.format.mimetype_to	object.format.mimetype_to
QA:object.image.dimension.height_to	object.image.dimension.height_to
QA:object.format.correct.wellformed_from	object.format.correct.wellformed_from
QA:fits_from	fits_from
QA:object.image.colorEncoding.bitsPerSample_from	object.image.colorEncoding.bitsPerSample_from
QA:object.compression.scheme_from	object.compression.scheme_from
QA:object.format.mimetype_from	object.format.mimetype_from
QA:object.image.dimension.height_from	object.image.dimension.height_from
QA:object.image.dimension.width_from	object.image.dimension.width_from
QA:object.format.correct.valid_from	object.format.correct.valid_from
