StringBuilder sb = new StringBuilder();

sb.append("http://chart.apis.google.com/chart?");

/**  Axis ranges**/
sb.append("chxr=0,1985,2005");
/** Axis label styles. **/
sb.append("&chxs=0,6B687A,13,0.5,l,676767|1,676767,13,0,l,676767");
/** Visible axes **/
sb.append("&chxt=x,y,x,y&chxl=2:||Year||3:||Percentage||");
/** Chart size **/
sb.append("&chs=660x450");
/** Chart type **/
sb.append("&cht=lxy");
/** Chart colors **/
sb.append("&chco=AA0033,0000FF");
/** Scale for text format with custom range. **/
sb.append("&chds=1985,2005,0,100,1985,2005,0,100");
/** Chart data string. NB: complicated. **/
sb.append("&chd=t:");
sb.append(literacyDataYears);
sb.append("|");
sb.append(literacyData);
sb.append("|");
sb.append(lowest20DataYears);
sb.append("|");
sb.append(lowest20Data);
/** Chart Legend **/
sb.append("&chdl=Literacy+Rates|Income+Share");
/** Grid lines **/
sb.append("&chg=5,5,2,2");
/** Line styles **/
sb.append("&chls=1,2,2|1,3,4");
/** Line markers **/
sb.append("&chm=B,EFEFEFC6,0,0,0");
/** Chart title **/
sb.append("&chtt=Literacy+Rates+and+Income+Share+of+Lowest+20%+(");
sb.append(countryName);
sb.append(")");

graphURL = sb.toString();

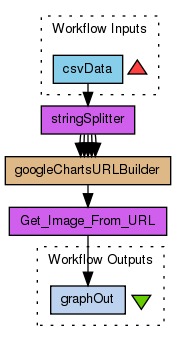

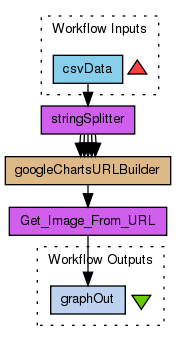

Source	Sink
stringSplitter:incomeYears	googleChartsURLBuilder:lowest20DataYears
stringSplitter:literacyData	googleChartsURLBuilder:literacyData
stringSplitter:literacyYears	googleChartsURLBuilder:literacyDataYears
stringSplitter:incomeData	googleChartsURLBuilder:lowest20Data
stringSplitter:countryName	googleChartsURLBuilder:countryName
googleChartsURLBuilder:graphURL	Get_Image_From_URL:url
csvData	stringSplitter:string
Get_Image_From_URL:image	graphOut
