Nucleotide_InterProScan

Created: 2008-10-26 21:10:09 Last updated: 2011-04-01 08:54:21

Download Workflow

Run InterProScan using a nucleotide sequence as input.

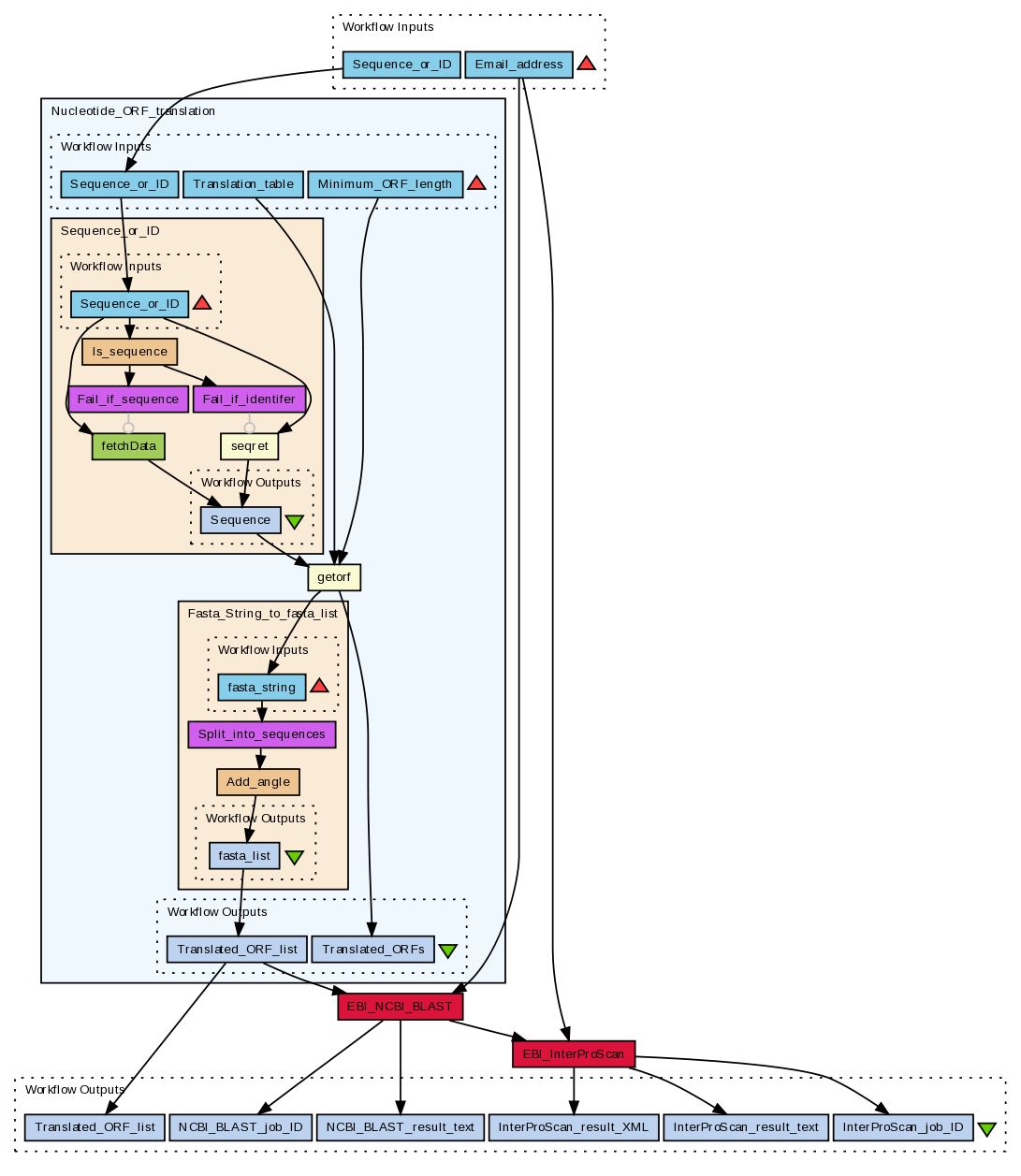

Preview

Run

Run this Workflow in the Taverna Workbench...

Option 1:

Copy and paste this link into File > 'Open workflow location...'
http://myexperiment.org/workflows/229/download?version=1
[ More Info Expand ]

Workflow Components

Inputs (2)

Name	Description
Sequence_or_ID	Input nucleotide sequence. Either the actual sequence (fasta format) or an entry identifier in database:identifer format (e.g. embl:x01153).
Email_address	User e-mail address.

Processors (3)

Name	Type	Description
Nucleotide_ORF_translation	workflow	From a nucleotide sequence get the protein translations of the open reading frames (stop to stop) that are longer than a specifed minimum length. EMBOSS getorf is used to find the ORFs and perform the translations. The getorf tool is accessed via Soaplab (see http://www.ebi.ac.uk/Tools/webservices/soaplab/overview).
EBI_NCBI_BLAST	workflow
EBI_InterProScan	workflow

Beanshells (2)

Name	Description	Inputs	Outputs
Add_angle	For sequences where the angle bracket (>), denoting the start of the fasta formated sequence, was removed during the split, prepend it.	stripped_fasta	full_fasta
Is_sequence	Return true if the input is a sequence or false if the input is a sequence identifer (e.g. uniprot:wap_rat).	sequence	is_sequence

Outputs (6)

Name	Description
InterProScan_result_text	InterProScan result in tab-delimited format.
InterProScan_result_XML	InterProScan result in XML format.
Translated_ORF_list
InterProScan_job_ID
NCBI_BLAST_job_ID
NCBI_BLAST_result_text

Links (11)

Source	Sink
Email_address	EBI_InterProScan:Email_address
Email_address	EBI_NCBI_BLAST:Email_address
Sequence_or_ID	Nucleotide_ORF_translation:Sequence_or_ID
EBI_InterProScan:InterProScan_XML_result	InterProScan_result_XML
EBI_InterProScan:InterProScan_text_result	InterProScan_result_text
EBI_InterProScan:Job_ID	InterProScan_job_ID
EBI_NCBI_BLAST:Sequence	EBI_InterProScan:Sequence_or_ID
EBI_NCBI_BLAST:Job_ID	NCBI_BLAST_job_ID
EBI_NCBI_BLAST:Text_result	NCBI_BLAST_result_text
Nucleotide_ORF_translation:Translated_ORF_list	EBI_NCBI_BLAST:Sequence_or_ID
Nucleotide_ORF_translation:Translated_ORF_list	Translated_ORF_list

Coordinations (0)

Information Workflow Type

Taverna 1

Information Uploader

Hamish McWilliam

Information License

All versions of this Workflow are licensed under:

Information Version 1 (earliest) (of 4)

Information Credits (1)

(People/Groups)

Hamish McWilliam

Information Attributions (5)

(Workflows/Files)

Information Tags (11)

Uploader tags

Log in to add Tags

Information Shared with Groups (0)

None

Information Featured In Packs (1)

Private pack

Log in to add to one of your Packs

Information Attributed By (1)

(Workflows/Files)

Nucleotide InterProScan for the BioExtract Server

Information Favourited By (0)

No one

Information Statistics

8382 viewings

3644 downloads

[ see breakdown ]

Citations (0)

None

Version History

In chronological order:

Nucleotide_InterProScan

Created by Hamish McWilliam on Friday 06 June 2008 21:45:09 (UTC)

Last edited by Hamish McWilliam on Friday 06 June 2008 21:45:10 (UTC)
Nucleotide_InterProScan

Created by Hamish McWilliam on Friday 06 June 2008 21:45:09 (UTC)

Last edited by Hamish McWilliam on Friday 06 June 2008 21:47:13 (UTC)

Revision comment:

With the nested workflows...
Nucleotide_InterProScan

Created by Hamish McWilliam on Friday 06 June 2008 21:45:09 (UTC)

Last edited by Hamish McWilliam on Saturday 07 June 2008 09:06:50 (UTC)

Revision comment:

Tweak BLAST filtering rules. Add additional metadata descriptions.
Nucleotide_InterProScan

Created by Hamish McWilliam on Sunday 26 October 2008 21:10:09 (UTC)

Last edited by Hamish McWilliam on Friday 01 April 2011 08:54:21 (UTC)

Revision comment:

Update for changes to poll output names in the WSInterProScan service. Also add GFF output from InterProScan.

Reviews (0)

No reviews yet

Be the first to review!

Comments (0)

View Timeline

No comments yet

Log in to make a comment
