EBI FASTA with prompts

Created: 2008-05-30 23:53:16 Last updated: 2010-12-06 10:53:23

Download Workflow

Run a FASTA analysis using the EBI’s WSFasta service (see http://www.ebi.ac.uk/Tools/webservices/services/fasta). This workflow wraps the EBI_FASTA workflow to provide a basic user interface which prompts for the required inputs: sequence, database, FASTA program and user e-mail. Other parameters (e.g. matrix, gap penalties, etc.) are allowed to default.

Note: the WSFasta service used by this workflow is deprecated as of 21st September 2010 and should not be used in any new development. This service is will be retired during 2011. EBI's replacement FASTA services (REST or SOAP) should be used instead.

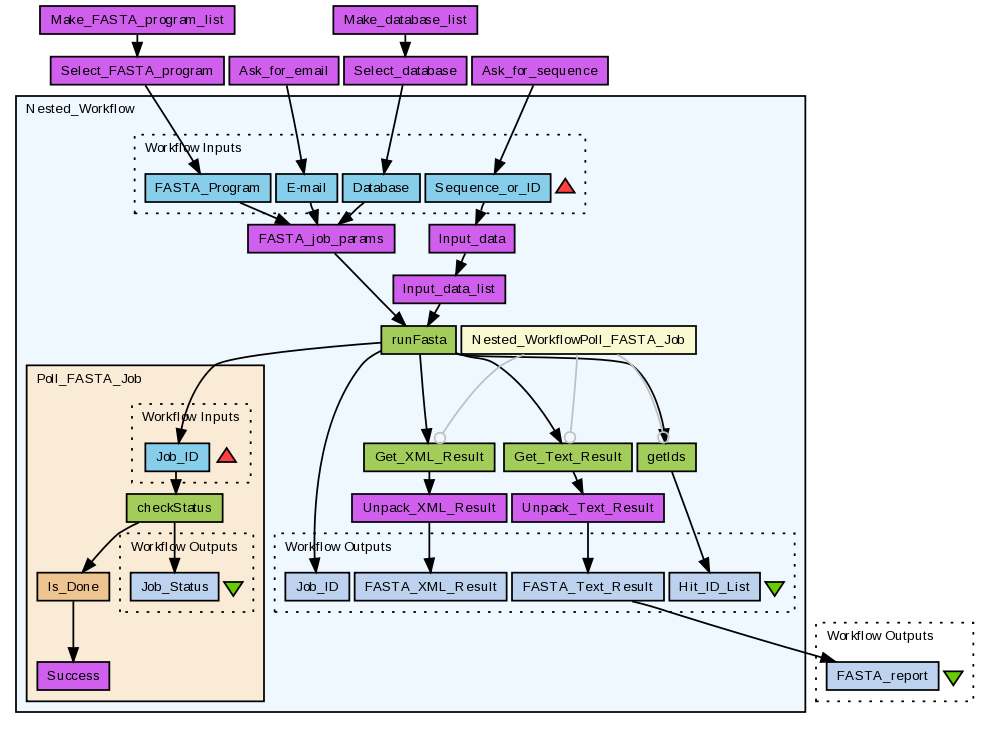

Preview

Download as scalable diagram (SVG)

Run

Run this Workflow in the Taverna Workbench...

Option 1:

Copy and paste this link into File > 'Open workflow location...'
http://myexperiment.org/workflows/200/download?version=3
[ More Info Expand ]

Workflow Components

Inputs (0)

Processors (7)

Name	Type	Description
Make_database_list	local	List of available databases.
Select_database	local	Select the required database.
Select_FASTA_program	local	Select the required FASTA program.
Make_FASTA_program_list	local	List of available FASTA programs.
Ask_for_email	local	Ask for the user's e-mail address.
Ask_for_sequence	local	Ask for the query sequence, either as a sequence identifier in database:identifer format (e.g. uniprot:wap_rat) or the actual sequence (fasta format recommended).
Nested_Workflow	workflow

Beanshells (1)

Name	Description	Inputs	Outputs
Is_Done		job_status	is_done

Outputs (1)

Name	Description
FASTA_report	Plain text FASTA report.

Links (7)

Source	Sink
Ask_for_email:answer	Nested_Workflow:E-mail
Ask_for_sequence:answer	Nested_Workflow:Sequence_or_ID
Make_FASTA_program_list:split	Select_FASTA_program:valueList
Make_database_list:split	Select_database:valueList
Nested_Workflow:FASTA_Text_Result	FASTA_report
Select_FASTA_program:answer	Nested_Workflow:FASTA_Program
Select_database:answer	Nested_Workflow:Database

Coordinations (0)

Information Workflow Type

Taverna 1

Information Uploader

Hamish McWilliam

Information License

All versions of this Workflow are licensed under:

Information Version 3 (latest) (of 3)

Information Credits (1)

(People/Groups)

Hamish McWilliam

Information Attributions (1)

(Workflows/Files)

EBI_FASTA

Information Tags (7)

Uploader tags

Log in to add Tags

Information Shared with Groups (0)

None

Information Featured In Packs (1)

Private pack

Log in to add to one of your Packs

Information Attributed By (0)

(Workflows/Files)

None

Information Favourited By (0)

No one

Information Statistics

4155 viewings

3090 downloads

[ see breakdown ]

Citations (0)

None

Version History

In chronological order:

EBI FASTA with prompts

Created by Hamish McWilliam on Friday 30 May 2008 23:53:16 (UTC)
EBI FASTA with prompts

Created by Hamish McWilliam on Friday 30 May 2008 23:53:16 (UTC)

Last edited by Hamish McWilliam on Saturday 31 May 2008 00:14:20 (UTC)

Revision comment:

Fix disappearing nested workflow.
EBI FASTA with prompts

Created by Hamish McWilliam on Friday 30 May 2008 23:53:16 (UTC)

Last edited by Hamish McWilliam on Monday 06 December 2010 10:53:23 (UTC)

Revision comment:

Reviews (0)

No reviews yet

Be the first to review!

Comments (0)

View Timeline

No comments yet

Log in to make a comment
