EBI_NCBI_BLAST

Created: 2011-01-17 12:51:58 Last updated: 2013-05-30 11:51:59

Download Workflow

This workflow performs an NCBI blast at the EBI. It uses the new EBI services, which are asynchronous and require looping over the nested workflow (Status) until the workflow has finished. Many of the EBI services now work in this way, so you can use this workflow as an example of the invocation pattern and looping configuration.

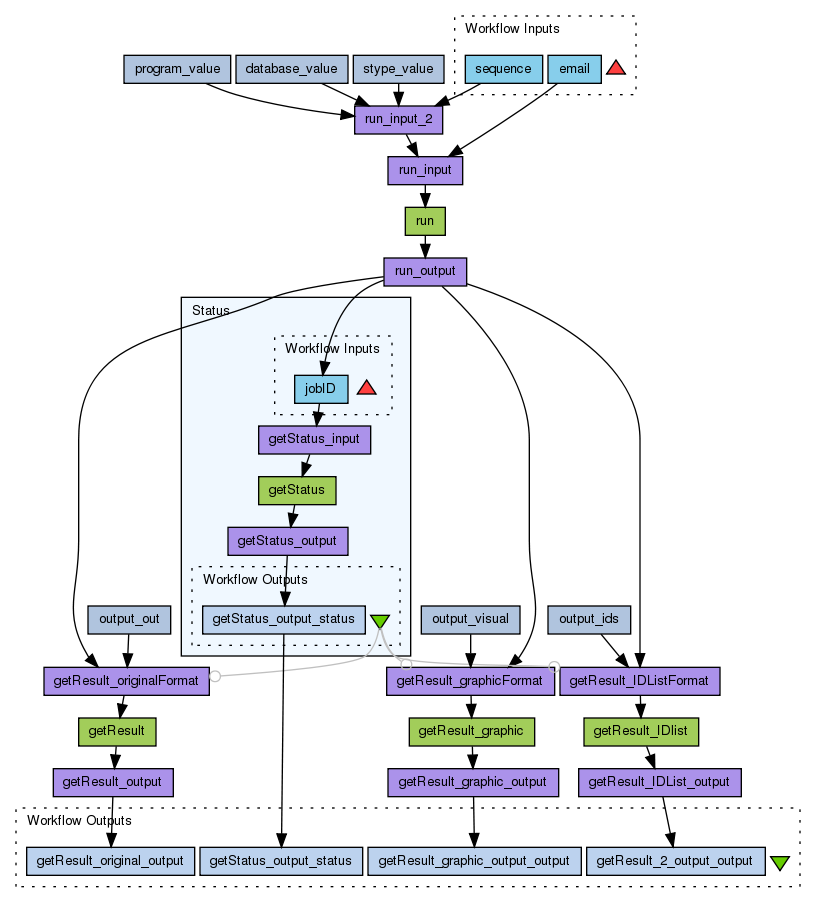

Preview

Download as scalable diagram (SVG)

Run

Run this Workflow in the Taverna Workbench...

Option 1:

Copy and paste this link into File > 'Open workflow location...'
http://myexperiment.org/workflows/1765/download?version=1
[ More Info Expand ]

Workflow Components

Authors (2)

Titles (1)

Descriptions (1)

Dependencies (0)

Inputs (2)

Name	Description
sequence	your email address please provide a valid email address to run this workflow Query seqeunce. Either the actual sequence (fasta format recommended) or a database identifer in database:identifier format (e.g. uniprot:wap_rat).
email	Your email address

Processors (20)

Name	Type	Description
run	wsdl	Wsdl http://www.ebi.ac.uk/Tools/services/soap/ncbiblast?wsdl Wsdl Operation run
run_input	xmlsplitter
run_output	xmlsplitter
run_input_2	xmlsplitter
Status	workflow
program_value	stringconstant	Value blastp
database_value	stringconstant	Value uniprotkb
stype_value	stringconstant	Value protein
getResult	wsdl	Wsdl http://www.ebi.ac.uk/Tools/services/soap/ncbiblast?wsdl Wsdl Operation getResult
getResult_originalFormat	xmlsplitter
getResult_output	xmlsplitter
output_out	stringconstant	Value out
getResult_graphic	wsdl	Wsdl http://www.ebi.ac.uk/Tools/services/soap/ncbiblast?wsdl Wsdl Operation getResult
getResult_graphicFormat	xmlsplitter
getResult_graphic_output	xmlsplitter
output_visual	stringconstant	Value visual-png
getResult_IDlist	wsdl	Wsdl http://www.ebi.ac.uk/Tools/services/soap/ncbiblast?wsdl Wsdl Operation getResult
getResult_IDListFormat	xmlsplitter
getResult_IDList_output	xmlsplitter
output_ids	stringconstant	Value ids

Beanshells (0)

Outputs (4)

Name	Description
getStatus_output_status
getResult_original_output
getResult_graphic_output_output
getResult_2_output_output

Datalinks (25)

Source	Sink
run_input:output	run:parameters
run_input_2:output	run_input:parameters
email	run_input:email
run:parameters	run_output:input
sequence	run_input_2:sequence
program_value:value	run_input_2:program
database_value:value	run_input_2:database
stype_value:value	run_input_2:stype
run_output:jobId	Status:jobID
getResult_originalFormat:output	getResult:parameters
run_output:jobId	getResult_originalFormat:jobId
output_out:value	getResult_originalFormat:type
getResult:parameters	getResult_output:input
getResult_graphicFormat:output	getResult_graphic:parameters
run_output:jobId	getResult_graphicFormat:jobId
output_visual:value	getResult_graphicFormat:type
getResult_graphic:parameters	getResult_graphic_output:input
getResult_IDListFormat:output	getResult_IDlist:parameters
run_output:jobId	getResult_IDListFormat:jobId
output_ids:value	getResult_IDListFormat:type
getResult_IDlist:parameters	getResult_IDList_output:input
Status:getStatus_output_status	getStatus_output_status
getResult_output:output	getResult_original_output
getResult_graphic_output:output	getResult_graphic_output_output
getResult_IDList_output:output	getResult_2_output_output

Coordinations (3)

Controller	Target
Status	getResult_IDListFormat
Status	getResult_originalFormat
Status	getResult_graphicFormat
