InterProScan (SOAP)

Created: 2010-12-03 08:20:21 Last updated: 2013-03-28 12:46:15

Download Workflow

Perform an InterProScan search using the EMBL-EBIâ€™s InterProScan (SOAP) service (see http://www.ebi.ac.uk/Tools/webservices/services/pfa/iprscan_soap). The query sequence to use is the input, the other parameters for the search are allowed to default.

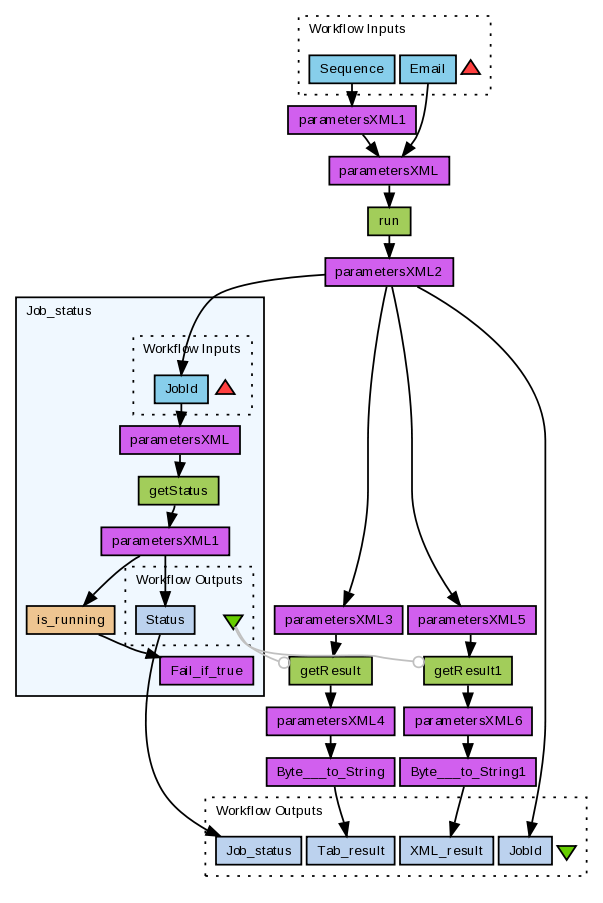

Preview

Download as scalable diagram (SVG)

Run

Run this Workflow in the Taverna Workbench...

Option 1:

Copy and paste this link into File > 'Open workflow location...'
http://myexperiment.org/workflows/1697/download?version=1
[ More Info Expand ]

Workflow Components

Inputs (2)

Name	Description
Email	Valid e-mail address for submission.
Sequence	Query protein sequence to be processed by InterProScan. Can be either a sequence in any common format (fasta format recommended) or a database entry identifier in DB:ID format (e.g. UNIPROT:WAP_RAT).

Processors (13)

Name	Type	Description
run	arbitrarywsdl	Submit an analysis job
parametersXML	local
parametersXML1	local
parametersXML2	local
getResult	arbitrarywsdl	Get a job result formatted using a particular renderer
parametersXML3	local
parametersXML4	local
Byte___to_String	local
Byte___to_String1	local
getResult1	arbitrarywsdl	Get a job result formatted using a particular renderer
parametersXML5	local
parametersXML6	local
Job_status	workflow

Beanshells (1)

Name	Description	Inputs	Outputs
is_running		status	is_running

Outputs (4)

Name	Description
JobId	Job identifier for InterProScan job.
Job_status	Job status. Indicates if job completed successfully or failed, see http://www.ebi.ac.uk/Tools/webservices/tutorials/01_intro#jdispatcher.
Tab_result	Plain text tab-delimited InterProScan result.
XML_result	XML InterProScan result.

Links (18)

Source	Sink
Email	parametersXML:email
Sequence	parametersXML1:sequence
Byte___to_String1:string	XML_result
Byte___to_String:string	Tab_result
Job_status:Status	Job_status
getResult1:parameters	parametersXML6:input
getResult:parameters	parametersXML4:input
parametersXML1:output	parametersXML:parameters
parametersXML2:jobId	Job_status:JobId
parametersXML2:jobId	parametersXML3:jobId
parametersXML2:jobId	parametersXML5:jobId
parametersXML3:output	getResult:parameters
parametersXML4:output	Byte___to_String:bytes
parametersXML5:output	getResult1:parameters
parametersXML6:output	Byte___to_String1:bytes
parametersXML2:jobId	JobId
parametersXML:output	run:parameters
run:parameters	parametersXML2:input
