InterProScan (SOAP)

Created: 2010-12-03 07:41:47 Last updated: 2013-03-28 12:45:59

Download Workflow

Perform an InterProScan search using the EMBL-EBIâ€™s InterProScan (SOAP) service (see http://www.ebi.ac.uk/Tools/webservices/services/pfa/iprscan_soap). The query sequence to use is the input, the other parameters for the search are allowed to default.

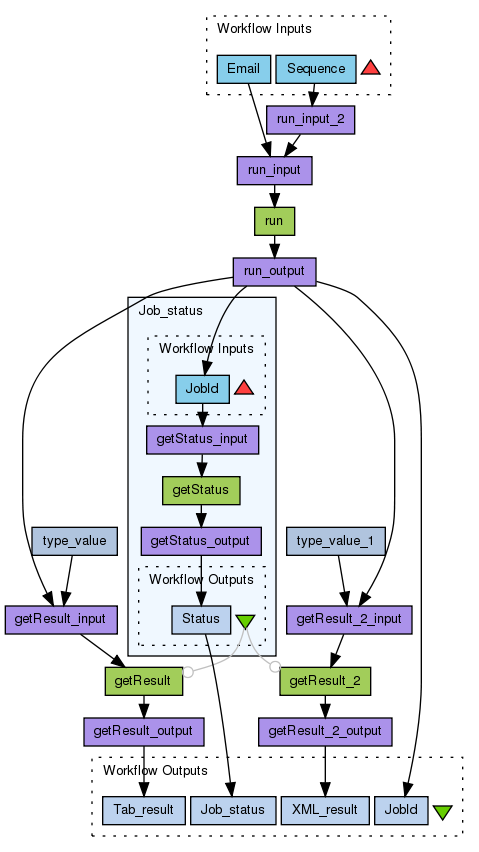

Preview

Download as scalable diagram (SVG)

Run

Run this Workflow in the Taverna Workbench...

Option 1:

Copy and paste this link into File > 'Open workflow location...'
http://myexperiment.org/workflows/1696/download?version=1
[ More Info Expand ]

Workflow Components

Authors (1)

Titles (1)

Descriptions (1)

Dependencies (0)

Inputs (2)

Name	Description
Email	Valid e-mail address for submission.
Sequence	Query protein sequence to be processed by InterProScan. Can be either sequence in any common format (fasta recommended) or an entry identifier in DB:ID format.

Processors (13)

Name	Type	Description
run	wsdl	Wsdl http://www.ebi.ac.uk/Tools/services/soap/iprscan?wsdl Wsdl Operation run
run_input	xmlsplitter
run_output	xmlsplitter
run_input_2	xmlsplitter
getResult	wsdl	Wsdl http://www.ebi.ac.uk/Tools/services/soap/iprscan?wsdl Wsdl Operation getResult
getResult_input	xmlsplitter
getResult_output	xmlsplitter
type_value	stringconstant	Value out
Job_status	workflow
getResult_2	wsdl	Wsdl http://www.ebi.ac.uk/Tools/services/soap/iprscan?wsdl Wsdl Operation getResult
getResult_2_input	xmlsplitter
getResult_2_output	xmlsplitter
type_value_1	stringconstant	Value xml

Beanshells (0)

Outputs (4)

Name	Description
JobId	Identifier for the job.
Job_status	Status of the job. Indicates if the job completed successfully or failed.
Tab_result	Plain text, tab-delimited output.
XML_result	XML format output.

Datalinks (18)

Source	Sink
run_input:output	run:parameters
Email	run_input:email
run_input_2:output	run_input:parameters
run:parameters	run_output:input
Sequence	run_input_2:sequence
getResult_input:output	getResult:parameters
type_value:value	getResult_input:type
run_output:jobId	getResult_input:jobId
getResult:parameters	getResult_output:input
run_output:jobId	Job_status:JobId
getResult_2_input:output	getResult_2:parameters
run_output:jobId	getResult_2_input:jobId
type_value_1:value	getResult_2_input:type
getResult_2:parameters	getResult_2_output:input
run_output:jobId	JobId
Job_status:Status	Job_status
getResult_output:output	Tab_result
getResult_2_output:output	XML_result
