Compare two genomes for similarity
Created: 2010-03-17 11:01:09
Last updated: 2010-03-17 11:05:00
The workflow takes as input two nucleotide/protein sequences in FastA format, requests a minimum percentage similarity threshold and then checks this against the similarity of the two sequences as determined by the Needleman-Wunsch global alignment.
Preview
Run
Run this Workflow in the Taverna Workbench...

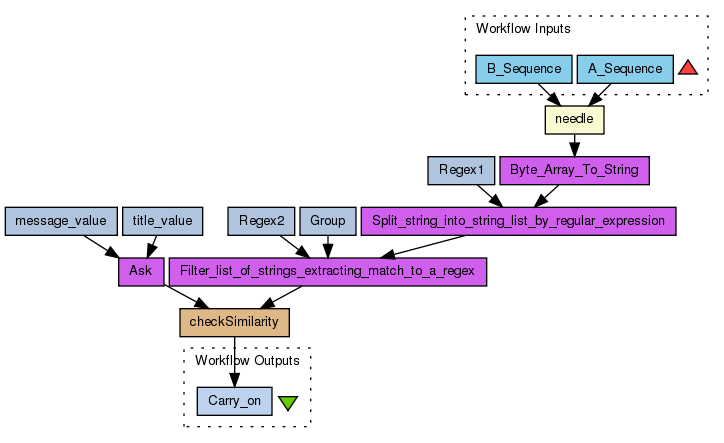

Workflow Components
Authors (1)
Gregg Iceton
Newcastle University |
Titles (2)
Nucleotide sequence similarity checker |
Nucleotide or protein sequence similarity checker |
Descriptions (1)
The workflow takes as input two nucleotide/protein sequences in FastA format, requests a minimum percentage similarity threshold and then checks this against the similarity of the two sequences as determined by the Needleman-Wunsch global alignment. |
Dependencies (0)
Inputs (2)
Name |
Description |
A_Sequence |
Input the first sequence in FastA format
|
B_Sequence |
Input the second sequence in FastA format
|
Processors (11)
Name |
Type |
Description |
needle |
soaplab |
Endpointhttp://www.ebi.ac.uk/soaplab/services/alignment_global.needle |
Regex1 |
stringconstant |
Value\n |
Byte_Array_To_String |
localworker |
Scriptstring = new String(bytes);
|
Split_string_into_string_list_by_regular_expression |
localworker |
ScriptList split = new ArrayList();
if (!string.equals("")) {
String regexString = ",";
if (regex != void) {
regexString = regex;
}
String[] result = string.split(regexString);
for (int i = 0; i < result.length; i++) {
split.add(result[i]);
}
}
|
Regex2 |
stringconstant |
Value.*Similarity.+\((....) |
Filter_list_of_strings_extracting_match_to_a_regex |
localworker |
Scriptimport java.util.regex.*;
filteredlist = new ArrayList();
Pattern thePat = Pattern.compile(regex);
int theGroup = Integer.parseInt(group);
for (Iterator i = stringlist.iterator(); i.hasNext();) {
String item = (String) i.next();
Matcher matcher = thePat.matcher(item);
if (matcher.find()) {
filteredlist.add(matcher.group(theGroup));
}
}
|
Group |
stringconstant |
Value1 |
checkSimilarity |
beanshell |
Scriptimport java.lang.Double;
double seqSimDbl = Double.valueOf(seqSim.trim()).doubleValue();
double minSimDbl = Double.valueOf(minSim.trim()).doubleValue();
int i = Double.compare(seqSimDbl,minSimDbl);
if (i >= 0)
{
simBln = 1;
} else
{
simBln = 0;
} |
Ask |
localworker |
Scriptimport javax.swing.JOptionPane;
answer = JOptionPane.showInputDialog(null, (message == void ? null : message), (title == void ? null : title), JOptionPane.QUESTION_MESSAGE);
|
message_value |
stringconstant |
ValuePlease enter the minimum percentage sequence similarity required |
title_value |
stringconstant |
ValueSequence similarity |
Beanshells (1)
Name |
Description |
Inputs |
Outputs |
checkSimilarity |
|
seqSim
minSim
|
simBln
seqSimDbl
minSimDbl
|
Outputs (1)
Name |
Description |
Carry_on |
Boolean output (0 or 1) - 0 indicates the sequence similarity was lower than the input threshold, 1 indicates the similarity was equal to or higher than the threshold.
|
Datalinks (13)
Source |
Sink |
A_Sequence |
needle:asequence_direct_data |
B_Sequence |
needle:bsequence_direct_data |
needle:outfile |
Byte_Array_To_String:bytes |
Regex1:value |
Split_string_into_string_list_by_regular_expression:regex |
Byte_Array_To_String:string |
Split_string_into_string_list_by_regular_expression:string |
Regex2:value |
Filter_list_of_strings_extracting_match_to_a_regex:regex |
Split_string_into_string_list_by_regular_expression:split |
Filter_list_of_strings_extracting_match_to_a_regex:stringlist |
Group:value |
Filter_list_of_strings_extracting_match_to_a_regex:group |
Filter_list_of_strings_extracting_match_to_a_regex:filteredlist |
checkSimilarity:seqSim |
Ask:answer |
checkSimilarity:minSim |
message_value:value |
Ask:message |
title_value:value |
Ask:title |
checkSimilarity:simBln |
Carry_on |
