Substructure Search On Database

Created: 2008-11-06 12:02:18

Download Workflow

This workflow takes as input a SMILES. This represents the substructure, for which the database gets searched. The output of this workflow is a PDF showing the 2D structures of the matched structure from the substructure search on the database.

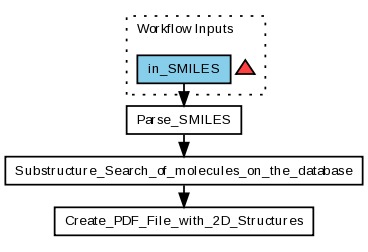

Preview

Download as scalable diagram (SVG)

Run

Run this Workflow in the Taverna Workbench...

Option 1:

Copy and paste this link into File > 'Open workflow location...'
http://myexperiment.org/workflows/555/download?version=1
[ More Info Expand ]

Workflow Components

Inputs (1)

Name	Description
in_SMILES

Processors (3)

Beanshells (0)

Outputs (0)

Links (3)

Source	Sink
Parse_SMILES:resultStructure	Substructure_Search_of_molecules_on_the_database:substructure
Substructure_Search_of_molecules_on_the_database:molecules	Create_PDF_File_with_2D_Structures:inputStructures
in_SMILES	Parse_SMILES:SMILE
