SigWin-detector Config-Basic

Created: 2009-10-09 13:37:10      Last updated: 2010-04-23 10:06:58

Detects significant windows in a sequence.

Input: A space-delimited file with (at least) one column containing the input sequence E= {E1, E2, …, EN}. A two-line header should precede the data. Input file example.<o:p></o:p>


(1) A file containing the detected significant windows for each label. Each data row represents a stretch of consecutive significant windows. Column 1 gives the window size and columns 2 and 3 give the first and last significant windows in the stretch. Output file example.

(2) An XMGRACE configurations file with information on how to plot the resulting SigWin-map (Use: xmgrace -bat file.agrcmd)

Graphical output: An XMGRACE plot displaying the resulting SigWin-map.

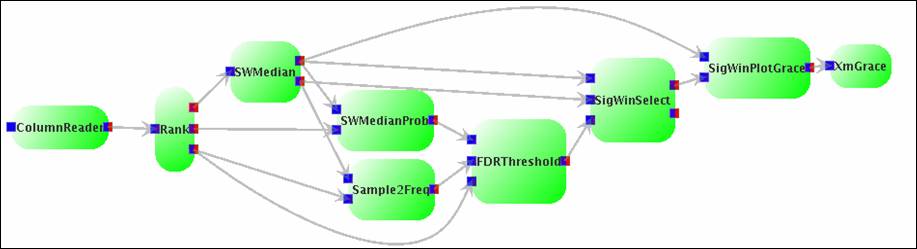

Parameters to set: (see module descriptions)<o:p></o:p>

(1) ColumnReader: file_name, column.

(2) SWMedian: min_window_size, max_window_size, step_size.

(3) FDRThresold: FDR_level, threshold

(4) SigWinSelect: Output_file, threshold:


[Launch in wsvlam]


IMPORTANT: to RUN this workflow you need grid credentials which are acceptable by the Distibuted ASCI Supercomputer [DAS3]

Information Preview


Information Run

Not available

Information Workflow Components

Not available

Information Workflow Type

Chemistry Plan

Information Uploader

Information License

All versions of this Workflow are licensed under:

Information Version 2 (latest) (of 2)

View version:

Information Credits (1)


Information Attributions (0)



Information Tags (1)

Log in to add Tags

Information Shared with Groups (0)


Information Featured In Packs (0)


Log in to add to one of your Packs

Information Attributed By (0)



Information Favourited By (0)

No one

Information Statistics


Citations (0)


Version History

In chronological order:

Reviews Reviews (0)

No reviews yet

Be the first to review!

Comments Comments (2)

Log in to make a comment

  • Saturday 01 November 2008 12:34:05 (UTC)

    Sounds interesting,
    but can you please provide some use case/example of how this workflow could be used?

    What do you mean exactly with 'significant window'? Are you referring to the sliding windows method? But what is 'significant' exactly?

    Thank you for providing a sample files and the description of all the processors used (I found it very difficult to understand the workflow from the description posted here only, because I didn't know what the various processors do).

    However, is the input file correct? I can't find any sequence in it.

    It is like this:

    #size=26740 ncols=2 descr=hg18-htm
    #chrom expression
    1       10.0
    1       13.0
    1       286.0
    1       0

    where is the sequence?

    Moreover, with which sequences/parameters have you tested this workflow?

    Thanks.. sorry, I made too many questions :)

  • Wednesday 19 November 2008 10:14:06 (UTC)


    Sorry for not reacting before to your questions. Actually I had to forward your

    questions to the Sigwin-window developper (I'm just a member of the group

    who design the workflow system. Following are the commnets:

    Sigwin web page:

    The sequence is the second column (a sequence here is just a list of numbers ordered somehow). For the temperatures the ordering is in time, for the transcriptome the ordering is position in the chromossome.
    Significant windows are the sliding windows for which the median value is statistically significantly higher than expected.


    I hope this will help, very soon you should be able to run this workfow from on the demo testbed we are setting up

    Thanks for your interest in this work
