color_pathway_by_elements

Created: 2008-09-30 18:13:47 Last updated: 2008-10-01 17:11:38

Download Workflow

Color the objects (rectangles and circles on a pathway map) corresponding to the given 'element_id_list' with the specified colors and return the URL of the colored image.

Example of inputs:

pathway_id:
path:bsu00010

element_list: (to add as list)
78
79

fg_color_list:(to add as list)
red
blue

bg_color_list: (to add as list)
green
yellow

Preview

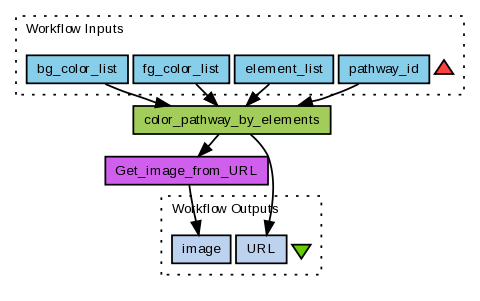

Download as scalable diagram (SVG)

Run

Run this Workflow in the Taverna Workbench...

Option 1:

Copy and paste this link into File > 'Open workflow location...'
http://myexperiment.org/workflows/503/download?version=2
[ More Info Expand ]

Workflow Components

Inputs (4)

Name	Description
pathway_id	path:bsu00010
element_list	78 79 51 47
fg_color_list	#ff0000 #0000ff #ff0000 #0000ff
bg_color_list	#ffff00 #ffff00 #ffcc00 #ffcc00

Processors (2)

Name	Type	Description
color_pathway_by_elements	arbitrarywsdl
Get_image_from_URL	local

Beanshells (0)

Outputs (2)

Name	Description
URL

Links (7)

Source	Sink
bg_color_list	color_pathway_by_elements:bg_color_list
element_list	color_pathway_by_elements:element_list
fg_color_list	color_pathway_by_elements:fg_color_list
pathway_id	color_pathway_by_elements:pathway_id
color_pathway_by_elements:return	Get_image_from_URL:url
Get_image_from_URL:image	image
color_pathway_by_elements:return	URL

Coordinations (0)

Information Workflow Type

Taverna 1

Information Uploader

Franck Tanoh

Information License

All versions of this Workflow are licensed under:

Information Version 2 (latest) (of 2)

Information Credits (1)

(People/Groups)

Franck Tanoh

Information Attributions (0)

(Workflows/Files)

None

Information Tags (1)

Uploader tags

color pathway

Log in to add Tags

Information Shared with Groups (0)

None

Information Featured In Packs (1)

Example workflow for KEGG web service

Log in to add to one of your Packs
