KEGG:Get PW for met
Created: 2016-06-21 19:06:49
The purpose of the workflow is to retrieve all the pathways that the input metabolite(s) participates in.

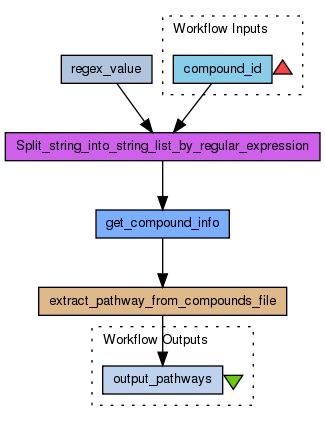

Preview
Run
Run this Workflow in the Taverna Workbench...
Workflow Components
Authors (1)
Harish Dharuri
Kristina Hettne |
Titles (1)
Descriptions (1)
The purpose of the workflow is to retrieve all the pathways that the input metabolite(s) participates in. |
Dependencies (0)
Inputs (1)
Name |
Description |
compound_id |
The input for the workflow is a Kegg compound ID.
|
Processors (4)
Name |
Type |
Description |
get_compound_info |
rest |
Use the KEGG API to query the KEGG database for compound information. |
extract_pathway_from_compounds_file |
beanshell |
Shell script to extract pathways from compounds file. Scriptimport java.util.regex.Matcher;
import java.util.regex.Pattern;
import java.util.ArrayList;
import java.util.Iterator;
String PATHWAY_Line;
List out1 = new ArrayList();
//First grab the line that contains the word "PATHWAY"
String p = "PATHWAY\\s+(.+?)\\b[A-Z]+?\\b\\s+";
Pattern pattern = Pattern.compile(p,Pattern.DOTALL);
Matcher matcher = pattern.matcher(in1);
while (matcher.find()){
PATHWAY_Line = matcher.group(1);
}
//Now get all the pathway ids from the "PATHWAY" line
String p1 = "(map[0-9]{5})";
Pattern pattern1 = Pattern.compile(p1,Pattern.MULTILINE);
Matcher matcher1 = pattern1.matcher(PATHWAY_Line);
while (matcher1.find()){
out1.add(matcher1.group(1));
}
|
Split_string_into_string_list_by_regular_expression |
localworker |
Split the input list on the newline character (this can be changed in the text constant input value). ScriptList split = new ArrayList();
if (!string.equals("")) {
String regexString = ",";
if (regex != void) {
regexString = regex;
}
String[] result = string.split(regexString);
for (int i = 0; i < result.length; i++) {
split.add(result[i]);
}
}
|
regex_value |
stringconstant |
Input constant for split method, can be changed (default is newline character \n). Value\n |
Beanshells (1)
Name |
Description |
Inputs |
Outputs |
extract_pathway_from_compounds_file |
Shell script to extract pathways from compounds file. |
in1
|
out1
|
Outputs (1)
Name |
Description |
output_pathways |
Output KEGG pathway identifiers
|
Datalinks (5)
Source |
Sink |
Split_string_into_string_list_by_regular_expression:split |
get_compound_info:query |
get_compound_info:responseBody |
extract_pathway_from_compounds_file:in1 |
regex_value:value |
Split_string_into_string_list_by_regular_expression:regex |
compound_id |
Split_string_into_string_list_by_regular_expression:string |
extract_pathway_from_compounds_file:out1 |
output_pathways |
