ASTM D0427-04 - Preliminary Workflow

Created: 2016-04-25 02:09:05

Download Workflow

ASTM D0427-04: Standard Test Method for Shrinkage Factors of Soils by the Mercury Method

This a preliminary version of a ASTM D0427 Workflow. This seems like a complex workflow but it does not. A lot of services is because I'm using a basic calculator web service to do simple a math calculations (http://www.dneonline.com/calculator.asmx) This simple web service calc use only two operands to do calc in four basic operations (add, divide, multiply and substract). So it's needed intermediate calculations to complete ASTM D0427-04 formulas values.

Note: Web service divide operation only works for integer values. This is a test of workflow composition using input values as 'Ask' services and simple calc web service to do math.

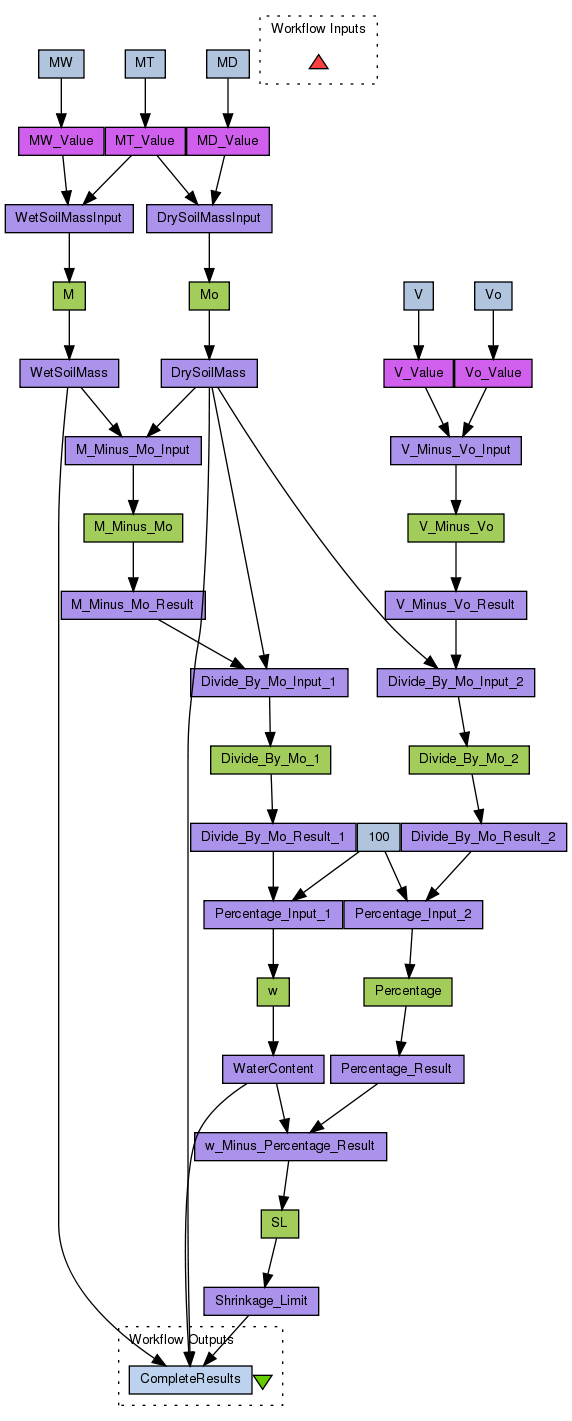

Preview

Download as scalable diagram (SVG)

Run

Run this Workflow in the Taverna Workbench...

Option 1:

Copy and paste this link into File > 'Open workflow location...'
http://myexperiment.org/workflows/4863/download?version=1
[ More Info Expand ]

Workflow Components

Authors (0)

Titles (0)

Descriptions (0)

Dependencies (0)

Inputs (0)

Processors (38)

Name	Type	Description
MT_Value	localworker	Script import javax.swing.JOptionPane; answer = JOptionPane.showInputDialog(null, (message == void ? null : message), (title == void ? null : title), JOptionPane.QUESTION_MESSAGE);
MW_Value	localworker	Script import javax.swing.JOptionPane; answer = JOptionPane.showInputDialog(null, (message == void ? null : message), (title == void ? null : title), JOptionPane.QUESTION_MESSAGE);
MD_Value	localworker	Script import javax.swing.JOptionPane; answer = JOptionPane.showInputDialog(null, (message == void ? null : message), (title == void ? null : title), JOptionPane.QUESTION_MESSAGE);
V_Value	localworker	Script import javax.swing.JOptionPane; answer = JOptionPane.showInputDialog(null, (message == void ? null : message), (title == void ? null : title), JOptionPane.QUESTION_MESSAGE);
Vo_Value	localworker	Script import javax.swing.JOptionPane; answer = JOptionPane.showInputDialog(null, (message == void ? null : message), (title == void ? null : title), JOptionPane.QUESTION_MESSAGE);
MT	stringconstant	Value MT: Mass of the empty dish (gr)
MW	stringconstant	Value MW: Dish and wet soil mass (gr)
MD	stringconstant	Value MD: Dish and dry soil mass (gr)
V	stringconstant	Value V: Wet soil mercury volume (cm^3)
Vo	stringconstant	Value Vo: Dry soil mercury volume (cm^3)
M	wsdl	Wsdl http://www.dneonline.com/calculator.asmx?WSDL Wsdl Operation Subtract
WetSoilMassInput	xmlsplitter
Mo	wsdl	Wsdl http://www.dneonline.com/calculator.asmx?WSDL Wsdl Operation Subtract
DrySoilMassInput	xmlsplitter
M_Minus_Mo	wsdl	Wsdl http://www.dneonline.com/calculator.asmx?WSDL Wsdl Operation Subtract
M_Minus_Mo_Input	xmlsplitter
WetSoilMass	xmlsplitter
DrySoilMass	xmlsplitter
M_Minus_Mo_Result	xmlsplitter
Divide_By_Mo_1	wsdl	Wsdl http://www.dneonline.com/calculator.asmx?WSDL Wsdl Operation Divide
Divide_By_Mo_Input_1	xmlsplitter
Divide_By_Mo_Result_1	xmlsplitter
w	wsdl	Wsdl http://www.dneonline.com/calculator.asmx?WSDL Wsdl Operation Multiply
Percentage_Input_1	xmlsplitter
100	stringconstant	Value 100
V_Minus_Vo	wsdl	Wsdl http://www.dneonline.com/calculator.asmx?WSDL Wsdl Operation Subtract
V_Minus_Vo_Input	xmlsplitter
WaterContent	xmlsplitter
V_Minus_Vo_Result	xmlsplitter
Divide_By_Mo_2	wsdl	Wsdl http://www.dneonline.com/calculator.asmx?WSDL Wsdl Operation Divide
Divide_By_Mo_Input_2	xmlsplitter
Divide_By_Mo_Result_2	xmlsplitter
Percentage	wsdl	Wsdl http://www.dneonline.com/calculator.asmx?WSDL Wsdl Operation Multiply
Percentage_Input_2	xmlsplitter
Percentage_Result	xmlsplitter
SL	wsdl	Wsdl http://www.dneonline.com/calculator.asmx?WSDL Wsdl Operation Subtract
w_Minus_Percentage_Result	xmlsplitter
Shrinkage_Limit	xmlsplitter

Beanshells (0)

Outputs (1)

Name	Description
CompleteResults

Datalinks (45)

Source	Sink
MT:value	MT_Value:message
MW:value	MW_Value:message
MD:value	MD_Value:message
V:value	V_Value:message
Vo:value	Vo_Value:message
WetSoilMassInput:output	M:parameters
MW_Value:answer	WetSoilMassInput:intA
MT_Value:answer	WetSoilMassInput:intB
DrySoilMassInput:output	Mo:parameters
MD_Value:answer	DrySoilMassInput:intA
MT_Value:answer	DrySoilMassInput:intB
M_Minus_Mo_Input:output	M_Minus_Mo:parameters
WetSoilMass:SubtractResult	M_Minus_Mo_Input:intA
DrySoilMass:SubtractResult	M_Minus_Mo_Input:intB
M:parameters	WetSoilMass:input
Mo:parameters	DrySoilMass:input
M_Minus_Mo:parameters	M_Minus_Mo_Result:input
Divide_By_Mo_Input_1:output	Divide_By_Mo_1:parameters
M_Minus_Mo_Result:SubtractResult	Divide_By_Mo_Input_1:intA
DrySoilMass:SubtractResult	Divide_By_Mo_Input_1:intB
Divide_By_Mo_1:parameters	Divide_By_Mo_Result_1:input
Percentage_Input_1:output	w:parameters
Divide_By_Mo_Result_1:DivideResult	Percentage_Input_1:intA
100:value	Percentage_Input_1:intB
V_Minus_Vo_Input:output	V_Minus_Vo:parameters
V_Value:answer	V_Minus_Vo_Input:intA
Vo_Value:answer	V_Minus_Vo_Input:intB
w:parameters	WaterContent:input
V_Minus_Vo:parameters	V_Minus_Vo_Result:input
Divide_By_Mo_Input_2:output	Divide_By_Mo_2:parameters
V_Minus_Vo_Result:SubtractResult	Divide_By_Mo_Input_2:intA
DrySoilMass:SubtractResult	Divide_By_Mo_Input_2:intB
Divide_By_Mo_2:parameters	Divide_By_Mo_Result_2:input
Percentage_Input_2:output	Percentage:parameters
Divide_By_Mo_Result_2:DivideResult	Percentage_Input_2:intA
100:value	Percentage_Input_2:intB
Percentage:parameters	Percentage_Result:input
w_Minus_Percentage_Result:output	SL:parameters
WaterContent:MultiplyResult	w_Minus_Percentage_Result:intA
Percentage_Result:MultiplyResult	w_Minus_Percentage_Result:intB
SL:parameters	Shrinkage_Limit:input
WetSoilMass:SubtractResult	CompleteResults
DrySoilMass:SubtractResult	CompleteResults
WaterContent:MultiplyResult	CompleteResults
Shrinkage_Limit:SubtractResult	CompleteResults
