sort_stereo_transient_list_into_cirs_and_cmes.t2flow

Created: 2014-08-11 15:17:18

Download Workflow

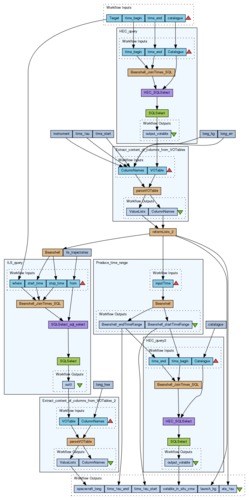

The workflow concept is below. Current workflow is proof of concept and works for default event.

1. The initial query is to the stereo_hi_sw_transient list in a particular time range. From this catalogue we extract the longitude of the source of the transient, the longitude error, the start time (launch time of the transient) and the estimated time of arrival. The time of the event is then passed to the HELIO Instrument Location Service (ILS) to extract the Heliocentric Earth Equatorial longitudes of all available instruments.

2. If the longitude of the spacecraft matches the launch longitude of the solar wind transient, the spacecraft is checked for the possible in-situ detection of a CME or CIR (all available in-situ catalogues above are checked).

3. If a CME or CIR is detected in-situ, both the in-situ data and the imaging data are saved for manual analysis. The procedure is repeated for all detections in the stereo_hi_sw_transient list.

Preview

Download as scalable diagram (SVG)

Run

Run this Workflow in the Taverna Workbench...

Option 1:

Copy and paste this link into File > 'Open workflow location...'
http://myexperiment.org/workflows/4360/download?version=1
[ More Info Expand ]

Workflow Components

Authors (0)

Titles (0)

Descriptions (0)

Dependencies (0)

Inputs (4)

Name	Description
time_begin
time_end
catalogue
Target

Processors (16)

Name	Type	Description
HEC_query	workflow
long_hg	stringconstant	Value long_hg
long_err	stringconstant	Value long_err
Extract_content_of_columns_from_VOTables	workflow
reformLists_2	beanshell	Script for (int icol=0;icol
time_start	stringconstant	Value time_start
instrument	stringconstant	Value instrument
Beanshell	beanshell	Script import java.util.Date; import java.util.Calendar; import java.text.SimpleDateFormat; SimpleDateFormat sdf = new SimpleDateFormat("yyyy-MM-dd'T'HH:mm:ss"); Calendar cal = Calendar.getInstance(); cal.setTime(sdf.parse(inputTime)); cal.add(Calendar.HOUR_OF_DAY, 24); endTimeRange = sdf.format(cal.getTime()); cal.add(Calendar.HOUR_OF_DAY, -24); startTimeRange = sdf.format(cal.getTime());
ILS_query	workflow
ils_trajectories	stringconstant	Value ils_trajectories
Extract_content_of_columns_from_VOTables_2	workflow
long_hee	stringconstant	Value long_hee
time_1au	stringconstant	Value time_1au
Produce_time_range	workflow
HEC_query2	workflow
catalogue	stringconstant	Value stereo_impactplastic_icme

Beanshells (7)

Name	Inputs	Outputs
reformLists_2	colNames values	longHg longErr time_start instrument time1au
Beanshell	inputTime	startTimeRange endTimeRange
Beanshell_JoinTimes_SQL	start_t end_t condition	WHERE
Beanshell_JoinTimes_SQL	start_t end_t condition	WHERE
parseVOTable	voTable collumn	valueLists debug collumn
Beanshell_JoinTimes_SQL	start_t end_t condition	WHERE
Beanshell	inputTime	startTimeRange endTimeRange

Outputs (6)

Name	Description
spacecraft_long
launch_hg
eta_1au
time_1au_start
time_1au_end
votable_in_situ_cme

Datalinks (28)

Source	Sink
time_begin	HEC_query:time_begin
time_end	HEC_query:time_end
catalogue	HEC_query:Catalogue
HEC_query:output_votable	Extract_content_of_columns_from_VOTables:VOTable
Extract_content_of_columns_from_VOTables:ValueLists	reformLists_2:values
Extract_content_of_columns_from_VOTables:ColumnNames	reformLists_2:colNames
reformLists_2:time_start	Beanshell:inputTime
Beanshell:startTimeRange	ILS_query:start_time
Beanshell:endTimeRange	ILS_query:stop_time
ils_trajectories:value	ILS_query:from
Target	ILS_query:where
ILS_query:out0	Extract_content_of_columns_from_VOTables_2:VOTable
long_hee:value	Extract_content_of_columns_from_VOTables_2:ColumnNames
reformLists_2:time1au	Produce_time_range:inputTime
catalogue:value	HEC_query2:Catalogue
Produce_time_range:Beanshell_startTimeRange	HEC_query2:time_begin
Produce_time_range:Beanshell_endTimeRange	HEC_query2:time_end
long_err:value	Extract_content_of_columns_from_VOTables:ColumnNames
long_hg:value	Extract_content_of_columns_from_VOTables:ColumnNames
time_start:value	Extract_content_of_columns_from_VOTables:ColumnNames
instrument:value	Extract_content_of_columns_from_VOTables:ColumnNames
time_1au:value	Extract_content_of_columns_from_VOTables:ColumnNames
Extract_content_of_columns_from_VOTables_2:ValueLists	spacecraft_long
reformLists_2:longHg	launch_hg
reformLists_2:time1au	eta_1au
Produce_time_range:Beanshell_startTimeRange	time_1au_start
Produce_time_range:Beanshell_endTimeRange	time_1au_end
HEC_query2:output_votable	votable_in_situ_cme
