Download images for gene

Created: 2014-07-13 18:38:57 Last updated: 2014-07-15 14:21:06

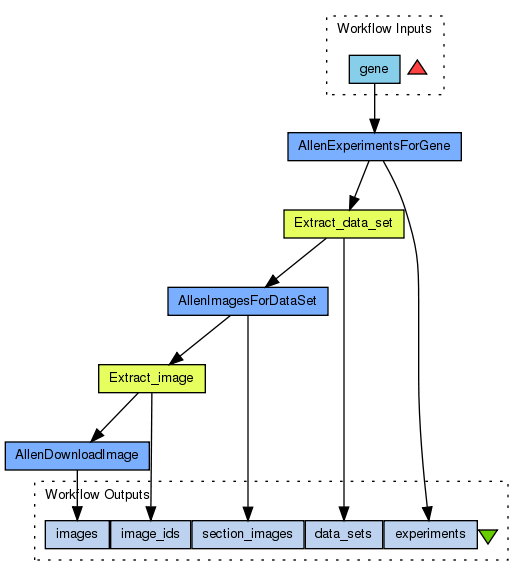

This workflow downloads the first few images corresponding to experiments for the specified gene

Option 1:

Copy and paste this link into File > 'Open workflow location...'
http://myexperiment.org/workflows/4335/download?version=3
[ More Info Expand ]

Authors (1)

Titles (1)

Descriptions (1)

Dependencies (0)

Inputs (1)

Name	Description
gene	The name of the gene

Processors (5)

Name	Type	Description
AllenExperimentsForGene	rest
Extract_data_set	xpath	Xpath Expression /Response/section-data-sets/section-data-set/id
AllenImagesForDataSet	rest
Extract_image	xpath	Xpath Expression /Response/section-images/section-image/id
AllenDownloadImage	rest

Beanshells (0)

Outputs (5)

Name	Description
experiments	The experiments for the gene
data_sets	The data sets for the gene
section_images	The section images for the gene
image_ids	The ids of the images for the gene
images	The images for the gene

Datalinks (10)

Source	Sink
gene	AllenExperimentsForGene:gene
AllenExperimentsForGene:responseBody	Extract_data_set:xml_text
Extract_data_set:nodelist	AllenImagesForDataSet:data_set
AllenImagesForDataSet:responseBody	Extract_image:xml_text
Extract_image:firstNode	AllenDownloadImage:image
AllenExperimentsForGene:responseBody	experiments
Extract_data_set:nodelist	data_sets
AllenImagesForDataSet:responseBody	section_images
Extract_image:firstNode	image_ids
AllenDownloadImage:responseBody	images
