Concept Profile Generation Pipeline

Created: 2014-04-30 19:14:51 Last updated: 2014-06-15 17:55:11

Download Workflow

Requirements:

Have MySQL installed with a database called mydb or please create one. Have mysql-connector-java-5.1.28-bin.jar or better placed in the local JAR files.

Have Peregrine indexer installed locally and give it the correct path in the component named "Indexer_tool" Download the Peregrine SKOS CLI from: https://trac.nbic.nl/biosemantics_bet_dev/downloads Install LVG2013Lite. See: https://trac.nbic.nl/data-mining/wiki/Using%20plain%20jar%20files Copy properties file from production.properties Change the normalizer.lvg.properties and normalizer.lvg.binaryCache properties to point to the LVG installation path.

If using a Windows machine please install cygwin. Set cygwin in the $PATH of the environment variabale. Go to taverna File --> preferences --> Tool invocation --> Edit defaul local --> write in Shell: C:\Windows\system32\cmd.exe /c and save that.

Have JAVA_HOME C:\Program Files\jdk 1.7.0 in environment variabale.

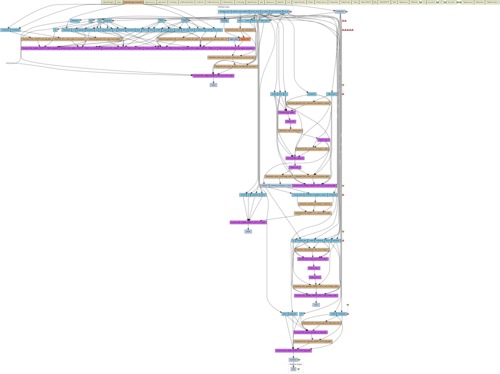

Preview

Download as scalable diagram (SVG)

Run

Run this Workflow in the Taverna Workbench...

Option 1:

Copy and paste this link into File > 'Open workflow location...'
http://myexperiment.org/workflows/4272/download?version=3
[ More Info Expand ]

Workflow Components

Authors (1)

Titles (0)

Descriptions (1)

Dependencies (1)

Inputs (6)

Name	Description
Ontology_input	A Skos formated dictionary/thesaurus of predefined concepts.
User_password	Input your sql password to acces as root.
abstract_input_depth2	Give a list with sublist. Each sublist consist out of two elements. Such as [ [ Document_URI, Abstract_URI] ]. For an example please load in the file named: Input_value_for_test_upload_CPGP. Which can be found under the files tab on MyExperiment.
Driver_value	The driver needed for all SQL query to run.
usr_id	The user ID which is in this case root.
url_value

Processors (6)

Name	Type	Description
Peregrine indexer	workflow
Calculate Uncertainty Coefficient	workflow
Calculate Contincengy table	workflow
Calculate Inner Product	workflow
Create Tables	workflow
Summarize Big Table	workflow

Beanshells (20)

Name	Description	Inputs	Outputs
Beanshell_SQL_create_table_co_occurence		timestamp	out1
Beanshell_SQL_generate_contingency_table	A Beanshell script that generates a SQL statement to retrieve the amount two concepts co-occur, concept A only occurs and not concept B, concept B occurs and not concept A and neither concepts occur in literature.	concept_pairs table_name	out1
Beanshell_SQL_insert_into_co_occurence_table	A Beanshell script that generates SQL statement to insert into the co-occurence table the amount two given concepts co-occur together in literature.	contingency_values timestamp concept_pairs	out1
Beanshell_correct_contincengy_table	A Beanshell script that corrects the output SQL retrieved contincengy table.	contingency_values	corrected_contingency_values
Beanshell_generate_SQL_statement_Get_destinct_concept	A Beanshell script that retrieves every concept.	table_name	out1
Beanshell_make_concept_pairs	A Beanshell script that gets as input a list of concepts to create concept pairs.	concept_B concept_A	concept_pair
Beanshell_SQL_INSERT_UC_values_INTO_table	A Beanshell script that generates a SQL statement to insert the calculated values of uncertainty coefficient per concept pair into the table.	timestamp concept_pairs UC_value	output_SQL
Beanshell_calculate_Uncertainty_Coefficient	A Beanshell script that calculates the Uncertainty coefficient based on the work of Herman van Haagen.	corrected_contingency_values	UC_value
Beanshell_SQL_generate_Get_Inner_Product	A Beanshell script that generates a SQL statement to retrieve the inner product between two concept profiles.	concept_pairs timestamp	out1
Beanshell_SQL_generate_INSERT_INTO_Inner_Product_table	A Beanshell script that generates a SQL statement to insert the inner product values calculated of two concept profiles into the inner product table.	concept_pairs timestamp inner_product_value	out1
Beanshell_SQL_query_generator_Concept_Doc_occurence	A Beanshell script that generates a Sql statement to INSERT the concept URI, occurence URI and document URI in the table named after the timestamp the workflow started. It uses a database called mydb. It is needed to have a database called mydb.	table_name concept_occurence_document	out1
Beanshell_extract_uri_doc_and_abstract	A Beanshell script which loops through the input to seperate the Document URIs and Abstract URIs.	Input	doc_uri abstracts
Beanshell_remove_dot_and_put_correct_doc_uri_in_con_occ_doc	A Beanshell script that replaces the temp created Taverna file with the correct Document URI.	concept_occurence_document doc_uri	out1
Beanshell_generate_SQL_occurence_concept_doc_table	A Beanshell script which generates a sql statement to CREATE a TABLE. TABLE name is the input of the timestamp. The table consists out of 4 columns: concept_occ_doc_id, concept_uri, occurence_uri and doc_uri. Where as concept_occ_doc_id is the PRIMARY KEY and AUTOINCREMENTED. Every other column has a VARCHAR(200)	timeStamp	Table_sql
Beanshell_SQL_generate_table_UC	A Beanshell script that generates a table for the uncertainty coefficient values.	time_stamp	output
Beanshell_get_timestamp	A Beanshell script which retreives the time the program started. As in year, month, day, hour, minutes and seconds in military time.		timeStamp
Beanshell_SQL_Generate_INSERT_INTO_big_table	A Beanshell script that generates SQL statements to insert two concepts and their given co-occurence, uncertainty coefficientcy and inner product values into the table.	timestamp in1	out1
Beanshell_SQL_statement_get_last_table_data_input	A Beanshell that generates SQL statements to retrieve the inner product of two concept profiles, the co-occurence of the concepts and the uncertainty coefficient.	timestamp	out1
Beanshell_generate_SQL_table_inner_product		timestamp	out1
Beanshell_SQL_CREATE_last_big_table		timestamp	out1

Outputs (1)

Name	Description
end

Datalinks (35)

Source	Sink
Create Tables:timeStamp	Peregrine indexer:table_name
url_value	Peregrine indexer:url
User_password	Peregrine indexer:password
Ontology_input	Peregrine indexer:ontology
abstract_input_depth2	Peregrine indexer:Input
usr_id	Peregrine indexer:userid
Driver_value	Peregrine indexer:driver
usr_id	Calculate Uncertainty Coefficient:userid
User_password	Calculate Uncertainty Coefficient:password
Calculate Contincengy table:outputlist	Calculate Uncertainty Coefficient:concept_pairs
Calculate Contincengy table:corrected_contingency_values	Calculate Uncertainty Coefficient:corrected_contingency_values
url_value	Calculate Uncertainty Coefficient:url
Driver_value	Calculate Uncertainty Coefficient:driver
Create Tables:timeStamp	Calculate Uncertainty Coefficient:timestamp
url_value	Calculate Contincengy table:url
Driver_value	Calculate Contincengy table:driver
User_password	Calculate Contincengy table:password
Create Tables:timeStamp	Calculate Contincengy table:table_name
usr_id	Calculate Contincengy table:userid
usr_id	Calculate Inner Product:userid
User_password	Calculate Inner Product:password
Calculate Contincengy table:outputlist	Calculate Inner Product:concept_pairs
Driver_value	Calculate Inner Product:driver
Create Tables:timeStamp	Calculate Inner Product:timestamp
url_value	Calculate Inner Product:url
usr_id	Create Tables:userid
url_value	Create Tables:url
Driver_value	Create Tables:driver
User_password	Create Tables:password
Create Tables:timeStamp	Summarize Big Table:timestamp
usr_id	Summarize Big Table:userid
url_value	Summarize Big Table:url
User_password	Summarize Big Table:password
Driver_value	Summarize Big Table:driver
Summarize Big Table:resultList	end
