Demonstration of configurable iteration

Created: 2014-04-03 09:45:41 Last updated: 2014-07-09 11:32:46

Download Workflow

This workflow shows the use of the iteration strategy editor to ensure that only relevant combinations of inputs are used during an implicit iteration.

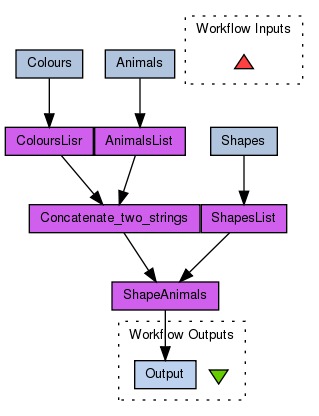

Preview

Download as scalable diagram (SVG)

Run

Run this Workflow in the Taverna Workbench...

Option 1:

Copy and paste this link into File > 'Open workflow location...'
http://myexperiment.org/workflows/4201/download?version=1
[ More Info Expand ]

Workflow Components

Authors (1)

Titles (1)

Descriptions (1)

Dependencies (0)

Inputs (0)

Processors (8)

Name	Type	Description
Colours	stringconstant	Value red ,green ,
Animals	stringconstant	Value cat ,rabbit ,
Shapes	stringconstant	Value square ,circular ,triangular ,
ColoursLisr	localworker	Script List split = new ArrayList(); if (!string.equals("")) { String regexString = ","; if (regex != void) { regexString = regex; } String[] result = string.split(regexString); for (int i = 0; i < result.length; i++) { split.add(result[i]); } }
AnimalsList	localworker	Script List split = new ArrayList(); if (!string.equals("")) { String regexString = ","; if (regex != void) { regexString = regex; } String[] result = string.split(regexString); for (int i = 0; i < result.length; i++) { split.add(result[i]); } }
ShapesList	localworker	Script List split = new ArrayList(); if (!string.equals("")) { String regexString = ","; if (regex != void) { regexString = regex; } String[] result = string.split(regexString); for (int i = 0; i < result.length; i++) { split.add(result[i]); } }
Concatenate_two_strings	localworker	Script output = string1 + string2;
ShapeAnimals	localworker	Script output = string1 + string2;

Beanshells (0)

Outputs (1)

Name	Description
Output

Datalinks (8)

Source	Sink
Colours:value	ColoursLisr:string
Animals:value	AnimalsList:string
Shapes:value	ShapesList:string
ColoursLisr:split	Concatenate_two_strings:string1
AnimalsList:split	Concatenate_two_strings:string2
Concatenate_two_strings:output	ShapeAnimals:string2
ShapesList:split	ShapeAnimals:string1
ShapeAnimals:output	Output
