getDataPointValue_Spacecraft by FMI

Created: 2014-03-31 13:12:34 Last updated: 2014-05-20 08:47:07

Download Workflow

Workflow for Taverna based on the IMPEx-FP7 method getDataPointValue_Spacecraft. This method is used to compute values of various physical quantities (e.g. density, magnetic field strength etc.) along the path of a given spacecraft.

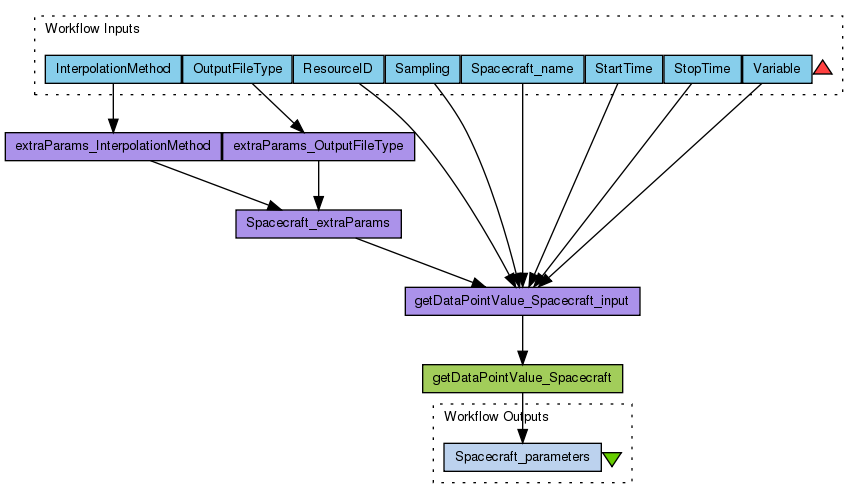

Preview

Download as scalable diagram (SVG)

Run

Run this Workflow in the Taverna Workbench...

Option 1:

Copy and paste this link into File > 'Open workflow location...'
http://myexperiment.org/workflows/4191/download?version=3
[ More Info Expand ]

Workflow Components

Authors (1)

Titles (1)

Descriptions (1)

Dependencies (0)

Inputs (8)

Name	Description
InterpolationMethod
OutputFileType
ResourceID
Sampling
Spacecraft_name
StartTime
StopTime
Variable

Processors (5)

Name	Type	Description
getDataPointValue_Spacecraft	wsdl	Wsdl http://impex-portal.oeaw.ac.at:80/methods/taverna/FMI Wsdl Operation getDataPointValue_Spacecraft
getDataPointValue_Spacecraft_input	xmlsplitter
Spacecraft_extraParams	xmlsplitter
extraParams_InterpolationMethod	xmlsplitter
extraParams_OutputFileType	xmlsplitter

Beanshells (0)

Outputs (1)

Name	Description
Spacecraft_parameters

Datalinks (13)

Source	Sink
getDataPointValue_Spacecraft_input:output	getDataPointValue_Spacecraft:parameters
Spacecraft_extraParams:output	getDataPointValue_Spacecraft_input:extraParams
ResourceID	getDataPointValue_Spacecraft_input:ResourceID
Sampling	getDataPointValue_Spacecraft_input:Sampling
Spacecraft_name	getDataPointValue_Spacecraft_input:Spacecraft_name
StartTime	getDataPointValue_Spacecraft_input:StartTime
StopTime	getDataPointValue_Spacecraft_input:StopTime
Variable	getDataPointValue_Spacecraft_input:Variable
extraParams_InterpolationMethod:output	Spacecraft_extraParams:InterpolationMethod
extraParams_OutputFileType:output	Spacecraft_extraParams:OutputFileType
InterpolationMethod	extraParams_InterpolationMethod:value
OutputFileType	extraParams_OutputFileType:value
getDataPointValue_Spacecraft:parameters	Spacecraft_parameters
