Download pathways for external references list

Created: 2008-11-14 14:38:31

Download Workflow

Takes a list of external references to genes/proteins/metabolites, finds all pathways on WikiPathways that contain one of the given genes/proteins/metabolites and downloads them in a given file format. An example of an input file containing a list of protein references can be found here.

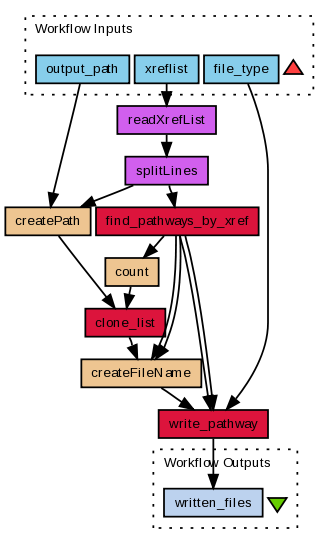

Preview

Download as scalable diagram (SVG)

Run

Run this Workflow in the Taverna Workbench...

Option 1:

Copy and paste this link into File > 'Open workflow location...'
http://myexperiment.org/workflows/393/download?version=1
[ More Info Expand ]

Workflow Components

Inputs (3)

Name	Description
xreflist	The location of a text file containing on each line a gene/protein/metabolite identifier (e.g. P04637).
output_path	The path to write the downloaded pathway files to.
file_type	The type of the file to write. This can be one of: - gpml (xml format, for use in WikiPathways, PathVisio, Cytoscape) - png (rasterized image format) - svg (vector image format) - pdf (portable document format) - pwf (for use in Eu.Gene) - txt (a text file containing a list of external references for the genes/proteins/metabolites on the pathway)

Processors (8)

Name	Type	Description
splitLines	local
count	beanshell
createPath	beanshell
createFileName	beanshell
readXrefList	local
clone_list	workflow
find_pathways_by_xref	workflow
write_pathway	workflow

Beanshells (3)

Name	Inputs	Outputs
count	list	count
createPath	output_path xref	path_name
createFileName	pathway_name path_name pathway_species	file_name

Outputs (1)

Name	Description
written_files	A list of files that were written.

Links (16)

Source	Sink
output_path	createPath:output_path
xreflist	readXrefList:fileurl
clone_list:clones	createFileName:path_name
count:count	clone_list:copy_number
createFileName:file_name	write_pathway:file_name
createPath:path_name	clone_list:input
file_type	write_pathway:file_type
find_pathways_by_xref:pathway_names	count:list
find_pathways_by_xref:pathway_names	createFileName:pathway_name
find_pathways_by_xref:pathway_names	write_pathway:pathway_name
find_pathways_by_xref:pathway_species	createFileName:pathway_species
find_pathways_by_xref:pathway_species	write_pathway:pathway_species
readXrefList:filecontents	splitLines:string
splitLines:split	createPath:xref
splitLines:split	find_pathways_by_xref:identifier
write_pathway:writtenFile	written_files

Coordinations (0)

Information Workflow Type

Taverna 1

Information Uploader

Thomask...

Information License

All versions of this Workflow are licensed under:

Information Version 1 (earliest) (of 2)

Information Credits (1)

(People/Groups)

Thomaskelder

Information Attributions (1)

(Workflows/Files)

CloneItemsInList

[ edit ]

Information Tags (5)

Uploader tags

Log in to add Tags

Information Shared with Groups (0)

None

Information Featured In Packs (1)

WikiPathways workflows

Log in to add to one of your Packs

Information Attributed By (0)

(Workflows/Files)

None

Information Favourited By (0)

No one

Information Statistics

3099 viewings

2166 downloads

[ see breakdown ]

Citations (0)

None

Version History

In chronological order:

Download pathways for external references list

Created by Thomaskelder on Tuesday 16 September 2008 11:32:47 (UTC)

Last edited by Thomaskelder on Tuesday 16 September 2008 11:41:39 (UTC)
Download pathways for external references list

Created by Thomaskelder on Friday 14 November 2008 14:38:31 (UTC)

Revision comment:

Adapted workflow to stable identifiers on WikiPathways
