keggID to Kegg pathways with BioMoby services

Created: 2007-10-03 18:36:22 Last updated: 2008-03-05 13:59:55

This workflow retrieves KEGG pathway id and image given a KEGG gene id. e.g hsa:6402 or eco:b0002

Option 1:

Copy and paste this link into File > 'Open workflow location...'
http://myexperiment.org/workflows/38/download?version=2
[ More Info Expand ]

Inputs (0)

Processors (7)

Name	Type	Description
getKeggPathwaysByKeggID	biomobywsdl	This service, given a KEGG identifier, attempts to retrieve KEGG pathways that that contain this ID. For example, passing in: hsa:6402 results in the following pathway returned: hsa04514.
Object	biomobyobject	an object
Parse_Moby_Data_Object	biomobyparser	Processor to parse the datatype Object
getKeggPathwayAsGif	biomobywsdl	This service, given a KEGG pathway, returns a Gif image of the pathway if it exists. For example, the <Object, KEGG_PATHWAY, 'hsa00053') returns a diagram of the pathway 'ASCORBATE AND ALDRATE METABOLISM'.
Parse_Moby_Data_b64_encoded_gif	biomobyparser	Processor to parse the datatype b64_encoded_gif
Decode_base64_to_byte	local
String_Constant	stringconstant

Beanshells (0)

Outputs (3)

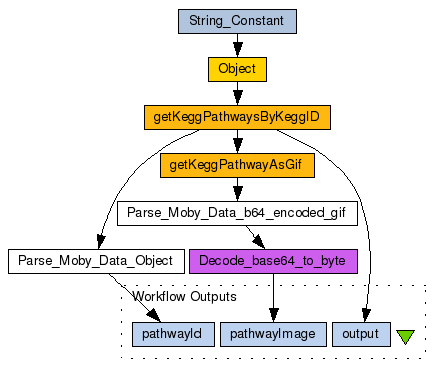

Links (9)

Source	Sink
Decode_base64_to_byte:bytes	pathwayImage
Object:mobyData	getKeggPathwaysByKeggID:Object(keggID)
Parse_Moby_Data_b64_encoded_gif:image_'content'	Decode_base64_to_byte:base64
String_Constant:value	Object:id
getKeggPathwayAsGif:b64_encoded_gif(image)	Parse_Moby_Data_b64_encoded_gif:mobyData('b64_encoded_gif')
getKeggPathwaysByKeggID:Object(Collection - 'pathways' As Simples)	getKeggPathwayAsGif:Object(pathway)
Parse_Moby_Data_Object:id	pathwayId
getKeggPathwaysByKeggID:Object(Collection - 'pathways' As Simples)	Parse_Moby_Data_Object:mobyData('Object')
getKeggPathwaysByKeggID:Object(Collection - 'pathways')	output
