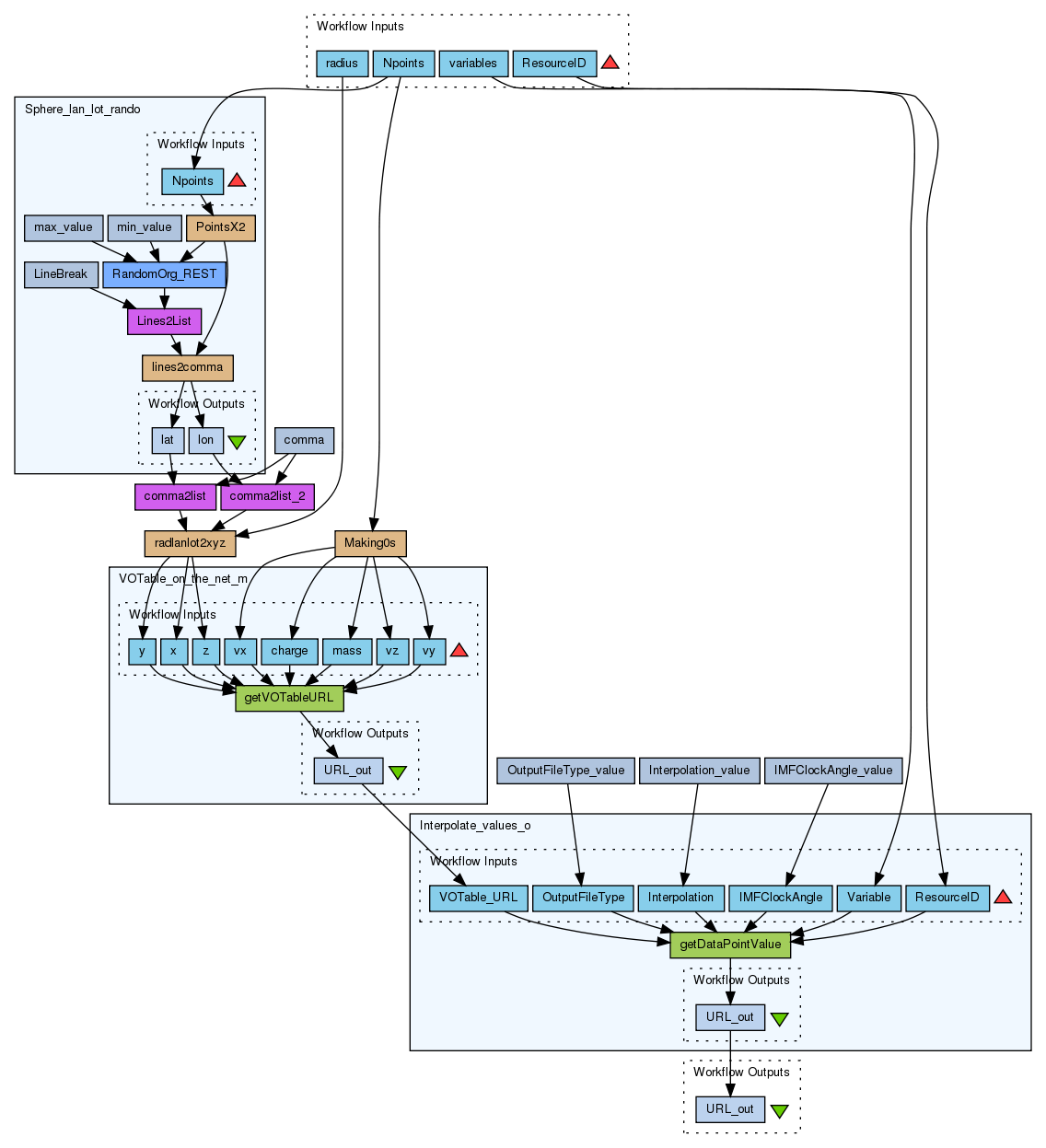

Interpolate n-randon points in a sphere on a planetary models provided under IMPEx

None

double rad = Double.parseDouble(radius);
x = "";
y = "";
z = "";
for (int i=0;i
List split = new ArrayList();
if (!string.equals("")) {
	String regexString = ",";
	if (regex != void) {
		regexString = regex;
	}
	String[] result = string.split(regexString);
	for (int i = 0; i < result.length; i++) {
		split.add(result[i]);
	}
}

List split = new ArrayList();
if (!string.equals("")) {
	String regexString = ",";
	if (regex != void) {
		regexString = regex;
	}
	String[] result = string.split(regexString);
	for (int i = 0; i < result.length; i++) {
		split.add(result[i]);
	}
}

int points = Integer.parseInt(points);
values = "";
for (i=0; i

Name	Description
radius	Radius in meters at which we want to interpolate the values
variables	Comma separated variables to interpolate in the model [if none it's provided it returns all of the possible]
Npoints	Number of points that we want to randomly interpolate
ResourceID	Any of the ResourceID from IMPEx NumericalOutputs: Check each groups tree.xml to find the possible values and their description

Name	Type	Description
Sphere_lan_lot_rando	workflow
Interpolate_values_o	workflow
VOTable_on_the_net_m	workflow
radlanlot2xyz	beanshell	Script double rad = Double.parseDouble(radius); x = ""; y = ""; z = ""; for (int i=0;i
comma2list	localworker	Script List split = new ArrayList(); if (!string.equals("")) { String regexString = ","; if (regex != void) { regexString = regex; } String[] result = string.split(regexString); for (int i = 0; i < result.length; i++) { split.add(result[i]); } }
comma	stringconstant	Value ,
comma2list_2	localworker	Script List split = new ArrayList(); if (!string.equals("")) { String regexString = ","; if (regex != void) { regexString = regex; } String[] result = string.split(regexString); for (int i = 0; i < result.length; i++) { split.add(result[i]); } }
Making0s	beanshell	Script int points = Integer.parseInt(points); values = ""; for (i=0; i
OutputFileType_value	stringconstant	Value votable
Interpolation_value	stringconstant	Value linear
IMFClockAngle_value	stringconstant	Value 0

Name	Inputs	Outputs
radlanlot2xyz	lon lat radius	x y z
Making0s	points	values
lines2comma	text lines	lon lat
PointsX2	points	pointsX2

Source	Sink
Npoints	Sphere_lan_lot_rando:Npoints
VOTable_on_the_net_m:URL_out	Interpolate_values_o:VOTable_URL
variables	Interpolate_values_o:Variable
ResourceID	Interpolate_values_o:ResourceID
OutputFileType_value:value	Interpolate_values_o:OutputFileType
Interpolation_value:value	Interpolate_values_o:Interpolation
IMFClockAngle_value:value	Interpolate_values_o:IMFClockAngle
radlanlot2xyz:x	VOTable_on_the_net_m:x
radlanlot2xyz:y	VOTable_on_the_net_m:y
radlanlot2xyz:z	VOTable_on_the_net_m:z
Making0s:values	VOTable_on_the_net_m:vz
Making0s:values	VOTable_on_the_net_m:vy
Making0s:values	VOTable_on_the_net_m:vx
Making0s:values	VOTable_on_the_net_m:mass
Making0s:values	VOTable_on_the_net_m:charge
comma2list:split	radlanlot2xyz:lat
comma2list_2:split	radlanlot2xyz:lon
radius	radlanlot2xyz:radius
comma:value	comma2list:regex
Sphere_lan_lot_rando:lat	comma2list:string
Sphere_lan_lot_rando:lon	comma2list_2:string
comma:value	comma2list_2:regex
Npoints	Making0s:points
Interpolate_values_o:URL_out	URL_out
