Interpolate values on planetary models provided under IMPEx for Spacecraft orbits.
Created: 2013-09-10 08:28:11
Last updated: 2013-09-10 16:46:31
This is a simple workflow using one of the webservice provided by IMPEx. It calculates the value of different variables, at the cordinates that a spacecraft pass through for the time range provided, for a particular planetary model.
The orbital values of the spacecraft are obtained by AMDA.

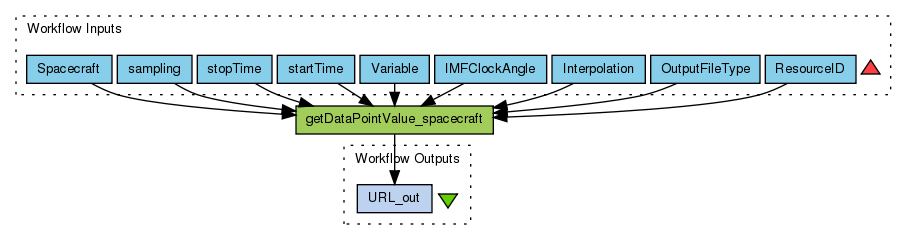

Preview
Run
Run this Workflow in the Taverna Workbench...
Workflow Components
Authors (1)
Titles (1)
| Interpolate values on planetary models provided under IMPEx for Spacecraft orbits. |
Descriptions (1)
| This is a simple workflow using one of the webservice provided by IMPEx. It calculates the value of different variables, at the cordinates that a spacecraft pass through for the time range provided, for a particular planetary model.
The orbital values of the spacecraft are obtained by AMDA. |
Dependencies (0)
Inputs (9)
| Name |
Description |
| ResourceID |
Any of the ResourceID from IMPEx NumericalOutputs: Check each groups tree.xml to find the possible values and their description
|
| OutputFileType |
IMPEx produces either netcdf or votable file formats, default (if not defined is votable)
|
| Interpolation |
Two options are available, linear (default) or nearestgridpoint
|
| IMFClockAngle |
This parameter is not still implemented in FMI models, but it's for others. It can left empty
|
| Variable |
List of variables (comma separated) that you wish to obtain the interpolated values. By default (if not provided any) it interpolate all the variables available.
|
| startTime |
Start time of the interval that you want to get the orbital parameters, and therefore the interpolated values.
Time must be input in ISO format
|
| stopTime |
Stop time of the interval that you want to get the orbital parameters, and therefore the interpolated values.
Time must be input in ISO format
|
| sampling |
The temporal interval in seconds for which the orbital parameters are wanted
|
| Spacecraft |
Mission for which you want to get the orbit and the interpolated values for the variables specified. Notice that ResourceID and Spacecraft need to have the same planet.
|
Processors (1)
| Name |
Type |
Description |
| getDataPointValue_spacecraft |
wsdl |
Wsdlhttp://impex-fp7.fmi.fi/impex/IMPExServer.php?wsdlWsdl OperationgetDataPointValue_spacecraft |
Outputs (1)
| Name |
Description |
| URL_out |
Result url of the requested data in the file format specified.
|
Datalinks (10)
| Source |
Sink |
| IMFClockAngle |
getDataPointValue_spacecraft:IMFClockAngle |
| Interpolation |
getDataPointValue_spacecraft:InterpolationMethod |
| OutputFileType |
getDataPointValue_spacecraft:OutputFileType |
| ResourceID |
getDataPointValue_spacecraft:ResourceID |
| Variable |
getDataPointValue_spacecraft:Variable |
| startTime |
getDataPointValue_spacecraft:StartTime |
| stopTime |
getDataPointValue_spacecraft:StopTime |
| sampling |
getDataPointValue_spacecraft:Sampling |
| Spacecraft |
getDataPointValue_spacecraft:Spacecraft_name |
| getDataPointValue_spacecraft:return |
URL_out |
