Pathway to Pubmed

Created: 2013-09-03 22:25:15

Download Workflow

This workflow takes in a list of KEGG pathway descriptions and searches the PubMed database for corresponding articles. Any matches to the pathways are then retrieved (abstracts only). These abstracts are then returned to the user.

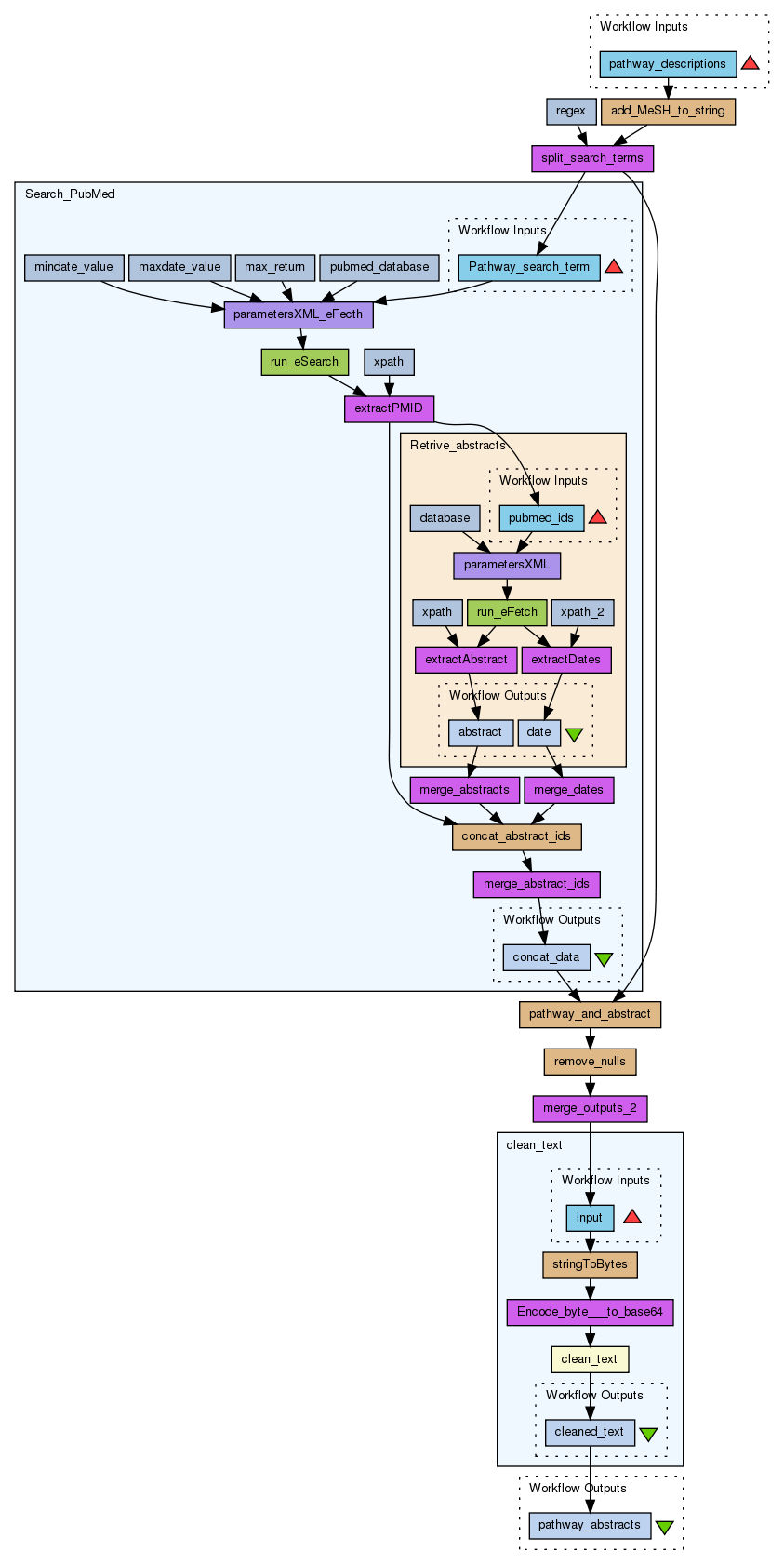

Preview

Download as scalable diagram (SVG)

Run

Run this Workflow in the Taverna Workbench...

Option 1:

Copy and paste this link into File > 'Open workflow location...'
http://myexperiment.org/workflows/3727/download?version=1
[ More Info Expand ]

Workflow Components

Authors (1)

Titles (1)

Descriptions (1)

Dependencies (0)

Inputs (1)

Name	Description
pathway_descriptions

Processors (8)

Name	Type	Description
split_search_terms	localworker	Script List split = new ArrayList(); if (!string.equals("")) { String regexString = ","; if (regex != void) { regexString = regex; } String[] result = string.split(regexString); for (int i = 0; i < result.length; i++) { split.add(result[i]); } }
pathway_and_abstract	beanshell	Script String[] split = abstracts.split("\n"); String pathway_name = pathway; Vector nonEmpty = new Vector(); for (int i = 0; i < split.length; i++) { String trimmed = split[i].trim(); nonEmpty.add(trimmed); } String output = ">> " + pathway_name + "\n"; for (int i = 0; i < nonEmpty.size(); i++) { output = output + (String) (nonEmpty.elementAt(i) + "\n"); }
remove_nulls	beanshell	Script String[] split = input.split("\n"); Vector nonEmpty = new Vector(); for (int i = 0; i < split.length; i++){ if (!(split[i].equals(""))) { nonEmpty.add(split[i].trim()); } } String[] non_empty = new String[nonEmpty.size()]; for (int i = 0; i < non_empty.length; i ++) { non_empty[i] = nonEmpty.elementAt(i); } String output = ""; for (int i = 0; i < non_empty.length; i++) { output = output + (String) (non_empty[i] + "\n"); }
merge_outputs_2	localworker	Script String seperatorString = "\n"; if (seperator != void) { seperatorString = seperator; } StringBuffer sb = new StringBuffer(); for (Iterator i = stringlist.iterator(); i.hasNext();) { String item = (String) i.next(); sb.append(item); if (i.hasNext()) { sb.append(seperatorString); } } concatenated = sb.toString();
regex	stringconstant	Value \n
add_MeSH_to_string	beanshell	Script String[] split = input.split("\n"); Vector nonEmpty = new Vector(); for (int i = 0; i < split.length; i++) { String trimmed = split[i].trim(); nonEmpty.add(trimmed); } String output = ""; for (int i = 0; i < nonEmpty.size(); i++) { output = output + (String) (nonEmpty.elementAt(i) + " AND \"Metabolic Networks and Pathways\"[MeSH Terms]" + "\n"); }
Search_PubMed	workflow
clean_text	workflow

Beanshells (5)

Name	Inputs	Outputs
pathway_and_abstract	pathway abstracts	output
remove_nulls	input	output
add_MeSH_to_string	input	output
stringToBytes	string	bytes
concat_abstract_ids	id abstract_text date_text	output

Outputs (1)

Name	Description
pathway_abstracts

Datalinks (10)

Source	Sink
add_MeSH_to_string:output	split_search_terms:string
regex:value	split_search_terms:regex
Search_PubMed:concat_data	pathway_and_abstract:abstracts
split_search_terms:split	pathway_and_abstract:pathway
pathway_and_abstract:output	remove_nulls:input
remove_nulls:output	merge_outputs_2:stringlist
pathway_descriptions	add_MeSH_to_string:input
split_search_terms:split	Search_PubMed:Pathway_search_term
merge_outputs_2:concatenated	clean_text:input
clean_text:cleaned_text	pathway_abstracts

Coordinations (0)

Information Workflow Type

Taverna 2

Information Uploader

Aleksandra Pawlik

Information License

All versions of this Workflow are licensed under:

Information Version 1 (of 1)

Information Credits (2)

(People/Groups)

Information Attributions (1)

(Workflows/Files)

Pathway to Pubmed

Information Tags (0)

None

Log in to add Tags

Information Shared with Groups (1)

Bonn-September 2013

Information Featured In Packs (0)

None

Log in to add to one of your Packs

Information Attributed By (0)

(Workflows/Files)

None

Information Favourited By (0)

No one

Information Statistics

1324 viewings

967 downloads

[ see breakdown ]

Citations (0)

None

Version History

In chronological order:

Pathway to Pubmed

Created by Aleksandra Pawlik on Tuesday 03 September 2013 22:25:14 (UTC)

Reviews (0)

No reviews yet

Be the first to review!

Comments (0)

View Timeline

No comments yet

Log in to make a comment
