UnigeneID to KEGG Pathways
Created: 2013-09-03 21:22:42
This workflow accepts a list of Unigene gene identifiers and returns descriptions of gene functions and a list of all pathways each gene is involved in (plus pathway image) from the KEGG database.
This workflow replaces the earlier SOAP version with the new KEGG REST services

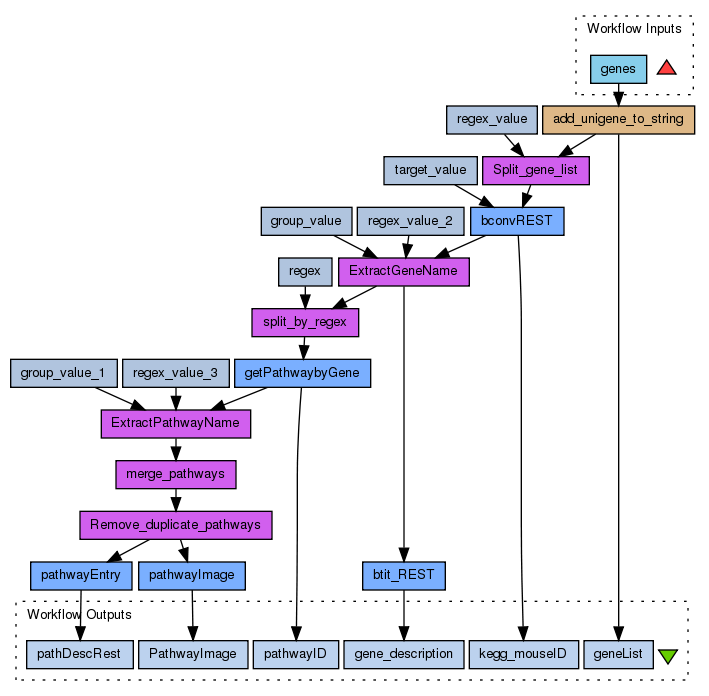

Preview
Run
Run this Workflow in the Taverna Workbench...
Workflow Components
Authors (1)
Paul Fisher and Katy Wolstencroft |
Titles (1)
UnigeneID to KEGG Pathways |
Descriptions (1)
This workflow accepts a list of Unigene gene identifiers and returns descriptions of gene functions and a list of all pathways each gene is involved in (plus pathway image) from the KEGG database.
This workflow replaces the earlier SOAP version with the new KEGG REST services |
Dependencies (0)
Inputs (1)
Name |
Description |
genes |
Accepts a list of Unigene Gene Identifiers
|
Processors (19)
Name |
Type |
Description |
add_unigene_to_string |
beanshell |
ScriptString[] split = input.split("\n");
Vector nonEmpty = new Vector();
for (int i = 0; i < split.length; i++)
{
String trimmed = split[i].trim();
nonEmpty.add(trimmed);
}
String output = "";
for (int i = 0; i < nonEmpty.size(); i++)
{
output = output + "unigene:" + (String) (nonEmpty.elementAt(i) + "\n");
} |
regex |
stringconstant |
Value\n |
merge_pathways |
localworker |
ScriptString seperatorString = "\n";
if (seperator != void) {
seperatorString = seperator;
}
StringBuffer sb = new StringBuffer();
for (Iterator i = stringlist.iterator(); i.hasNext();) {
String item = (String) i.next();
sb.append(item);
if (i.hasNext()) {
sb.append(seperatorString);
}
}
concatenated = sb.toString();
|
Remove_duplicate_pathways |
localworker |
ScriptList strippedlist = new ArrayList();
for (Iterator i = stringlist.iterator(); i.hasNext();) {
String item = (String) i.next();
if (!item.isEmpty() && !strippedlist.contains(item)) {
strippedlist.add(item);
}
}
|
split_by_regex |
localworker |
ScriptList split = new ArrayList();
if (!string.equals("")) {
String regexString = ",";
if (regex != void) {
regexString = regex;
}
String[] result = string.split(regexString);
for (int i = 0; i < result.length; i++) {
split.add(result[i]);
}
}
|
Split_gene_list |
localworker |
ScriptList split = new ArrayList();
if (!string.equals("")) {
String regexString = ",";
if (regex != void) {
regexString = regex;
}
String[] result = string.split(regexString);
for (int i = 0; i < result.length; i++) {
split.add(result[i]);
}
}
|
regex_value |
stringconstant |
Value\n |
bconvREST |
rest |
|
target_value |
stringconstant |
Valuemmu |
ExtractGeneName |
localworker |
Scriptimport java.util.regex.*;
filteredlist = new ArrayList();
Pattern thePat = Pattern.compile(regex);
int theGroup = Integer.parseInt(group);
for (Iterator i = stringlist.iterator(); i.hasNext();) {
String item = (String) i.next();
Matcher matcher = thePat.matcher(item);
if (matcher.find()) {
filteredlist.add(matcher.group(theGroup));
}
}
|
group_value |
stringconstant |
Value0 |
regex_value_2 |
stringconstant |
Valuemmu:[0-9]{4,} |
btit_REST |
rest |
|
getPathwaybyGene |
rest |
|
ExtractPathwayName |
localworker |
Scriptimport java.util.regex.*;
filteredlist = new ArrayList();
Pattern thePat = Pattern.compile(regex);
int theGroup = Integer.parseInt(group);
for (Iterator i = stringlist.iterator(); i.hasNext();) {
String item = (String) i.next();
Matcher matcher = thePat.matcher(item);
if (matcher.find()) {
filteredlist.add(matcher.group(theGroup));
}
}
|
group_value_1 |
stringconstant |
Value0 |
regex_value_3 |
stringconstant |
Valuepath:[0-9a-z]{5,} |
pathwayEntry |
rest |
|
pathwayImage |
rest |
|
Beanshells (1)
Name |
Description |
Inputs |
Outputs |
add_unigene_to_string |
|
input
|
output
|
Outputs (6)
Name |
Description |
geneList |
|
kegg_mouseID |
|
gene_description |
|
pathDescRest |
|
pathwayID |
|
PathwayImage |
|
Datalinks (25)
Source |
Sink |
genes |
add_unigene_to_string:input |
ExtractPathwayName:filteredlist |
merge_pathways:stringlist |
merge_pathways:concatenated |
Remove_duplicate_pathways:stringlist |
regex:value |
split_by_regex:regex |
ExtractGeneName:filteredlist |
split_by_regex:string |
regex_value:value |
Split_gene_list:regex |
add_unigene_to_string:output |
Split_gene_list:string |
Split_gene_list:split |
bconvREST:source |
target_value:value |
bconvREST:target |
bconvREST:responseBody |
ExtractGeneName:stringlist |
group_value:value |
ExtractGeneName:group |
regex_value_2:value |
ExtractGeneName:regex |
ExtractGeneName:filteredlist |
btit_REST:geneID |
split_by_regex:split |
getPathwaybyGene:geneID |
group_value_1:value |
ExtractPathwayName:group |
regex_value_3:value |
ExtractPathwayName:regex |
getPathwaybyGene:responseBody |
ExtractPathwayName:stringlist |
Remove_duplicate_pathways:strippedlist |
pathwayEntry:pathID |
Remove_duplicate_pathways:strippedlist |
pathwayImage:pathID |
add_unigene_to_string:output |
geneList |
bconvREST:responseBody |
kegg_mouseID |
btit_REST:responseBody |
gene_description |
pathwayEntry:responseBody |
pathDescRest |
getPathwaybyGene:responseBody |
pathwayID |
pathwayImage:responseBody |
PathwayImage |
