Find asteroids in images from CAHA observatory

Created: 2013-07-17 12:09:27

Download Workflow

It analyzes images from CAFOS instrument in Calar Alto Observatory. It uses SkyBot catalog in order to identify objects in the Solar System. It includes a double check to avoid objets that are not asteroids (comparing with USNO and 2MASS catalogs).

The result is a VOTable of asteroids

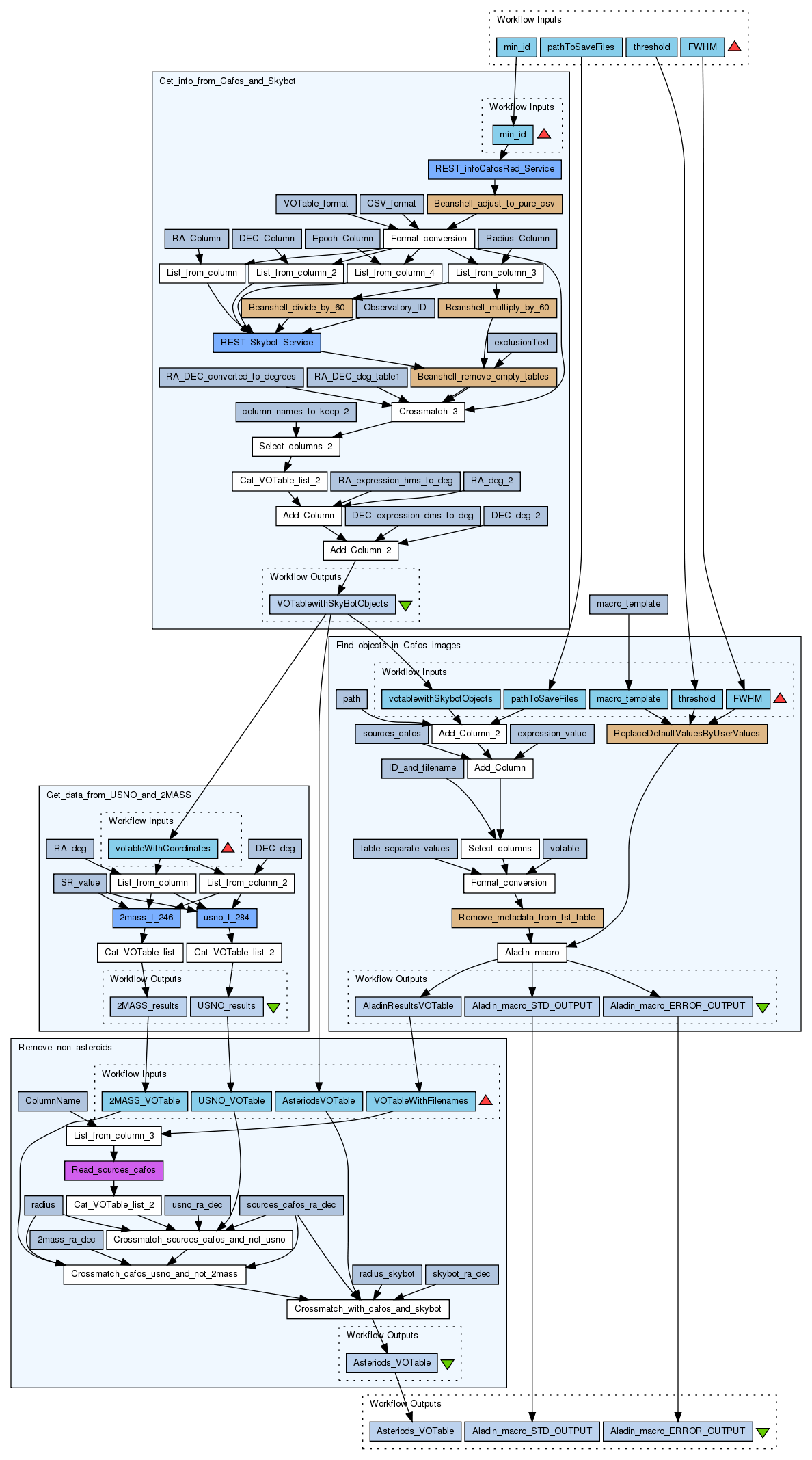

Preview

Download as scalable diagram (SVG)

Run

Run this Workflow in the Taverna Workbench...

Option 1:

Copy and paste this link into File > 'Open workflow location...'
http://myexperiment.org/workflows/3653/download?version=1
[ More Info Expand ]

Workflow Components

Authors (1)

Titles (1)

Descriptions (1)

Dependencies (0)

Inputs (4)

Name	Description
min_id	The workflow will retrieve the data in the range (min_id, latest id), being latest id the lastest id in the database.
pathToSaveFiles	Path where votables from sextractor will be stored. The path must include the last bar.
threshold	Threshold for sextractor. If this input is not provided the workflow will use the default value in the macro_template.
FWHM	Full width at half maximum of the PSF (Point Spread Function) for sextractor. If this input is not provided the workflow will use the default value in the macro_template.

Processors (5)

Name	Type	Description
Get_info_from_Cafos_and_Skybot	workflow	Create an VOTable with asteroids from CAHA observatory. It needs as input the minimun id that will be used to decide which data is retrieved from Cafos. In particular, you will the retrieve from min_id to the latest id in the database. The observatory id is fixed to CAHA.
macro_template	stringconstant	Value rm all; sync; mview 1; sync; cafos=get File(http://caha.sdc.cab.inta-csic.es:80/calto/jsp/descargaSci.jsp?id=$1&tipe=red&t=siap); sync; cm cafos log; sync; sources_cafos=get sextractor(cafos,"thresh=1.6","FWHM=1.2"); sync; export -votable sources_cafos $2 sync;
Find_objects_in_Cafos_images	workflow	Find objects in Cafos images using Aladin.
Get_data_from_USNO_and_2MASS	workflow
Remove_non_asteroids	workflow

Beanshells (6)

Name	Description	Inputs	Outputs
ReplaceDefaultValuesByUserValues	It replaces the default values for FWHM and threshold if they are provided by the user.	FWHM threshold script_in	script_out
Remove_metadata_from_tst_table		tst_with_metadata	tst_without_metadata
Beanshell_adjust_to_pure_csv		verticalBarSV	csv
Beanshell_remove_empty_tables	It removes from a list of votables the ones that has inside the text provided in the "exclusionText" parameter. For example: "No solar system object was found"	VOTableList exclusionText radiusList	ListWithNoEmptyTables radiusList_filtered
Beanshell_divide_by_60	The radious was in arcsec and it is converted to arcmin	radius_in	radius_out
Beanshell_multiply_by_60	The radious was in arcsec and it is converted to arcmin	radius_in	radius_out

Outputs (3)

Name	Description
Asteriods_VOTable
Aladin_macro_ERROR_OUTPUT
Aladin_macro_STD_OUTPUT

Datalinks (14)

Source	Sink
min_id	Get_info_from_Cafos_and_Skybot:min_id
pathToSaveFiles	Find_objects_in_Cafos_images:pathToSaveFiles
threshold	Find_objects_in_Cafos_images:threshold
FWHM	Find_objects_in_Cafos_images:FWHM
macro_template:value	Find_objects_in_Cafos_images:macro_template
Get_info_from_Cafos_and_Skybot:VOTablewithSkyBotObjects	Find_objects_in_Cafos_images:votablewithSkybotObjects
Get_info_from_Cafos_and_Skybot:VOTablewithSkyBotObjects	Get_data_from_USNO_and_2MASS:votableWithCoordinates
Get_data_from_USNO_and_2MASS:USNO_results	Remove_non_asteroids:USNO_VOTable
Get_data_from_USNO_and_2MASS:2MASS_results	Remove_non_asteroids:2MASS_VOTable
Find_objects_in_Cafos_images:AladinResultsVOTable	Remove_non_asteroids:VOTableWithFilenames
Get_info_from_Cafos_and_Skybot:VOTablewithSkyBotObjects	Remove_non_asteroids:AsteriodsVOTable
Remove_non_asteroids:Asteriods_VOTable	Asteriods_VOTable
Find_objects_in_Cafos_images:Aladin_macro_ERROR_OUTPUT	Aladin_macro_ERROR_OUTPUT
Find_objects_in_Cafos_images:Aladin_macro_STD_OUTPUT	Aladin_macro_STD_OUTPUT
