Retrieving information from HST ConeSearch and Image VO Services
Created: 2013-04-12 17:18:58
This workflow retieves information from Hubble Space Telescope VO Services in the form of VOTables. The input of the workflow is an ASCII file with a list of source names. This file is converted to a VOTable, and coordinates added with an extra-column needed to query SIAP Image service. The final result are two different VOTables issued as the response of both VO Services, Images VOTable has been previously filtered.

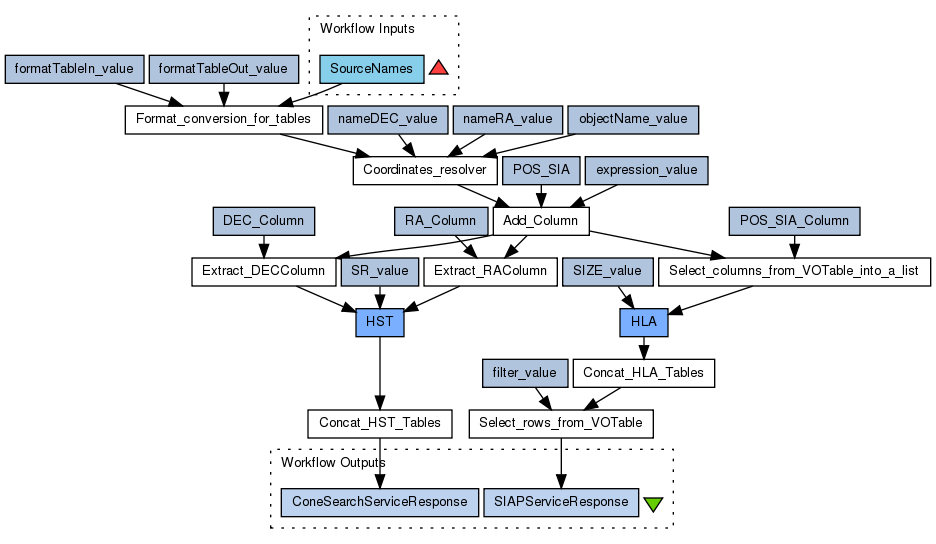

Preview
Run
Run this Workflow in the Taverna Workbench...
Workflow Components
Authors (1)
Titles (1)
| Retrieving information from HST ConeSearch and Image VO Services |
Descriptions (1)
| This workflow retieves information from Hubble Space Telescope VO Services in the form of VOTables. The input of the workflow is an ASCII file with a list of source names. This file is converted to a VOTable, and coordinates added with an extra-column needed to query SIAP Image service. The final result are two different VOTables issued as the response of both VO Services, Images VOTable has been previously filtered. |
Dependencies (0)
Inputs (1)
| Name |
Description |
| SourceNames |
List of Source Names
|
Processors (24)
| Name |
Type |
Description |
| Format_conversion_for_tables |
tpipe |
|
| formatTableIn_value |
stringconstant |
Valueascii |
| formatTableOut_value |
stringconstant |
Valuevotable |
| Coordinates_resolver |
tpipe |
|
| nameDEC_value |
stringconstant |
ValueDEC |
| nameRA_value |
stringconstant |
ValueRA |
| objectName_value |
stringconstant |
Valuecol1 |
| Add_Column |
tpipe |
|
| POS_SIA |
stringconstant |
ValuePOS_SIA |
| expression_value |
stringconstant |
ValuetoString($2)+", "+toString($3) |
| Select_columns_from_VOTable_into_a_list |
voutils |
|
| POS_SIA_Column |
stringconstant |
ValuePOS_SIA |
| Extract_RAColumn |
voutils |
|
| RA_Column |
stringconstant |
ValueRA |
| Extract_DECColumn |
voutils |
|
| DEC_Column |
stringconstant |
ValueDEC |
| SR_value |
stringconstant |
Value0.1 |
| HLA |
rest |
|
| SIZE_value |
stringconstant |
Value0.01 |
| HST |
rest |
|
| Concat_HST_Tables |
tcat |
|
| Concat_HLA_Tables |
tcat |
|
| Select_rows_from_VOTable |
tpipe |
|
| filter_value |
stringconstant |
Value$21<3000 |
Outputs (2)
| Name |
Description |
| ConeSearchServiceResponse |
|
| SIAPServiceResponse |
|
Datalinks (27)
| Source |
Sink |
| SourceNames |
Format_conversion_for_tables:voTable |
| formatTableIn_value:value |
Format_conversion_for_tables:formatTableIn |
| formatTableOut_value:value |
Format_conversion_for_tables:formatTableOut |
| Format_conversion_for_tables:outputTable |
Coordinates_resolver:voTable |
| nameDEC_value:value |
Coordinates_resolver:nameDEC |
| nameRA_value:value |
Coordinates_resolver:nameRA |
| objectName_value:value |
Coordinates_resolver:objectName |
| Coordinates_resolver:outputTable |
Add_Column:voTable |
| POS_SIA:value |
Add_Column:nameNewCol |
| expression_value:value |
Add_Column:expression |
| Add_Column:outputTable |
Select_columns_from_VOTable_into_a_list:voTable |
| POS_SIA_Column:value |
Select_columns_from_VOTable_into_a_list:ColumnName |
| Add_Column:outputTable |
Extract_RAColumn:voTable |
| RA_Column:value |
Extract_RAColumn:ColumnName |
| Add_Column:outputTable |
Extract_DECColumn:voTable |
| DEC_Column:value |
Extract_DECColumn:ColumnName |
| Select_columns_from_VOTable_into_a_list:list |
HLA:POS |
| SIZE_value:value |
HLA:SIZE |
| Extract_DECColumn:list |
HST:DEC |
| Extract_RAColumn:list |
HST:RA |
| SR_value:value |
HST:SR |
| HST:responseBody |
Concat_HST_Tables:votableList |
| HLA:responseBody |
Concat_HLA_Tables:votableList |
| Concat_HLA_Tables:outputFileOut |
Select_rows_from_VOTable:voTable |
| filter_value:value |
Select_rows_from_VOTable:filter |
| Concat_HST_Tables:outputFileOut |
ConeSearchServiceResponse |
| Select_rows_from_VOTable:outputTable |
SIAPServiceResponse |
