When did the fastest type II CME happened?

Created: 2012-10-21 17:26:24

Download Workflow

Simple query to the HELIO Event Catalogue to extract the start and end time of the fastest CME from the Wind Type II catalogue. Also it extracts the Xray Class from the flare associated to the CME

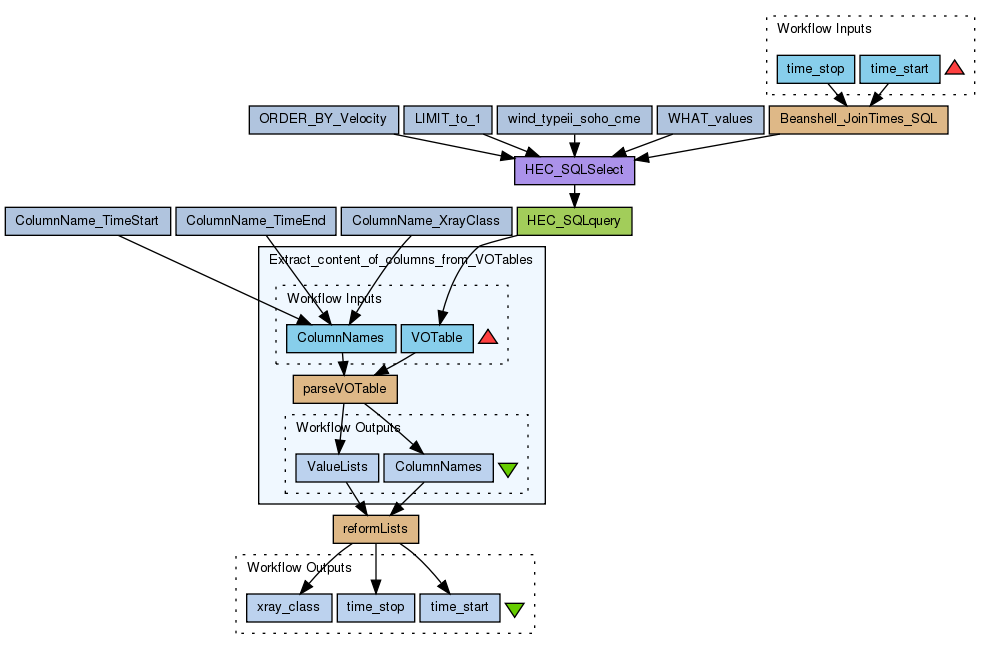

Preview

Download as scalable diagram (SVG)

Run

Run this Workflow in the Taverna Workbench...

Option 1:

Copy and paste this link into File > 'Open workflow location...'
http://myexperiment.org/workflows/3260/download?version=1
[ More Info Expand ]

Workflow Components

Authors (1)

Titles (1)

Descriptions (1)

Dependencies (0)

Inputs (2)

Name	Description
time_start	Starting time to search for the fastest event in the wind_typeII_soho_cme catalogue
time_stop	End time for search in the wind_typeii_soho_cme

Processors (12)

Name	Type	Description
Beanshell_JoinTimes_SQL	beanshell	Script String WHERE="time_start>='"+start_t+"' and time_end<'"+end_t+"'";
HEC_SQLSelect	xmlsplitter
ORDER_BY_Velocity	stringconstant	Value v_ps desc
LIMIT_to_1	stringconstant	Value 1
wind_typeii_soho_cme	stringconstant	Value wind_typeii_soho_cme
WHAT_values	stringconstant	Value time_start, time_end, loc, v_ps, xray_class
HEC_SQLquery	wsdl	Wsdl http://msslkz.mssl.ucl.ac.uk/helio_hec/HelioTavernaService?wsdl Wsdl Operation SQLSelect
Extract_content_of_columns_from_VOTables	workflow
ColumnName_TimeStart	stringconstant	Value time_start
ColumnName_TimeEnd	stringconstant	Value time_end
ColumnName_XrayClass	stringconstant	Value xray_class
reformLists	beanshell	Script for (int icol=0;icol

Beanshells (3)

Name	Inputs	Outputs
Beanshell_JoinTimes_SQL	start_t end_t condition	WHERE
reformLists	colNames values	timeStartList timeEndList xRayClassList
parseVOTable	voTable collumn	valueLists debug collumn

Outputs (3)

Name	Description
time_start
time_stop
xray_class

Datalinks (17)

Source	Sink
time_stop	Beanshell_JoinTimes_SQL:end_t
time_start	Beanshell_JoinTimes_SQL:start_t
Beanshell_JoinTimes_SQL:WHERE	HEC_SQLSelect:WHERE
ORDER_BY_Velocity:value	HEC_SQLSelect:ORDER_BY
LIMIT_to_1:value	HEC_SQLSelect:LIMIT
wind_typeii_soho_cme:value	HEC_SQLSelect:FROM
WHAT_values:value	HEC_SQLSelect:WHAT
HEC_SQLSelect:output	HEC_SQLquery:sql_select
HEC_SQLquery:response	Extract_content_of_columns_from_VOTables:VOTable
Extract_content_of_columns_from_VOTables:ColumnNames	reformLists:colNames
Extract_content_of_columns_from_VOTables:ValueLists	reformLists:values
ColumnName_TimeStart:value	Extract_content_of_columns_from_VOTables:ColumnNames
ColumnName_TimeEnd:value	Extract_content_of_columns_from_VOTables:ColumnNames
ColumnName_XrayClass:value	Extract_content_of_columns_from_VOTables:ColumnNames
reformLists:timeStartList	time_start
reformLists:timeEndList	time_stop
reformLists:xRayClassList	xray_class
