LASCO_CME_QUERY

Created: 2012-09-06 14:06:22 Last updated: 2012-09-06 14:15:27

Download Workflow

This workflows queries the LASCO CME list and returns a VOTable with the following fields pa, pa_width, v_final and v_diff which is abs(v_init-v_final)/2

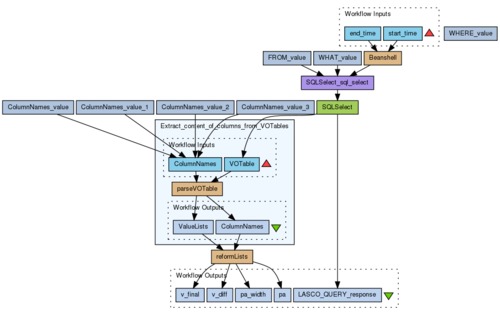

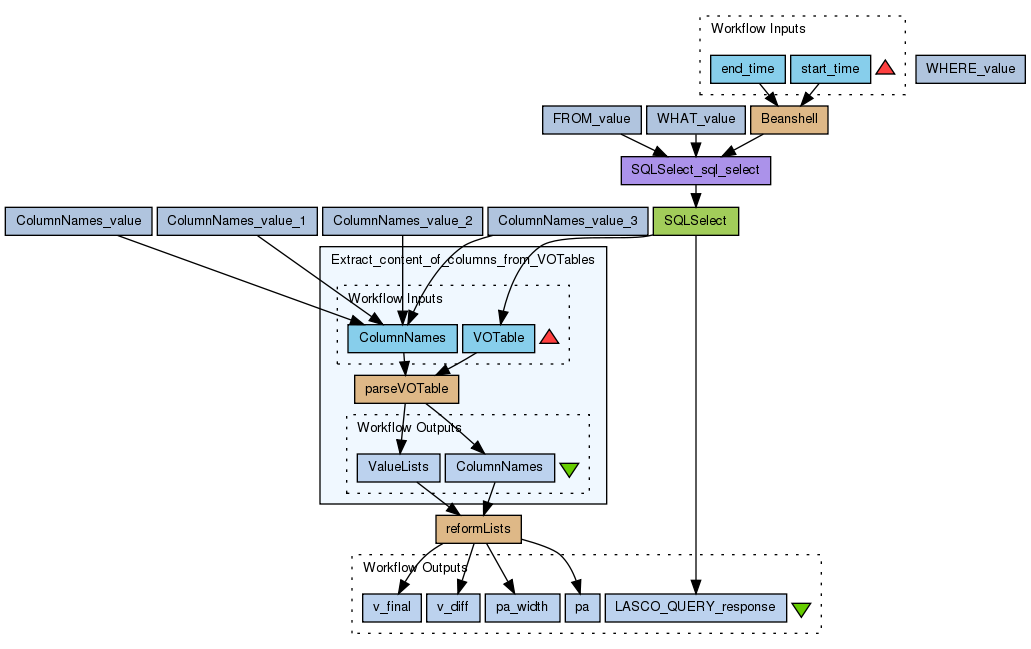

Preview

Download as scalable diagram (SVG)

Run

Run this Workflow in the Taverna Workbench...

Option 1:

Copy and paste this link into File > 'Open workflow location...'
http://myexperiment.org/workflows/3156/download?version=2
[ More Info Expand ]

Workflow Components

Authors (1)

Titles (1)

Descriptions (1)

Dependencies (0)

Inputs (2)

Name	Description
start_time
end_time

Processors (12)

Name	Type	Description
SQLSelect	wsdl	Wsdl http://festung1.oats.inaf.it:8080/helio-hec/HelioTavernaService?wsdl Wsdl Operation SQLSelect
SQLSelect_sql_select	xmlsplitter
FROM_value	stringconstant	Value soho_lasco_cme
WHERE_value	stringconstant	Value time_start>'2004-04-11T04:00:00' and time_start<'2004-04-11T05:00:00'
WHAT_value	stringconstant	Value pa, pa_width, abs(v_init-v_final)/2 as V_DIFF, v_final
Beanshell	beanshell	Script String WHERE="time_start>='"+start_t+"' and time_start<'"+end_t+"'";
Extract_content_of_columns_from_VOTables	workflow
ColumnNames_value	stringconstant	Value pa
ColumnNames_value_1	stringconstant	Value pa_width
ColumnNames_value_2	stringconstant	Value v_diff
ColumnNames_value_3	stringconstant	Value v_final
reformLists	beanshell	Script List paList = new ArrayList(); List paWidthList = new ArrayList(); List vDiffList = new ArrayList(); List vFinalList = new ArrayList(); for (int icol=0;icol

Beanshells (3)

Name	Inputs	Outputs
Beanshell	start_t end_t condition	WHERE
reformLists	colNames values	paList paWidthList vDiffList vFinalList
parseVOTable	voTable collumn	valueLists debug collumn

Outputs (5)

Name	Description
LASCO_QUERY_response
pa
pa_width
v_diff
v_final

Datalinks (18)

Source	Sink
SQLSelect_sql_select:output	SQLSelect:sql_select
FROM_value:value	SQLSelect_sql_select:FROM
WHAT_value:value	SQLSelect_sql_select:WHAT
Beanshell:WHERE	SQLSelect_sql_select:WHERE
start_time	Beanshell:start_t
end_time	Beanshell:end_t
SQLSelect:response	Extract_content_of_columns_from_VOTables:VOTable
Extract_content_of_columns_from_VOTables:ColumnNames	reformLists:colNames
Extract_content_of_columns_from_VOTables:ValueLists	reformLists:values
ColumnNames_value:value	Extract_content_of_columns_from_VOTables:ColumnNames
ColumnNames_value_2:value	Extract_content_of_columns_from_VOTables:ColumnNames
ColumnNames_value_1:value	Extract_content_of_columns_from_VOTables:ColumnNames
ColumnNames_value_3:value	Extract_content_of_columns_from_VOTables:ColumnNames
SQLSelect:response	LASCO_QUERY_response
reformLists:paList	pa
reformLists:paWidthList	pa_width
reformLists:vDiffList	v_diff
reformLists:vFinalList	v_final

Coordinations (0)

Information Workflow Type

Taverna 2

Information Uploader

Baptiste Cecconi

Information License

All versions of this Workflow are licensed under:

Information Version 2 (latest) (of 2)

Information Credits (1)

(People/Groups)

Baptiste Cecconi

Information Attributions (1)

(Workflows/Files)

Extract content of columns from VOTables

Information Tags (0)

None

Log in to add Tags

Information Shared with Groups (0)

None

Information Featured In Packs (0)

None

Log in to add to one of your Packs

Information Attributed By (2)

(Workflows/Files)

Information Favourited By (0)

No one

Information Statistics

1833 viewings

1171 downloads

[ see breakdown ]

Citations (0)

None

Version History

In chronological order:

LASCO_CME_QUERY

Created by Baptiste Cecconi on Thursday 06 September 2012 14:06:21 (UTC)
LASCO_CME_QUERY

Created by Baptiste Cecconi on Thursday 06 September 2012 14:15:27 (UTC)
