Number of features in a month in a year

Created: 2012-08-21 10:57:12

Download Workflow

Returns the number of features in a HFC catalogue which occured in a month in a year given as inputs.

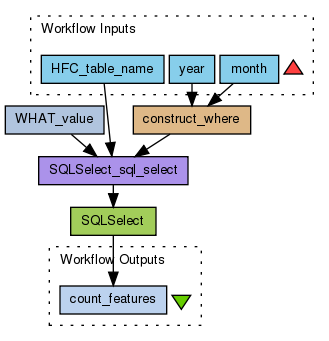

Preview

Run

Run this Workflow in the Taverna Workbench...

Option 1:

Copy and paste this link into File > 'Open workflow location...'
http://myexperiment.org/workflows/3110/download?version=1
[ More Info Expand ]

Workflow Components

Authors (1)

Titles (1)

Descriptions (1)

Dependencies (0)

Inputs (3)

Name	Description
HFC_table_name	a table name in the HFC which contains a field DATE_OBS VIEW_AR_HQI VIEW_CH_HQI VIEW_FIL_HQI
month	requested month
year	requested year

Processors (4)

Name	Type	Description
SQLSelect	wsdl	Wsdl http://voparis-helio.obspm.fr/hfc-hqi/HelioTavernaService?wsdl Wsdl Operation SQLSelect
SQLSelect_sql_select	xmlsplitter
WHAT_value	stringconstant	Value COUNT(DATE_OBS)
construct_where	beanshell	Script where_out="MONTH(DATE_OBS)="+month+" AND YEAR(DATE_OBS)="+year;

Beanshells (1)

Name	Description	Inputs	Outputs
construct_where		year month	where_out

Outputs (1)

Name	Description
count_features	VOTable with the number of features in catalogue for that year and month

Datalinks (7)

Source	Sink
SQLSelect_sql_select:output	SQLSelect:sql_select
WHAT_value:value	SQLSelect_sql_select:WHAT
HFC_table_name	SQLSelect_sql_select:FROM
construct_where:where_out	SQLSelect_sql_select:WHERE
month	construct_where:month
year	construct_where:year
SQLSelect:response	count_features

Coordinations (0)

Information Workflow Type

Taverna 2

Information Uploader

Anja Le Blanc

Information License

All versions of this Workflow are licensed under:

BSD License

Information Version 1 (of 1)

Information Credits (1)

(People/Groups)

Anja Le Blanc

Information Attributions (0)

(Workflows/Files)

None

Information Tags (5)

Uploader tags

Log in to add Tags

Information Shared with Groups (1)

HELIO

Information Featured In Packs (0)

None

Log in to add to one of your Packs

Information Attributed By (0)

(Workflows/Files)

None

Information Favourited By (0)

No one

Information Statistics

1413 viewings

1088 downloads

[ see breakdown ]

Citations (0)

None

Version History

In chronological order:

Number of features in a month in a year

Created by Anja Le Blanc on Tuesday 21 August 2012 10:57:11 (UTC)

Reviews (0)

No reviews yet

Be the first to review!

Comments (0)

View Timeline

No comments yet

Log in to make a comment
