Calculate ellipses that describe a galaxy using iraf

Created: 2012-08-07 09:32:01      Last updated: 2012-09-11 06:41:01

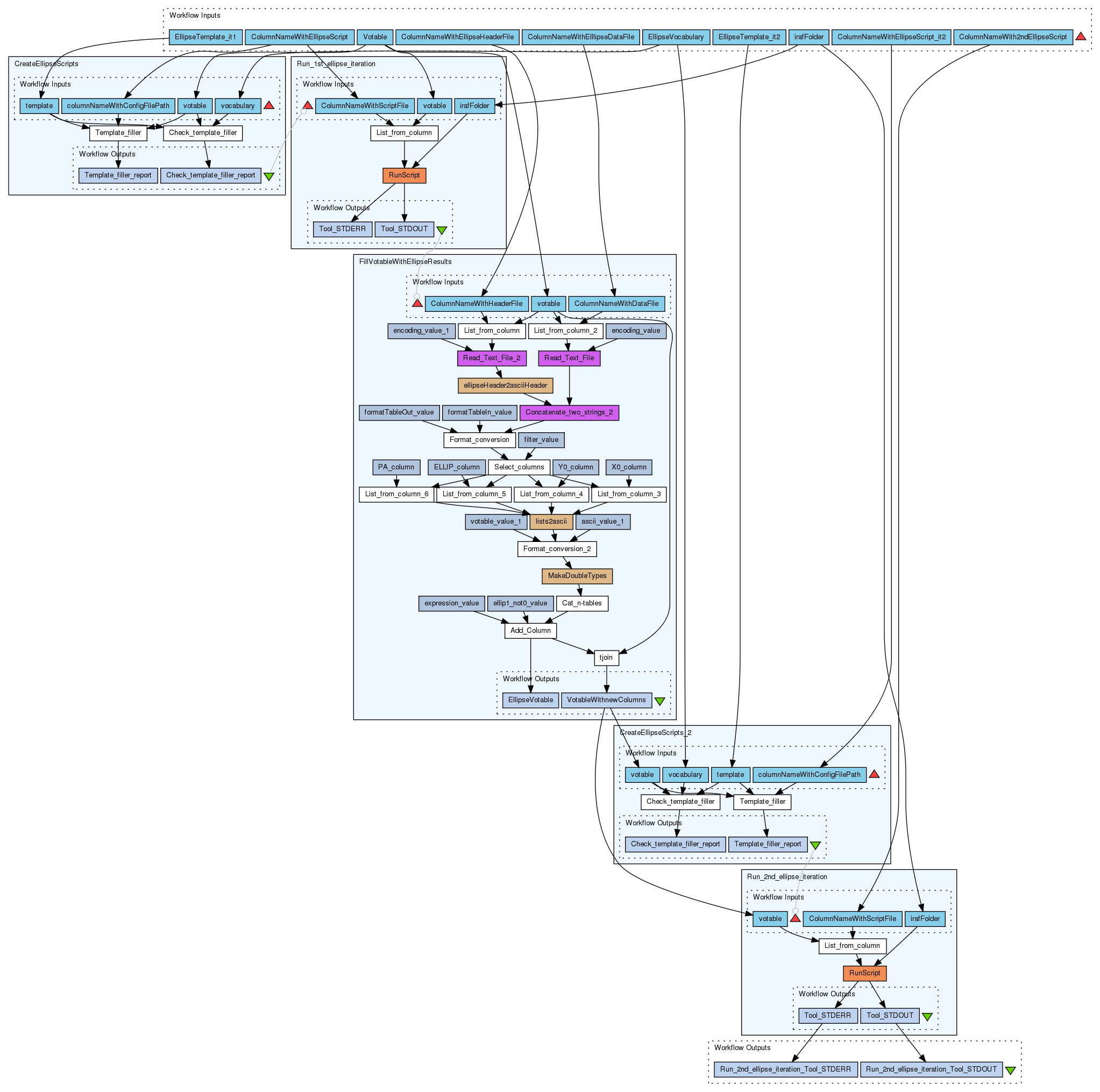

This workflow calculate the ellipses that better match a galaxy by doing to iterations. In the first one the center and the outer ellipse are aproximated because there might be bars that affect to the inner ellipses. In the second one, files with the ellipse data are built. It creates ellipse scripts using data from a votable, it runs ellipse, its results are added to the votable, it creates new scripts for ellipse using the previous results, it runs ellipse a second time and it finally includes the results into the votable. It requires the specification of the columns that contain file names (these files should be accesibles from taverna). Scripts are created (one for every row in the votable) using a template whose keys are replaced by data from a votable. Keys must appear also in the vocabulary file and match column names in the votable. It uses, pyraf (ellipse task), astrotaverna plugin (http://wf4ever.github.com/astrotaverna/).

Information Preview

Information Run

Run this Workflow in the Taverna Workbench...

Option 1:

Copy and paste this link into File > 'Open workflow location...'
http://myexperiment.org/workflows/3068/download?version=1
[ More InfoExpand ]


Information Workflow Components

Information Authors (1)
Information Titles (1)
Information Descriptions (1)
Information Dependencies (0)
Inputs (10)
Processors (5)
Beanshells (3)
Outputs (2)
Datalinks (19)
Coordinations (3)

Information Workflow Type

Taverna 2
