Check in UOC which instruments were observing at a given time period and place

None

where_string = "time_obs<= '"+ time_end +"' and time_end>= '" +time_start+"'" +
  " and fovc_x_arcsec-(fovx/2)<= " + x + " and fovc_x_arcsec+(fovx/2) >=" + x +" and fovc_y_arcsec-(fovy/2) <=" + y + " and fovc_y_arcsec+(fovy/2) >= " + y;

Name	Description
time_start
time_end	time end of the time period
x	x position on the Sun
y	y postion on the Sun

Name	Type	Description
UOC_sql	wsdl	Wsdl http://festung1.oats.inaf.it:8080/helio-uoc/HelioTavernaService?wsdl Wsdl Operation SQLSelect
SQLSelect_sql_select	xmlsplitter
FROM_value	stringconstant	Value pointed_instrument as pi inner join instrument_information as ii on pi.instrument_information_table_id = ii.id
WHAT_value	stringconstant	Value distinct ii.obsinst_key
UOC_where	beanshell	Script where_string = "time_obs<= '"+ time_end +"' and time_end>= '" +time_start+"'" + " and fovc_x_arcsec-(fovx/2)<= " + x + " and fovc_x_arcsec+(fovx/2) >=" + x +" and fovc_y_arcsec-(fovy/2) <=" + y + " and fovc_y_arcsec+(fovy/2) >= " + y;

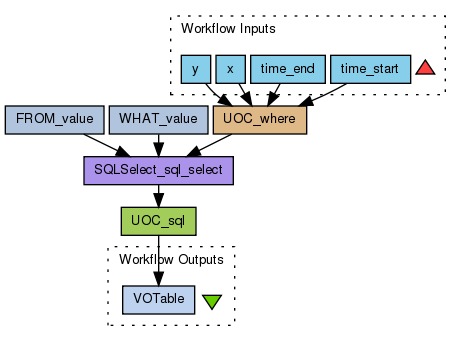

Source	Sink
SQLSelect_sql_select:output	UOC_sql:sql_select
FROM_value:value	SQLSelect_sql_select:FROM
WHAT_value:value	SQLSelect_sql_select:WHAT
UOC_where:where_string	SQLSelect_sql_select:WHERE
time_end	UOC_where:time_end
time_start	UOC_where:time_start
x	UOC_where:x
y	UOC_where:y
UOC_sql:response	VOTable
