Planning Overview (Scp, Migration, Characterisation, QA)

Created: 2012-02-28 08:54:03

Download Workflow

Copies an image from a remote path using scp. Then starts a migration action on the image and extracts properties from the original and migrated image. The properties are compared and on the image data itself, QA algorithms are started.

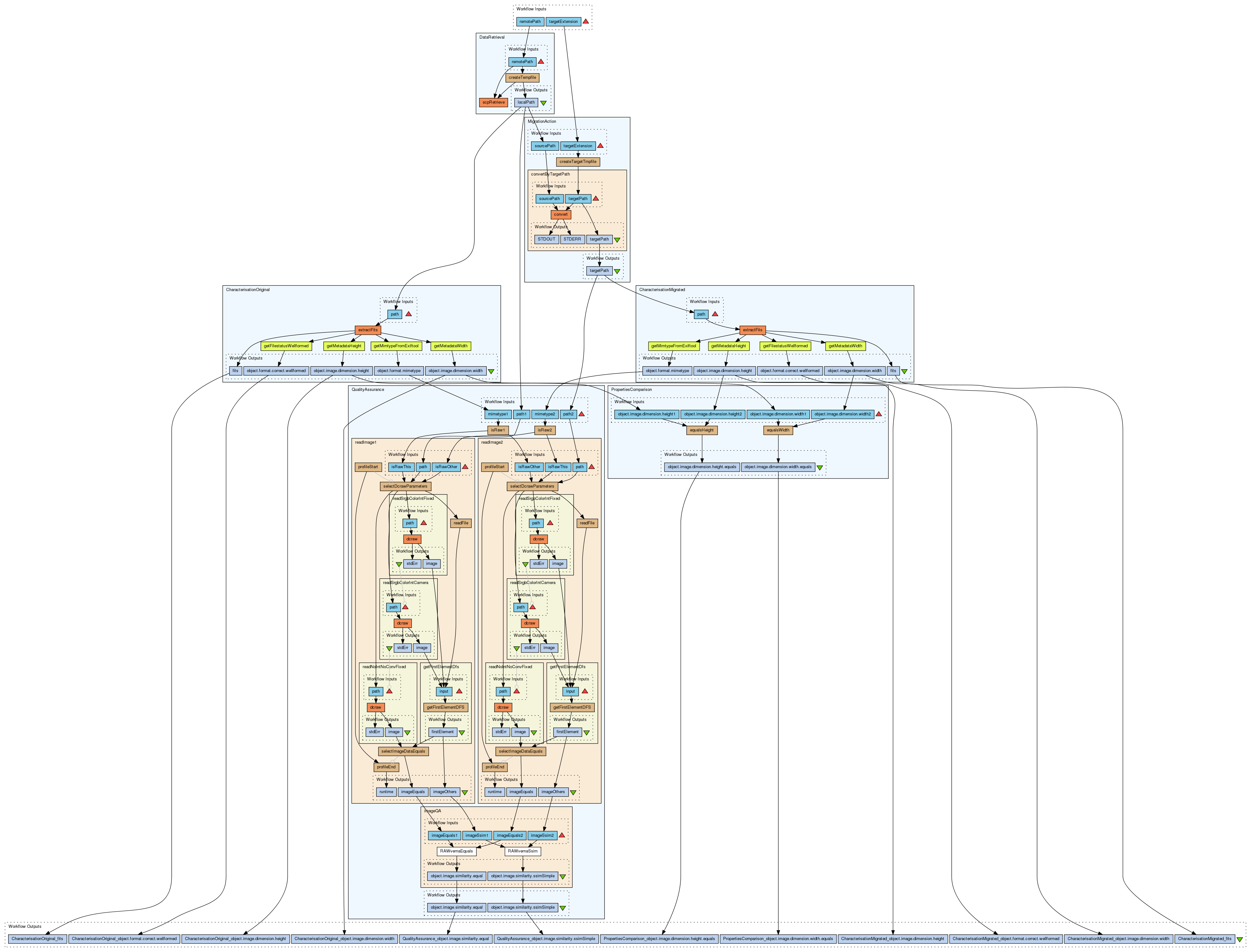

Preview

Download as scalable diagram (SVG)

Run

Run this Workflow in the Taverna Workbench...

Option 1:

Copy and paste this link into File > 'Open workflow location...'
http://myexperiment.org/workflows/2769/download?version=1
[ More Info Expand ]

Workflow Components

Authors (0)

Titles (1)

Descriptions (1)

Dependencies (0)

Inputs (2)

Name	Description
remotePath
targetExtension

Processors (6)

Name	Type	Description
DataRetrieval	workflow
MigrationAction	workflow
QualityAssurance	workflow
CharacterisationOriginal	workflow
CharacterisationMigrated	workflow
PropertiesComparison	workflow

Beanshells (12)

Name	Inputs	Outputs
isRaw1	mimetype	isRaw
isRaw2	mimetype	isRaw
equalsWidth	value1 value2	equals
equalsHeight	value1 value2	equals
getFirstElementDFS	input	firstElement
selectDcrawParameters	path isRawThis isRawOther	dcraw_noInt_noConv_fixed_path dcraw_srgb_colorInt_camera_path dcraw_srgb_colorInt_fixed_path nonraw
readFile	path	image
selectImageDataEquals	imageRaw imageOthers	imageEquals
profileStart		startTimestamp
profileEnd	startTimestamp	runtime
createTempfile	extensionString	extension tmpfilePath
createTargetTmpfile	extension	tmpfilePath

Outputs (12)

Name	Description
CharacterisationOriginal_fits
CharacterisationMigrated_fits
CharacterisationOriginal_object.format.correct.wellformed
CharacterisationOriginal_object.image.dimension.height
CharacterisationOriginal_object.image.dimension.width
CharacterisationMigrated_object.format.correct.wellformed
CharacterisationMigrated_object.image.dimension.height
CharacterisationMigrated_object.image.dimension.width
PropertiesComparison_object.image.dimension.height.equals
PropertiesComparison_object.image.dimension.width.equals
QualityAssurance_object.image.similarity.equal
QualityAssurance_object.image.similarity.ssimSimple

Datalinks (25)

Source	Sink
remotePath	DataRetrieval:remotePath
DataRetrieval:localPath	MigrationAction:sourcePath
targetExtension	MigrationAction:targetExtension
DataRetrieval:localPath	QualityAssurance:path1
MigrationAction:targetPath	QualityAssurance:path2
CharacterisationOriginal:object.format.mimetype	QualityAssurance:mimetype1
CharacterisationMigrated:object.format.mimetype	QualityAssurance:mimetype2
DataRetrieval:localPath	CharacterisationOriginal:path
MigrationAction:targetPath	CharacterisationMigrated:path
CharacterisationOriginal:object.image.dimension.width	PropertiesComparison:object.image.dimension.width1
CharacterisationOriginal:object.image.dimension.height	PropertiesComparison:object.image.dimension.height1
CharacterisationMigrated:object.image.dimension.width	PropertiesComparison:object.image.dimension.width2
CharacterisationMigrated:object.image.dimension.height	PropertiesComparison:object.image.dimension.height2
CharacterisationOriginal:fits	CharacterisationOriginal_fits
CharacterisationMigrated:fits	CharacterisationMigrated_fits
CharacterisationOriginal:object.format.correct.wellformed	CharacterisationOriginal_object.format.correct.wellformed
CharacterisationOriginal:object.image.dimension.height	CharacterisationOriginal_object.image.dimension.height
CharacterisationOriginal:object.image.dimension.width	CharacterisationOriginal_object.image.dimension.width
CharacterisationMigrated:object.format.correct.wellformed	CharacterisationMigrated_object.format.correct.wellformed
CharacterisationMigrated:object.image.dimension.height	CharacterisationMigrated_object.image.dimension.height
CharacterisationMigrated:object.image.dimension.width	CharacterisationMigrated_object.image.dimension.width
PropertiesComparison:object.image.dimension.height.equals	PropertiesComparison_object.image.dimension.height.equals
PropertiesComparison:object.image.dimension.width.equals	PropertiesComparison_object.image.dimension.width.equals
QualityAssurance:object.image.similarity.equal	QualityAssurance_object.image.similarity.equal
QualityAssurance:object.image.similarity.ssimSimple	QualityAssurance_object.image.similarity.ssimSimple
