Radio lists search over time period

Created: 2012-02-13 12:02:47 Last updated: 2012-02-14 15:05:42

Download Workflow

This workflow searches the wind stereo II IV radioburst list, wind tyhpe II soho cme list, hfc radioburst type III list, tsrs solar radio event list and combines the return of these lists chronologically. Only time_start, time_end, and comment sections are preserved in the result list.

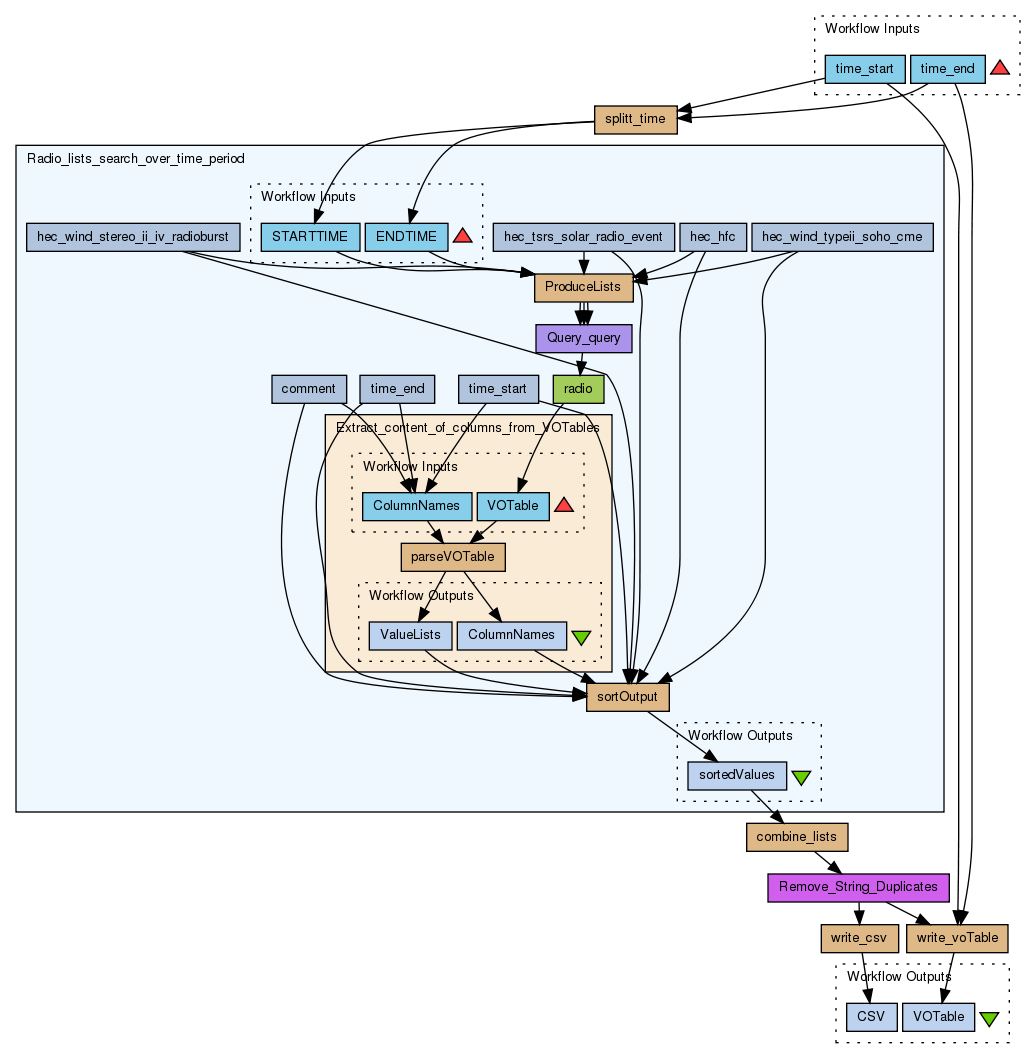

Preview

Download as scalable diagram (SVG)

Run

Run this Workflow in the Taverna Workbench...

Option 1:

Copy and paste this link into File > 'Open workflow location...'
https://myexperiment.org/workflows/2735/download?version=2
[ More Info Expand ]

Workflow Components

Authors (1)

Titles (1)

Descriptions (1)

Dependencies (0)

Inputs (2)

Name	Description
time_start	Start time for the search in HEC lists
time_end	End time for the search in HEC lists

Processors (6)

\n"); } if(parts.length==3){ sb.append(" \n"); } sb.append(" \n"); } } StringBuilder sb = new StringBuilder(); writeHeader(); writeValues(); writeFooter(); votable=sb.toString();

Name

Type

Description

splitt_time

beanshell

Script

import java.text.SimpleDateFormat;

SimpleDateFormat sdf = new SimpleDateFormat("yyyy-MM-dd'T'HH:mm:ss");

start_list = new ArrayList();
end_list = new ArrayList();
long s = sdf.parse(time_start).getTime();
long e = sdf.parse(time_end).getTime();
long t=s;
long year = 100L*24L*60L*60L*1000L;
for(; t

Radio_lists_search_over_time_period

workflow

write_voTable

beanshell

Script

import java.text.SimpleDateFormat;

void writeHeader(){
SimpleDateFormat sdf = new SimpleDateFormat("yyyy-MM-dd'T'HH:mm:ssZ");
sb.append("\n");
sb.append("\n");
sb.append("\n");
sb.append("\n");
sb.append("Sorted Output of HEC burst events\n");
sb.append("\n");
sb.append("\n");
sb.append("\n");
sb.append("Start time of the burst.\n");
sb.append("\n");
sb.append("\n");
sb.append("End time of the burst.\n");
sb.append("\n");
sb.append("\n");
sb.append("Comments.\n");
sb.append("\n");
sb.append("\n");
sb.append("Comments.\n");
sb.append("\n");
sb.append("\n");
sb.append("\n");
}

void writeFooter(){
sb.append("\n");
sb.append("\n");
sb.append("\n");
sb.append("\n");
sb.append("\n");
}

void writeValues(){

  for(int i=0;i\n");
    String[] parts = data.get(i).split(",");
    for(int j=0;j").append(parts[j]).append("

write_csv

beanshell

Script

StringBuilder sb= new StringBuilder("time_start,time_end,hec_list,comment\n");
for(int i= 0;i

Remove_String_Duplicates

localworker

Script

List strippedlist = new ArrayList();
for (Iterator i = stringlist.iterator(); i.hasNext();) {
	String item = (String) i.next();
	if (strippedlist.contains(item) == false) {
		strippedlist.add(item);
	}
}

combine_lists

beanshell

Script

values = new ArrayList();
for(int i=0; i

Beanshells (7)

Name	Inputs	Outputs
splitt_time	time_start time_end	start_list end_list
write_voTable	data start end	votable
write_csv	data	csv
combine_lists	value_list	values
parseVOTable	voTable collumn	valueLists debug collumn
ProduceLists	lists start end	lists_out start_times end_times
sortOutput	values columns lists start end comment	sortedValues

Outputs (2)

Name	Description
VOTable	VOTable
CSV	Comma Separeted List

Datalinks (12)

Source	Sink
time_end	splitt_time:time_end
time_start	splitt_time:time_start
splitt_time:start_list	Radio_lists_search_over_time_period:STARTTIME
splitt_time:end_list	Radio_lists_search_over_time_period:ENDTIME
time_start	write_voTable:start
time_end	write_voTable:end
Remove_String_Duplicates:strippedlist	write_voTable:data
Remove_String_Duplicates:strippedlist	write_csv:data
combine_lists:values	Remove_String_Duplicates:stringlist
Radio_lists_search_over_time_period:sortedValues	combine_lists:value_list
write_voTable:votable	VOTable
write_csv:csv	CSV

Coordinations (0)

Information Workflow Type

Taverna 2

Information Uploader

Anja Le Blanc

Information License

All versions of this Workflow are licensed under:

Information Version 2 (latest) (of 2)

Information Credits (1)

(People/Groups)

Anja Le Blanc

Information Attributions (0)

(Workflows/Files)

None

Information Tags (7)

Uploader tags

Log in to add Tags

Information Shared with Groups (1)

HELIO

Information Featured In Packs (0)

None

Log in to add to one of your Packs

Information Attributed By (0)

(Workflows/Files)

None

Information Favourited By (0)

No one

Information Statistics

1969 viewings

1275 downloads

[ see breakdown ]

Citations (0)

None

Version History

In chronological order:

Radio lists search over time period

Created by Anja Le Blanc on Monday 13 February 2012 12:02:47 (UTC)
Radio lists search over time period

Created by Anja Le Blanc on Tuesday 14 February 2012 15:05:41 (UTC)

Revision comment:

this version works on longer periods of time
