Match concept profiles

Created: 2011-12-02 09:07:34 Last updated: 2014-07-14 13:31:23

Download Workflow

The workflow can be used to match a set of concept profiles with another set of concept profiles. The result is a list of concepts ordered by their match to the query concept profiles.

The workflow matches two sets of concept profiles. At the time of writing the concepts are derived from human, rat, and mouse terminologies, ontologies, and database identifiers. The profiles are lists of concepts ranked by their association with the identifying concept, as determined by co-location statistics computed from MedLine (up until 2009 at the time of writing).

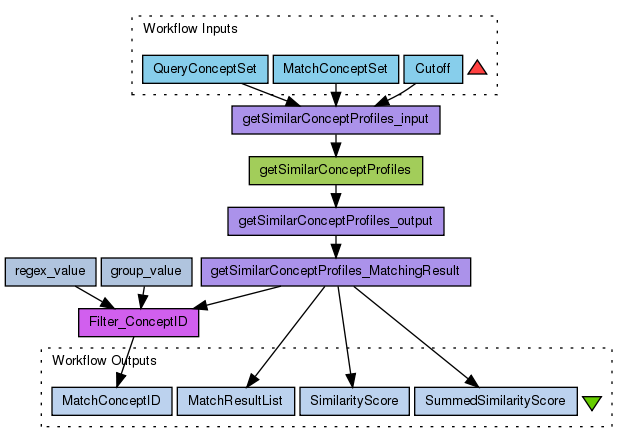

Preview

Download as scalable diagram (SVG)

Run

Run this Workflow in the Taverna Workbench...

Option 1:

Copy and paste this link into File > 'Open workflow location...'
http://myexperiment.org/workflows/2620/download?version=2
[ More Info Expand ]

Workflow Components

Authors (1)

Titles (1)

Descriptions (1)

Dependencies (0)

Inputs (3)

Name	Description
Cutoff	The number of resulting matched concepts that will be shown.
MatchConceptSet	The ConceptSet that is to be matched. For example a list consisting of concept ids: 3088049, 3088115, 3089563, 3090191, 3092619, 3094840, 3098813, 3103320, 3103643, 3108241, 3109737
QueryConceptSet	The ConceptSet (a list of concept identifiers) to be queried. For example: 4275360

Processors (7)

Name	Type	Description
getSimilarConceptProfiles	wsdl	Wsdl http://ws.biosemantics.org/ConceptRecognizerService?wsdl Wsdl Operation getSimilarConceptProfiles
getSimilarConceptProfiles_input	xmlsplitter
getSimilarConceptProfiles_output	xmlsplitter
getSimilarConceptProfiles_MatchingResult	xmlsplitter
Filter_ConceptID	localworker	Script import java.util.regex.*; filteredlist = new ArrayList(); Pattern thePat = Pattern.compile(regex); int theGroup = Integer.parseInt(group); for (Iterator i = stringlist.iterator(); i.hasNext();) { String item = (String) i.next(); Matcher matcher = thePat.matcher(item); if (matcher.find()) { filteredlist.add(matcher.group(theGroup)); } }
regex_value	stringconstant	Value
group_value	stringconstant	Value 1

Beanshells (0)

Outputs (4)

Name	Description
MatchResultList
SimilarityScore
SummedSimilarityScore
MatchConceptID

Datalinks (13)

Source	Sink
getSimilarConceptProfiles_input:output	getSimilarConceptProfiles:parameters
Cutoff	getSimilarConceptProfiles_input:cutoffValue
QueryConceptSet	getSimilarConceptProfiles_input:queryConceptProfileList
MatchConceptSet	getSimilarConceptProfiles_input:matchConceptProfileList
getSimilarConceptProfiles:parameters	getSimilarConceptProfiles_output:input
getSimilarConceptProfiles_output:MatchingResult	getSimilarConceptProfiles_MatchingResult:input
regex_value:value	Filter_ConceptID:regex
group_value:value	Filter_ConceptID:group
getSimilarConceptProfiles_MatchingResult:MatchConceptProfileList	Filter_ConceptID:stringlist
getSimilarConceptProfiles_MatchingResult:MatchConceptProfileList	MatchResultList
getSimilarConceptProfiles_MatchingResult:SimilarityScoreLists	SimilarityScore
getSimilarConceptProfiles_MatchingResult:SummedSimilarityScoreList	SummedSimilarityScore
Filter_ConceptID:filteredlist	MatchConceptID

Coordinations (0)

Information Workflow Type

Taverna 2

Information Uploader

Marco Roos

Information License

All versions of this Workflow are licensed under:

Information Version 2 (of 6)

Information Credits (4)

(People/Groups)

Information Attributions (0)

(Workflows/Files)

None

Information Tags (14)

Uploader tags

Log in to add Tags

Information Shared with Groups (1)

BioSemantics

Information Featured In Packs (4)

Log in to add to one of your Packs

Information Attributed By (3)

(Workflows/Files)

Information Favourited By (0)

No one

Information Statistics

4251 viewings

1624 downloads

[ see breakdown ]

Citations (0)

None

Version History

In chronological order:

Match concept profiles

Created by Marco Roos on Friday 02 December 2011 09:07:34 (UTC)
Match concept profiles

Created by Kristina Hettne on Tuesday 26 June 2012 12:59:33 (UTC)

Revision comment:

Minor modifications.
Match concept profiles

Created by Kristina Hettne on Wednesday 18 July 2012 13:56:02 (UTC)

Revision comment:

Added annotations.
Match concept profiles

Created by Kristina Hettne on Friday 14 September 2012 09:57:48 (UTC)
Match concept profiles

Created by Kristina Hettne on Tuesday 05 February 2013 21:09:50 (UTC)
Match concept profiles

Created by Kristina Hettne on Monday 14 July 2014 13:31:23 (UTC)

Revision comment:

Edited examples to reflect latest concept database update. Added extra output port for the individual similarity scores.
