Latitude with beanshell

Created: 2011-10-06 03:58:11 Last updated: 2011-10-06 04:32:39

Download Workflow

This workflow takes in a string value or list of values and pulls out latitude coordinates formatted as ##-##(N or S) using the following regular expression: \d\d-\d\d(N|S). The coordinates are processed and formatted to be in the form required by the web service used in my "Elevation plot" workflow.

This workflow contains primarily string manipulation. For many of the text and list services used, the beanshell script needed to be modified in order to produce the formatting I required. All modified services contain documentation.

This workflow is very similar to my "Longitude with beanshell" workflow, which performs similar manipulations between longitude coordinate formats.

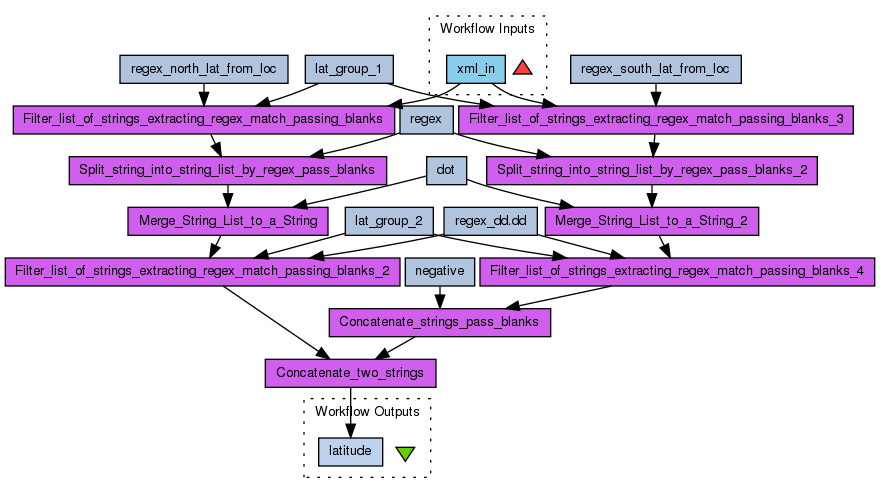

Preview

Download as scalable diagram (SVG)

Run

Run this Workflow in the Taverna Workbench...

Option 1:

Copy and paste this link into File > 'Open workflow location...'
http://myexperiment.org/workflows/2471/download?version=1
[ More Info Expand ]

Workflow Components

Authors (0)

Titles (0)

Descriptions (0)

Dependencies (0)

Inputs (1)

Name	Description
xml_in

Processors (18)

Name	Type	Description
lat_group_2	stringconstant	Value 0
regex_north_lat_from_loc	stringconstant	Value \d\d-\d\dN
regex_dd.dd	stringconstant	Value \d\d.\d\d
regex	stringconstant	Value -
dot	stringconstant	Value .
Merge_String_List_to_a_String	localworker	Script String seperatorString = "\n"; if (seperator != void) { seperatorString = seperator; } StringBuffer sb = new StringBuffer(); for (Iterator i = stringlist.iterator(); i.hasNext();) { String item = (String) i.next(); sb.append(item); if (i.hasNext()) { sb.append(seperatorString); } } concatenated = sb.toString();
lat_group_1	stringconstant	Value 0
Filter_list_of_strings_extracting_regex_match_passing_blanks	localworker	Script import java.util.regex.; filteredlist = new ArrayList(); Pattern thePat = Pattern.compile(regex); int theGroup = Integer.parseInt(group); for (Iterator i = stringlist.iterator(); i.hasNext();) { String item = (String) i.next(); /* blank added to that the filter would pass blank values. This is necessary in order to realign the corresponding latitude / / and longitude values after they're separately reformatted in nested workflows */ String blank = ""; Matcher matcher = thePat.matcher(item); if (matcher.find()) { filteredlist.add(matcher.group(theGroup)); } / else added to pass blank */ else { filteredlist.add(blank); } }
Split_string_into_string_list_by_regex_pass_blanks	localworker	Script List split = new ArrayList(); if (!string.equals("")) { String regexString = ","; if (regex != void) { regexString = regex; } String[] result = string.split(regexString); for (int i = 0; i < result.length; i++) { split.add(result[i]); } } /* else if added to pass blank strings into the split list */ else if (string.equals("")) { split.add(string); }
Filter_list_of_strings_extracting_regex_match_passing_blanks_2	localworker	Script import java.util.regex.; filteredlist = new ArrayList(); Pattern thePat = Pattern.compile(regex); int theGroup = Integer.parseInt(group); for (Iterator i = stringlist.iterator(); i.hasNext();) { String item = (String) i.next(); /* blank added to that the filter would pass blank values. This is necessary in order to realign the corresponding latitude / / and longitude values after they're separately reformatted in nested workflows */ String blank = ""; Matcher matcher = thePat.matcher(item); if (matcher.find()) { filteredlist.add(matcher.group(theGroup)); } / else added to pass blank */ else { filteredlist.add(blank); } }
Concatenate_strings_pass_blanks	localworker	Script / concatenate_two_strings changed to pass blank strings on. here, the string constant is a hyphen, to convert South Lat or West Long to negatives / if (string2.equals("")){ output = string2; } else{ output = string1 + string2; }
Filter_list_of_strings_extracting_regex_match_passing_blanks_3	localworker	Script import java.util.regex.; filteredlist = new ArrayList(); Pattern thePat = Pattern.compile(regex); int theGroup = Integer.parseInt(group); for (Iterator i = stringlist.iterator(); i.hasNext();) { String item = (String) i.next(); /* blank added to that the filter would pass blank values. This is necessary in order to realign the corresponding latitude / / and longitude values after they're separately reformatted in nested workflows */ String blank = ""; Matcher matcher = thePat.matcher(item); if (matcher.find()) { filteredlist.add(matcher.group(theGroup)); } / else added to pass blank */ else { filteredlist.add(blank); } }
Filter_list_of_strings_extracting_regex_match_passing_blanks_4	localworker	Script import java.util.regex.; filteredlist = new ArrayList(); Pattern thePat = Pattern.compile(regex); int theGroup = Integer.parseInt(group); for (Iterator i = stringlist.iterator(); i.hasNext();) { String item = (String) i.next(); /* blank added to that the filter would pass blank values. This is necessary in order to realign the corresponding latitude / / and longitude values after they're separately reformatted in nested workflows */ String blank = ""; Matcher matcher = thePat.matcher(item); if (matcher.find()) { filteredlist.add(matcher.group(theGroup)); } / else added to pass blank */ else { filteredlist.add(blank); } }
regex_south_lat_from_loc	stringconstant	Value \d\d-\d\dS
Split_string_into_string_list_by_regex_pass_blanks_2	localworker	Script List split = new ArrayList(); if (!string.equals("")) { String regexString = ","; if (regex != void) { regexString = regex; } String[] result = string.split(regexString); for (int i = 0; i < result.length; i++) { split.add(result[i]); } } /* else if added to pass blank strings into the split list */ else if (string.equals("")) { split.add(string); }
Merge_String_List_to_a_String_2	localworker	Script String seperatorString = "\n"; if (seperator != void) { seperatorString = seperator; } StringBuffer sb = new StringBuffer(); for (Iterator i = stringlist.iterator(); i.hasNext();) { String item = (String) i.next(); sb.append(item); if (i.hasNext()) { sb.append(seperatorString); } } concatenated = sb.toString();
negative	stringconstant	Value -
Concatenate_two_strings	localworker	Script output = string1 + string2;

Beanshells (0)

Outputs (1)

Name	Description
latitude

Datalinks (25)

Source	Sink
dot:value	Merge_String_List_to_a_String:seperator
Split_string_into_string_list_by_regex_pass_blanks:split	Merge_String_List_to_a_String:stringlist
xml_in	Filter_list_of_strings_extracting_regex_match_passing_blanks:stringlist
regex_north_lat_from_loc:value	Filter_list_of_strings_extracting_regex_match_passing_blanks:regex
lat_group_1:value	Filter_list_of_strings_extracting_regex_match_passing_blanks:group
regex:value	Split_string_into_string_list_by_regex_pass_blanks:regex
Filter_list_of_strings_extracting_regex_match_passing_blanks:filteredlist	Split_string_into_string_list_by_regex_pass_blanks:string
Merge_String_List_to_a_String:concatenated	Filter_list_of_strings_extracting_regex_match_passing_blanks_2:stringlist
regex_dd.dd:value	Filter_list_of_strings_extracting_regex_match_passing_blanks_2:regex
lat_group_2:value	Filter_list_of_strings_extracting_regex_match_passing_blanks_2:group
Filter_list_of_strings_extracting_regex_match_passing_blanks_4:filteredlist	Concatenate_strings_pass_blanks:string2
negative:value	Concatenate_strings_pass_blanks:string1
xml_in	Filter_list_of_strings_extracting_regex_match_passing_blanks_3:stringlist
regex_south_lat_from_loc:value	Filter_list_of_strings_extracting_regex_match_passing_blanks_3:regex
lat_group_1:value	Filter_list_of_strings_extracting_regex_match_passing_blanks_3:group
Merge_String_List_to_a_String_2:concatenated	Filter_list_of_strings_extracting_regex_match_passing_blanks_4:stringlist
lat_group_2:value	Filter_list_of_strings_extracting_regex_match_passing_blanks_4:group
regex_dd.dd:value	Filter_list_of_strings_extracting_regex_match_passing_blanks_4:regex
Filter_list_of_strings_extracting_regex_match_passing_blanks_3:filteredlist	Split_string_into_string_list_by_regex_pass_blanks_2:string
regex:value	Split_string_into_string_list_by_regex_pass_blanks_2:regex
Split_string_into_string_list_by_regex_pass_blanks_2:split	Merge_String_List_to_a_String_2:stringlist
dot:value	Merge_String_List_to_a_String_2:seperator
Concatenate_strings_pass_blanks:output	Concatenate_two_strings:string1
Filter_list_of_strings_extracting_regex_match_passing_blanks_2:filteredlist	Concatenate_two_strings:string2
Concatenate_two_strings:output	latitude
