Extracting Quantities from HyperLEDA
Created: 2011-10-05 09:21:40
Last updated: 2011-10-05 09:21:39
This workflow receives the name of the property to compare and a file with a list of names of galaxies. The property name must be the same used in the HTML file returned by the HyperLEDA service.
The workflow calls to HyperLEda service, using as input the names of the galaxies in order to get a HTML file with information about each galaxy. From each HTML file, it extracts the value of the property selected by the user.
The workflow uses a python tool to parse the HTML file (one for each galaxy) and extracts the value of the property. In order to build a file, it has to merge the output of the python tool using thel local service "Merge_String_List_to_a_String"

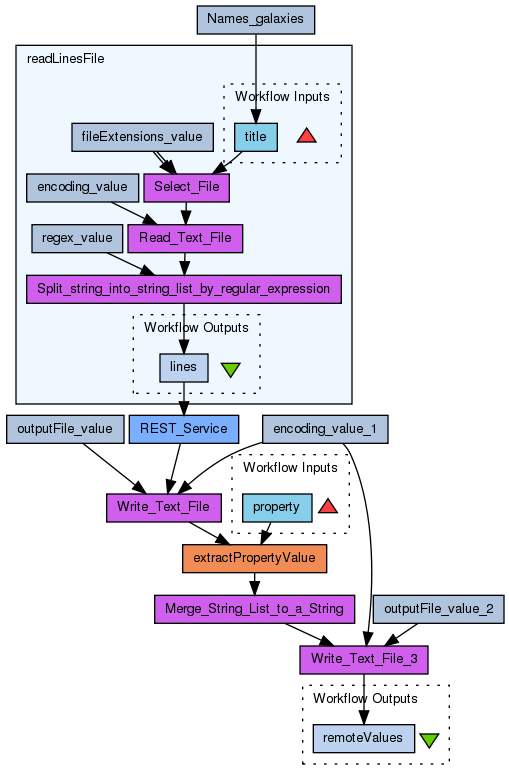

Preview
Run
Run this Workflow in the Taverna Workbench...
Workflow Components
Authors (1)
Titles (1)
| Extracting values of one porperty from LEDA
|
Descriptions (1)
| This workflow receives the name of the property to compare and a file with a list of names of galaxies. The property name must be the same used in the HTML file returned by the HyperLEDA service.
The workflow calls to HyperLEda service, using as input the names of the galaxies in order to get a HTML file with information about each galaxy. From each HTML file, it extracts the value of the property selected by the user.
The workflow uses a python tool to parse the HTML file (one for each galaxy) and extracts the value of the property. In order to build a file, it has to merge the output of the python tool using thel local service "Merge_String_List_to_a_String" |
Dependencies (0)
Inputs (1)
| Name |
Description |
| property |
|
Processors (10)
| Name |
Type |
Description |
| REST_Service |
rest |
|
| extractPropertyValue |
externaltool |
|
| Write_Text_File |
localworker |
Script
BufferedWriter out;
if (encoding == void) {
out = new BufferedWriter(new FileWriter(outputFile));
}
else {
out = new BufferedWriter(new OutputStreamWriter(new FileOutputStream(outputFile), encoding));
}
out.write(filecontents);
out.flush();
out.close();
outputFile = filecontents;
|
| encoding_value_1 |
stringconstant |
Valueutf-8 |
| outputFile_value |
stringconstant |
Valuefiletmp.txt |
| readLinesFile |
workflow |
|
| Names_galaxies |
stringconstant |
ValueEnter file with the name of galaxies list |
| Merge_String_List_to_a_String |
localworker |
ScriptString seperatorString = "\n";
if (seperator != void) {
seperatorString = seperator;
}
StringBuffer sb = new StringBuffer();
for (Iterator i = stringlist.iterator(); i.hasNext();) {
String item = (String) i.next();
sb.append(item);
if (i.hasNext()) {
sb.append(seperatorString);
}
}
concatenated = sb.toString();
|
| Write_Text_File_3 |
localworker |
Script
BufferedWriter out;
if (encoding == void) {
out = new BufferedWriter(new FileWriter(outputFile));
}
else {
out = new BufferedWriter(new OutputStreamWriter(new FileOutputStream(outputFile), encoding));
}
out.write(filecontents);
out.flush();
out.close();
outputFile = filecontents;
|
| outputFile_value_2 |
stringconstant |
ValueBMagnitude.txt |
Outputs (1)
| Name |
Description |
| remoteValues |
|
Datalinks (12)
| Source |
Sink |
| readLinesFile:lines |
REST_Service:object_name |
| Write_Text_File:outputFile |
extractPropertyValue:filetmp |
| property |
extractPropertyValue:property |
| encoding_value_1:value |
Write_Text_File:encoding |
| REST_Service:responseBody |
Write_Text_File:filecontents |
| outputFile_value:value |
Write_Text_File:outputFile |
| Names_galaxies:value |
readLinesFile:title |
| extractPropertyValue:STDOUT |
Merge_String_List_to_a_String:stringlist |
| encoding_value_1:value |
Write_Text_File_3:encoding |
| Merge_String_List_to_a_String:concatenated |
Write_Text_File_3:filecontents |
| outputFile_value_2:value |
Write_Text_File_3:outputFile |
| Write_Text_File_3:outputFile |
remoteValues |
