Name resolver of galaxies parsing the output using local services
Created: 2011-09-21 17:59:49
Last updated: 2011-09-21 18:03:58

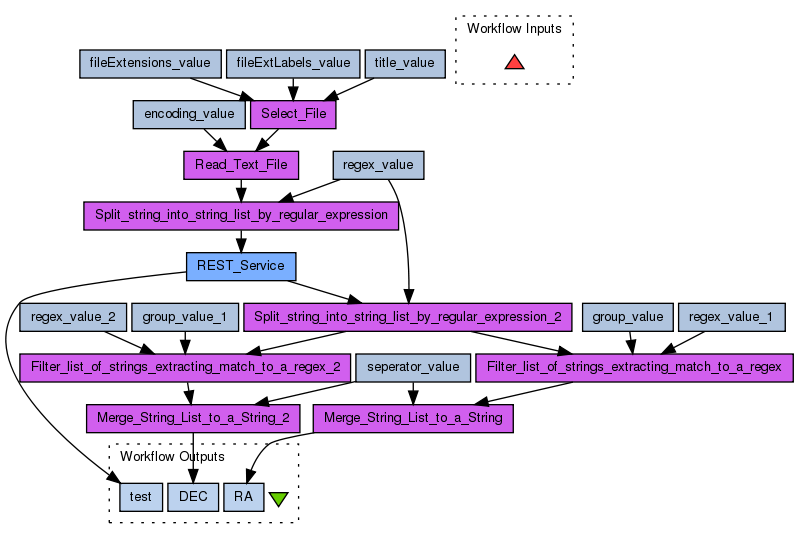

This workflow ask for text file using "Select_file" local services. This file is read by the "read_text_file", using "utf-8" as encoding. The result of "read_text_file" is splitted in lines by "split_string_into_string_list_by_regular_expression" and each of this lines is the input for the Rest_servise. The REST service search for each line (each line contains one name of one galaxy) some information about that galaxy. The string is like:
target=cig+1
service=NED(nedwww.ipac.caltech.edu)
coordsys=ICRS
ra=0.77358
dec=-1.91381
time(ms)=0
We convert this string into list of string using "split_string_into_string_list_by_regular_expression"
We need extract the coordinates of the galaxy: the RA and DEC parameters, so we have to use two times the local services "filter_list_of_string_extracting_match_to_a_regex". One of them with the regex= "ra=(.*)" and the other one with the regex="dec=(.*)". The result of this both filters is a list of list, so we have to use "merge_string_list_to_a_string" to get a list.
Preview
Run
Run this Workflow in the Taverna Workbench...
Workflow Components
Authors (1)
|  |
Titles (1)
|  |
Name resolver of galaxies parsing the output using local services |
Descriptions (1)
|  |
This workflow ask for text file using "Select_file" local services. This file is read by the "read_text_file", using "utf-8" as encoding. The result of "read_text_file" is splitted in lines by "split_string_into_string_list_by_regular_expression" and each of this lines is the input for the Rest_servise. The REST service search for each line (each line contains one name of one galaxy) some information about that galaxy. The string is like:
We convert this string into list of string using "split_string_into_string_list_by_regular_expression"
We need extract the coordinates of the galaxy: the RA and DEC parameters, so we have to use two times the local services "filter_list_of_string_extracting_match_to_a_regex". One of them with the regex= "ra=(.*)" and the other one with the regex="dec=(.*)". The result of this both filters is a list of list, so we have to use "merge_string_list_to_a_string" to get a list.
|
Dependencies (0)
|  |
Inputs (0)
|  |
Processors (19)
|  |
Name |
Type |
Description |
Read_Text_File |
localworker |
ScriptBufferedReader getReader (String fileUrl, String encoding) throws IOException {
InputStreamReader reader;
try {
if (encoding == null) {
reader = new FileReader(fileUrl);
} else {
reader = new InputStreamReader(new FileInputStream(fileUrl),encoding);
}
}
catch (FileNotFoundException e) {
// try a real URL instead
URL url = new URL(fileUrl);
if (encoding == null) {
reader = new InputStreamReader (url.openStream());
} else {
reader = new InputStreamReader (url.openStream(), encoding);
}
}
return new BufferedReader(reader);
}
StringBuffer sb = new StringBuffer(4000);
if (encoding == void) {
encoding = null;
}
BufferedReader in = getReader(fileurl, encoding);
String str;
String lineEnding = System.getProperty("line.separator");
while ((str = in.readLine()) != null) {
sb.append(str);
sb.append(lineEnding);
}
in.close();
filecontents = sb.toString();
|
encoding_value |
stringconstant |
Valueutf-8 |
Select_File |
localworker |
Scriptimport java.awt.CardLayout;
import java.awt.Image;
import java.awt.Toolkit;
import java.io.File;
import java.util.HashMap;
import java.util.Map;
import javax.swing.ImageIcon;
import javax.swing.JEditorPane;
import javax.swing.JFileChooser;
import javax.swing.JLabel;
import javax.swing.JPanel;
import javax.swing.filechooser.FileFilter;
class FileExtFilter extends FileFilter {
public FileExtFilter(String ext, String label, boolean includeDir) {
this.ext = ext;
this.label = label;
this.includeDir = includeDir;
}
public String getDescription() {
return this.label;
}
public boolean accept(File file) {
if (file.isDirectory() && includeDir) {
return true;
} else {
return file.getName().endsWith(this.ext);
}
}
String ext, label;
boolean includeDir;
}
if (title == void) {
title = null;
}
if ((fileExtensions == void) || (fileExtensions == null)) {
fileExtensions = "";
}
if ((fileExtLabels == void) || (fileExtLabels == null)) {
fileExtLabels = "";
}
JFileChooser chooser = new JFileChooser();
chooser.setDialogTitle(title);
String[] fileTypeList = fileExtensions.split(",");
String[] filterLabelList = fileExtLabels.split(",");
if (fileTypeList != null && filterLabelList != null && fileTypeList.length != filterLabelList.length) {
throw new RuntimeException("The list of extensions and file filter labels must be the same length");
}
// create the file filters
for (int i = 0; i < fileTypeList.length; i++) {
FileExtFilter filter = new FileExtFilter(fileTypeList[i], filterLabelList[i], true);
chooser.setFileFilter(filter);
}
chooser.showOpenDialog(null);
File file = chooser.getSelectedFile();
selectedFile = file.getAbsolutePath();
|
fileExtensions_value |
stringconstant |
Valuetxt |
fileExtLabels_value |
stringconstant |
ValueTXT |
title_value |
stringconstant |
ValueChoose a file |
REST_Service |
rest |
|
Split_string_into_string_list_by_regular_expression |
localworker |
ScriptList split = new ArrayList();
if (!string.equals("")) {
String regexString = ",";
if (regex != void) {
regexString = regex;
}
String[] result = string.split(regexString);
for (int i = 0; i < result.length; i++) {
split.add(result[i]);
}
}
|
regex_value |
stringconstant |
Value\n |
Split_string_into_string_list_by_regular_expression_2 |
localworker |
ScriptList split = new ArrayList();
if (!string.equals("")) {
String regexString = ",";
if (regex != void) {
regexString = regex;
}
String[] result = string.split(regexString);
for (int i = 0; i < result.length; i++) {
split.add(result[i]);
}
}
|
Filter_list_of_strings_extracting_match_to_a_regex |
localworker |
Scriptimport java.util.regex.*;
filteredlist = new ArrayList();
Pattern thePat = Pattern.compile(regex);
int theGroup = Integer.parseInt(group);
for (Iterator i = stringlist.iterator(); i.hasNext();) {
String item = (String) i.next();
Matcher matcher = thePat.matcher(item);
if (matcher.find()) {
filteredlist.add(matcher.group(theGroup));
}
}
|
group_value |
stringconstant |
Value1 |
regex_value_1 |
stringconstant |
Valuera=(.*) |
Filter_list_of_strings_extracting_match_to_a_regex_2 |
localworker |
Scriptimport java.util.regex.*;
filteredlist = new ArrayList();
Pattern thePat = Pattern.compile(regex);
int theGroup = Integer.parseInt(group);
for (Iterator i = stringlist.iterator(); i.hasNext();) {
String item = (String) i.next();
Matcher matcher = thePat.matcher(item);
if (matcher.find()) {
filteredlist.add(matcher.group(theGroup));
}
}
|
regex_value_2 |
stringconstant |
Valuedec=(.*) |
group_value_1 |
stringconstant |
Value1 |
Merge_String_List_to_a_String |
localworker |
ScriptString seperatorString = "\n";
if (seperator != void) {
seperatorString = seperator;
}
StringBuffer sb = new StringBuffer();
for (Iterator i = stringlist.iterator(); i.hasNext();) {
String item = (String) i.next();
sb.append(item);
if (i.hasNext()) {
sb.append(seperatorString);
}
}
concatenated = sb.toString();
|
seperator_value |
stringconstant |
Value |
Merge_String_List_to_a_String_2 |
localworker |
ScriptString seperatorString = "\n";
if (seperator != void) {
seperatorString = seperator;
}
StringBuffer sb = new StringBuffer();
for (Iterator i = stringlist.iterator(); i.hasNext();) {
String item = (String) i.next();
sb.append(item);
if (i.hasNext()) {
sb.append(seperatorString);
}
}
concatenated = sb.toString();
|
Beanshells (0)
|  |
Outputs (3)
|  |
Name |
Description |
test |
|
DEC |
|
RA |
|
Datalinks (23)
|  |
Source |
Sink |
encoding_value:value |
Read_Text_File:encoding |
Select_File:selectedFile |
Read_Text_File:fileurl |
fileExtensions_value:value |
Select_File:fileExtensions |
fileExtLabels_value:value |
Select_File:fileExtLabels |
title_value:value |
Select_File:title |
Split_string_into_string_list_by_regular_expression:split |
REST_Service:object_name |
Read_Text_File:filecontents |
Split_string_into_string_list_by_regular_expression:string |
regex_value:value |
Split_string_into_string_list_by_regular_expression:regex |
REST_Service:responseBody |
Split_string_into_string_list_by_regular_expression_2:string |
regex_value:value |
Split_string_into_string_list_by_regular_expression_2:regex |
Split_string_into_string_list_by_regular_expression_2:split |
Filter_list_of_strings_extracting_match_to_a_regex:stringlist |
group_value:value |
Filter_list_of_strings_extracting_match_to_a_regex:group |
regex_value_1:value |
Filter_list_of_strings_extracting_match_to_a_regex:regex |
Split_string_into_string_list_by_regular_expression_2:split |
Filter_list_of_strings_extracting_match_to_a_regex_2:stringlist |
regex_value_2:value |
Filter_list_of_strings_extracting_match_to_a_regex_2:regex |
group_value_1:value |
Filter_list_of_strings_extracting_match_to_a_regex_2:group |
Filter_list_of_strings_extracting_match_to_a_regex:filteredlist |
Merge_String_List_to_a_String:stringlist |
seperator_value:value |
Merge_String_List_to_a_String:seperator |
Filter_list_of_strings_extracting_match_to_a_regex_2:filteredlist |
Merge_String_List_to_a_String_2:stringlist |
seperator_value:value |
Merge_String_List_to_a_String_2:seperator |
REST_Service:responseBody |
test |
Merge_String_List_to_a_String_2:concatenated |
DEC |
Merge_String_List_to_a_String:concatenated |
RA |
Coordinations (0)
|  |
