get human and mouse phenotypes for a gene

Created: 2011-05-20 15:18:50 Last updated: 2012-03-29 09:01:06

Download Workflow

This workflow gets phenotype annotations associated with human genes and the mouse orthologs from human (GWAS Central) and mouse (EuroPhenome and MGI) databases.

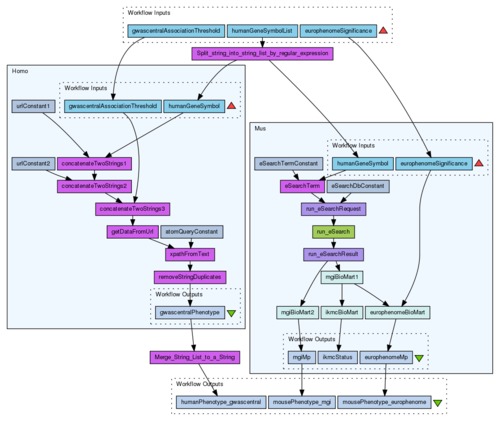

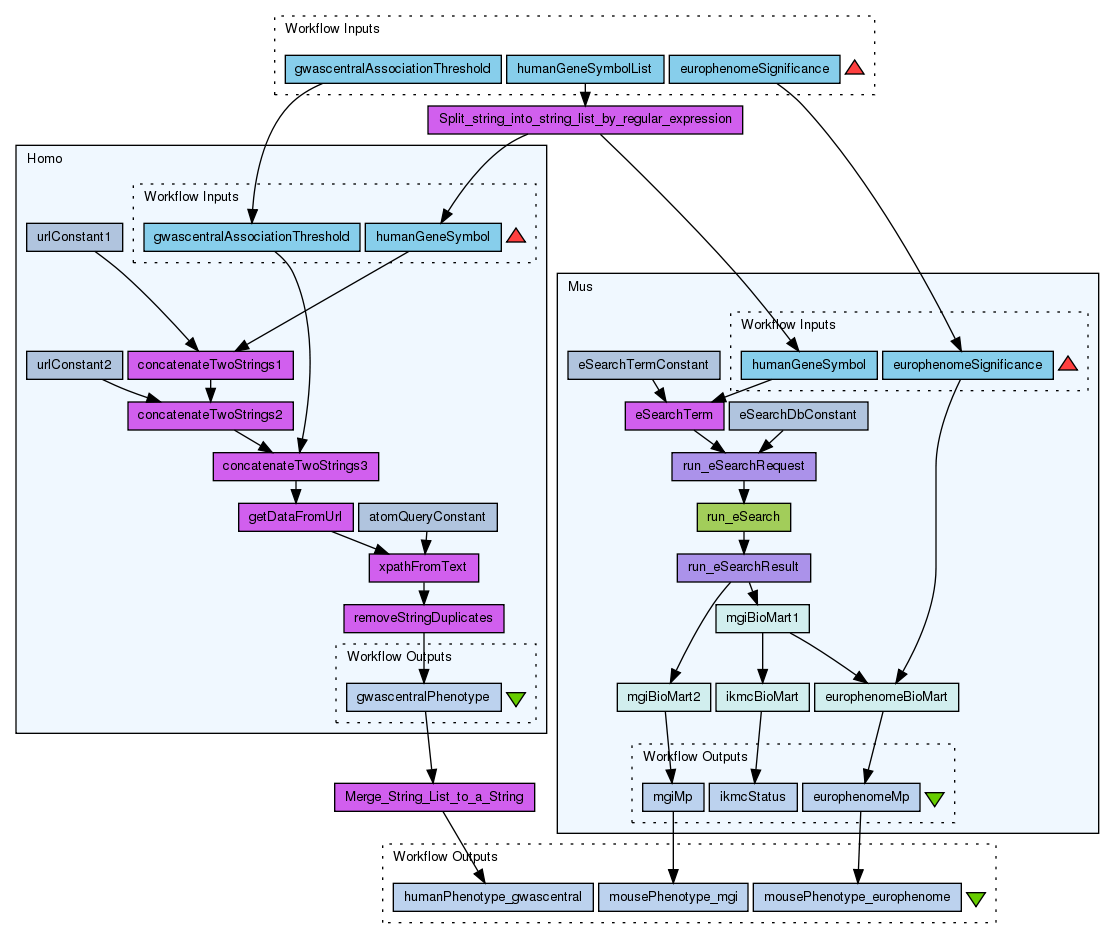

Preview

Download as scalable diagram (SVG)

Run

Run this Workflow in the Taverna Workbench...

Option 1:

Copy and paste this link into File > 'Open workflow location...'
http://myexperiment.org/workflows/2131/download?version=1
[ More Info Expand ]

Workflow Components

Authors (1)

Titles (4)

Descriptions (1)

Dependencies (0)

Inputs (3)

Name	Description
humanGeneSymbolList
europhenomeSignificance
gwascentralAssociationThreshold

Processors (4)

Name	Type	Description
Merge_String_List_to_a_String	localworker	Script String seperatorString = "\n"; if (seperator != void) { seperatorString = seperator; } StringBuffer sb = new StringBuffer(); for (Iterator i = stringlist.iterator(); i.hasNext();) { String item = (String) i.next(); sb.append(item); if (i.hasNext()) { sb.append(seperatorString); } } concatenated = sb.toString();
Split_string_into_string_list_by_regular_expression	localworker	Script List split = new ArrayList(); if (!string.equals("")) { String regexString = ","; if (regex != void) { regexString = regex; } String[] result = string.split(regexString); for (int i = 0; i < result.length; i++) { split.add(result[i]); } }
Mus	workflow
Homo	workflow

Beanshells (0)

Outputs (3)

Name	Description
humanPhenotype_gwascentral
mousePhenotype_mgi
mousePhenotype_europhenome

Datalinks (9)

Source	Sink
Homo:gwascentralPhenotype	Merge_String_List_to_a_String:stringlist
humanGeneSymbolList	Split_string_into_string_list_by_regular_expression:string
europhenomeSignificance	Mus:europhenomeSignificance
Split_string_into_string_list_by_regular_expression:split	Mus:humanGeneSymbol
Split_string_into_string_list_by_regular_expression:split	Homo:humanGeneSymbol
gwascentralAssociationThreshold	Homo:gwascentralAssociationThreshold
Merge_String_List_to_a_String:concatenated	humanPhenotype_gwascentral
Mus:mgiMp	mousePhenotype_mgi
Mus:europhenomeMp	mousePhenotype_europhenome

Coordinations (0)

Information Workflow Type

Taverna 2

Information Uploader

Tim Beck

Information License

All versions of this Workflow are licensed under:

Information Version 1 (earliest) (of 2)

Information Credits (1)

(People/Groups)

Tim Beck

Information Attributions (0)

(Workflows/Files)

None

Information Tags (4)

Uploader tags

Log in to add Tags

Information Shared with Groups (0)

None

Information Featured In Packs (0)

None

Log in to add to one of your Packs

Information Attributed By (0)

(Workflows/Files)

None

Information Favourited By (0)

No one

Information Statistics

3785 viewings

1295 downloads

[ see breakdown ]

Citations (0)

None

Version History

In chronological order:

Get Human and Mouse Phenotypes for a Gene

Created by Tim Beck on Friday 20 May 2011 15:18:50 (UTC)

Last edited by Tim Beck on Friday 20 May 2011 15:47:36 (UTC)
get human and mouse phenotypes for a gene

Created by Tim Beck on Thursday 29 March 2012 09:01:05 (UTC)

Revision comment:

Incorporates changes to the GWAS Central REST services and now uses the dedicated EuroPhenome BioMart.

Reviews (0)

No reviews yet

Be the first to review!

Comments (0)

View Timeline

No comments yet

Log in to make a comment
