EBI PICR, find cross-references for protein accessions
Created: 2011-05-18 09:36:26
Last updated: 2011-05-29 17:35:20
Find cross-references (based on 100% sequence identity) for protein accessions from more than 95 distinct databases. For instance input a list of IPI accessions and find cross-references for Swissprot and Ensembl. Mappings can be limited by source database, taxonomic ID and activity status.
Preview
Run
Run this Workflow in the Taverna Workbench...

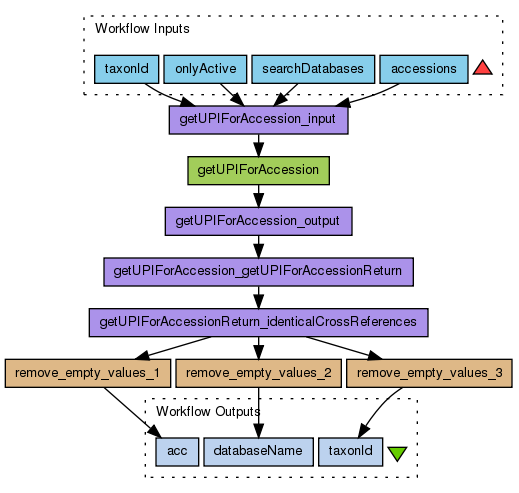

Workflow Components
Authors (1)
Titles (3)
|
| Find cross-references (based on 100% sequence identity) for protein accessions from more than 95 distinct databases. For instance input a list of IPI accessions and find cross-references for Swissprot and Ensembl. Mappings can be limited by source database, taxonomic ID and activity status. |
| EBI PICR, find cross-references for protein accessions |
Descriptions (1)
| Find cross-references (based on 100% sequence identity) for protein accessions from more than 95 distinct databases. For instance input a list of IPI accessions and find cross-references for Swissprot and Ensembl. Mappings can be limited by source database, taxonomic ID and activity status. |
Dependencies (0)
Inputs (4)
| Name |
Description |
| accessions |
Input a list of protein accessions
|
| searchDatabases |
Which databases do you want the cross-references for? You can add more than one. You can get a list of databases available in PICR using the method "getMappedDatabaseNames" from the same PICR service or looking at this document http://www.ebi.ac.uk/Tools/picr/WSDLDocumentation.do
|
| onlyActive |
Do you just want accession that are active (no-deprecated)? … write down "true" or "false". If you do not specify this parameter the workflow will not work.
|
| taxonId |
Create a new value and leave it empty if you do not want to filter by specie. Chose a Taxa Id if you want to limit by specie … http://www.uniprot.org/taxonomy/?query=*
|
Processors (8)
| Name |
Type |
Description |
| getUPIForAccession |
wsdl |
Wsdlhttp://www.ebi.ac.uk/Tools/picr/service?wsdlWsdl OperationgetUPIForAccession |
| getUPIForAccession_input |
xmlsplitter |
|
| getUPIForAccession_output |
xmlsplitter |
|
| getUPIForAccession_getUPIForAccessionReturn |
xmlsplitter |
|
| getUPIForAccessionReturn_identicalCrossReferences |
xmlsplitter |
|
| remove_empty_values_1 |
beanshell |
ScriptList stringListOut = new ArrayList();
for(Object list:stringListIn){
for (Iterator i = list.iterator(); i.hasNext();) {
String text = (String)i.next();
if(text.length() != 0){
stringListOut.add(text);
}
}
} |
| remove_empty_values_2 |
beanshell |
ScriptList stringListOut = new ArrayList();
for(Object list:stringListIn){
for (Iterator i = list.iterator(); i.hasNext();) {
String text = (String)i.next();
if(text.length() != 0){
stringListOut.add(text);
}
}
} |
| remove_empty_values_3 |
beanshell |
ScriptList stringListOut = new ArrayList();
for(Object list:stringListIn){
for (Iterator i = list.iterator(); i.hasNext();) {
String text = (String)i.next();
if(text.length() != 0){
stringListOut.add(text);
}
}
} |
Beanshells (3)
| Name |
Description |
Inputs |
Outputs |
| remove_empty_values_1 |
|
stringListIn
|
stringListOut
|
| remove_empty_values_2 |
|
stringListIn
|
stringListOut
|
| remove_empty_values_3 |
|
stringListIn
|
stringListOut
|
Outputs (3)
| Name |
Description |
| acc |
|
| databaseName |
|
| taxonId |
|
Datalinks (14)
| Source |
Sink |
| getUPIForAccession_input:output |
getUPIForAccession:parameters |
| accessions |
getUPIForAccession_input:accession |
| searchDatabases |
getUPIForAccession_input:searchDatabases |
| onlyActive |
getUPIForAccession_input:onlyActive |
| taxonId |
getUPIForAccession_input:taxonId |
| getUPIForAccession:parameters |
getUPIForAccession_output:input |
| getUPIForAccession_output:getUPIForAccessionReturn |
getUPIForAccession_getUPIForAccessionReturn:input |
| getUPIForAccession_getUPIForAccessionReturn:identicalCrossReferences |
getUPIForAccessionReturn_identicalCrossReferences:input |
| getUPIForAccessionReturn_identicalCrossReferences:accession |
remove_empty_values_1:stringListIn |
| getUPIForAccessionReturn_identicalCrossReferences:databaseName |
remove_empty_values_2:stringListIn |
| getUPIForAccessionReturn_identicalCrossReferences:taxonId |
remove_empty_values_3:stringListIn |
| remove_empty_values_1:stringListOut |
acc |
| remove_empty_values_2:stringListOut |
databaseName |
| remove_empty_values_3:stringListOut |
taxonId |
