KEGG Pathways and Additional Information from BLAST

Created: 2011-03-29 11:16:17 Last updated: 2011-03-30 16:09:01

Download Workflow

Takes in a tab-delimited BLAST file and finds additional information about the target proteins from KEGG, Gene Ontology, Interpro and MEDLINE.

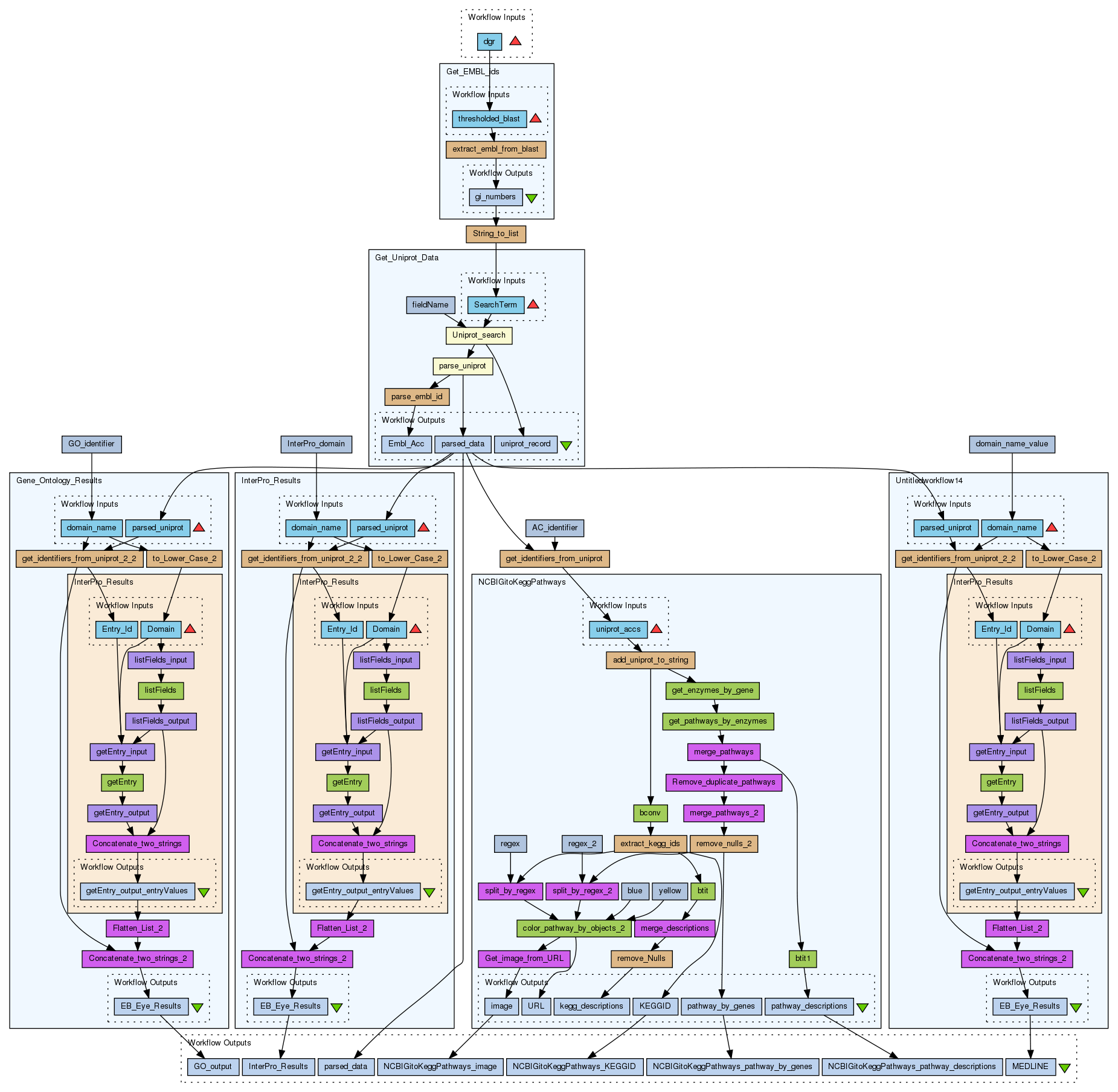

Preview

Download as scalable diagram (SVG)

Run

Run this Workflow in the Taverna Workbench...

Option 1:

Copy and paste this link into File > 'Open workflow location...'
http://myexperiment.org/workflows/1992/download?version=1
[ More Info Expand ]

Workflow Components

Authors (2)

Titles (2)

Descriptions (3)

Dependencies (0)

Inputs (1)

Name	Description
dgr

Processors (12)

Name	Type	Description
String_to_list	beanshell	Script String [] lines = in1.split("\n"); List list = new ArrayList(); for (int i =0;i
Get_EMBL_ids	workflow
NCBIGitoKeggPathways	workflow
Get_Uniprot_Data	workflow
get_identifiers_from_uniprot	beanshell	Script String [] lines = parsed_uniprot.split("\n"); List list = new ArrayList(); for (String line: lines) { if (line.startsWith(identifier_name)) { list.add(line.substring(3,line.length()).trim()); } } out1 = list;
AC_identifier	stringconstant	Value AC
GO_identifier	stringconstant	Value GO
Gene_Ontology_Results	workflow
InterPro_Results	workflow
InterPro_domain	stringconstant	Value InterPro
Untitledworkflow14	workflow
domain_name_value	stringconstant	Value MEDLINE

Beanshells (14)

Name	Inputs	Outputs
String_to_list	in1	out1
get_identifiers_from_uniprot	parsed_uniprot identifier_name	out1
remove_Nulls	input	output
extract_kegg_ids	input	output
remove_nulls_2	input	output
add_uniprot_to_string	input	output
get_identifiers_from_uniprot_2_2	parsed_uniprot identifier_name	out1
to_Lower_Case_2	in1	out1
get_identifiers_from_uniprot_2_2	parsed_uniprot identifier_name	out1
to_Lower_Case_2	in1	out1
extract_embl_from_blast	unique_identifiers	out1
get_identifiers_from_uniprot_2_2	parsed_uniprot identifier_name	out1
to_Lower_Case_2	in1	out1
parse_embl_id	input	output

Outputs (8)

Name	Description
parsed_data
NCBIGitoKeggPathways_KEGGID
NCBIGitoKeggPathways_pathway_descriptions
NCBIGitoKeggPathways_pathway_by_genes
NCBIGitoKeggPathways_image
GO_output
InterPro_Results
MEDLINE

Datalinks (20)

Source	Sink
Get_EMBL_ids:gi_numbers	String_to_list:in1
dgr	Get_EMBL_ids:thresholded_blast
get_identifiers_from_uniprot:out1	NCBIGitoKeggPathways:uniprot_accs
String_to_list:out1	Get_Uniprot_Data:SearchTerm
Get_Uniprot_Data:parsed_data	get_identifiers_from_uniprot:parsed_uniprot
AC_identifier:value	get_identifiers_from_uniprot:identifier_name
GO_identifier:value	Gene_Ontology_Results:domain_name
Get_Uniprot_Data:parsed_data	Gene_Ontology_Results:parsed_uniprot
InterPro_domain:value	InterPro_Results:domain_name
Get_Uniprot_Data:parsed_data	InterPro_Results:parsed_uniprot
domain_name_value:value	Untitledworkflow14:domain_name
Get_Uniprot_Data:parsed_data	Untitledworkflow14:parsed_uniprot
Get_Uniprot_Data:parsed_data	parsed_data
NCBIGitoKeggPathways:KEGGID	NCBIGitoKeggPathways_KEGGID
NCBIGitoKeggPathways:pathway_descriptions	NCBIGitoKeggPathways_pathway_descriptions
NCBIGitoKeggPathways:pathway_by_genes	NCBIGitoKeggPathways_pathway_by_genes
NCBIGitoKeggPathways:image	NCBIGitoKeggPathways_image
Gene_Ontology_Results:EB_Eye_Results	GO_output
InterPro_Results:EB_Eye_Results	InterPro_Results
Untitledworkflow14:EB_Eye_Results	MEDLINE

Coordinations (0)

Information Workflow Type

Taverna 2

Information Uploader

Morgan Taschuk

Information License

All versions of this Workflow are licensed under:

Information Version 1 (earliest) (of 2)

Information Credits (1)

(People/Groups)

Morgan Taschuk

Information Attributions (1)

(Workflows/Files)

extract_uniprot_embl_gi.xml

Information Tags (6)

Uploader tags

BLAST
|
GO
|
interpro
|
medline
|
pathway
|
uniprot

Log in to add Tags

Information Shared with Groups (1)

A Team

Information Featured In Packs (0)

None

Log in to add to one of your Packs

Information Attributed By (0)

(Workflows/Files)

None

Information Favourited By (0)

No one

Information Statistics

2503 viewings

1576 downloads

[ see breakdown ]

Citations (0)

None

Version History

In chronological order:

KEGG Pathways and Additional Information

Created by Morgan Taschuk on Tuesday 29 March 2011 11:16:17 (UTC)

Last edited by Morgan Taschuk on Tuesday 29 March 2011 11:57:36 (UTC)
KEGG Pathways and Additional Information from BLAST

Created by Morgan Taschuk on Wednesday 30 March 2011 14:49:06 (UTC)

Last edited by Morgan Taschuk on Wednesday 30 March 2011 16:09:01 (UTC)

Revision comment:

Replaced the Gene Ontology and PubMed services and formatted the output. Also, the KEGG pathways display the given enzymes in Pink.
