KEGG Pathways and Additional Information from BLAST

Created: 2011-03-29 11:16:17 Last updated: 2011-03-30 16:09:01

Download Workflow

Takes in a tab-delimited BLAST file and finds additional information about the target proteins from KEGG, Gene Ontology, Interpro and PubMed.

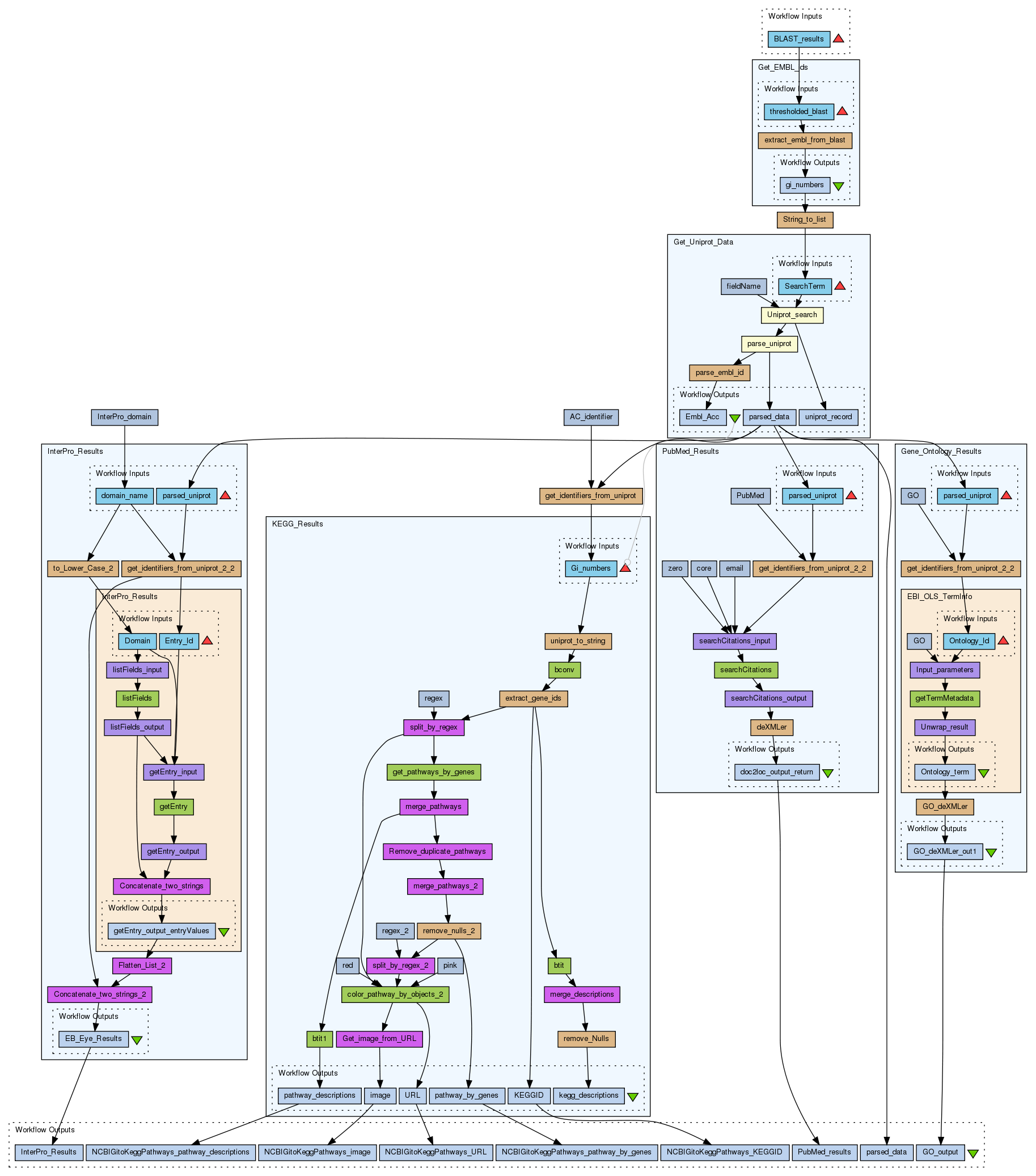

Preview

Download as scalable diagram (SVG)

Run

Run this Workflow in the Taverna Workbench...

Option 1:

Copy and paste this link into File > 'Open workflow location...'
http://myexperiment.org/workflows/1992/download?version=2
[ More Info Expand ]

Workflow Components

Authors (2)

Titles (2)

Descriptions (3)

Dependencies (0)

Inputs (1)

Name	Description
BLAST_results

Processors (10)

Name	Type	Description
String_to_list	beanshell	Script String [] lines = in1.split("\n"); List list = new ArrayList(); for (int i =0;i
Get_EMBL_ids	workflow
KEGG_Results	workflow
Get_Uniprot_Data	workflow
get_identifiers_from_uniprot	beanshell	Script String [] lines = parsed_uniprot.split("\n"); List list = new ArrayList(); for (String line: lines) { if (line.startsWith(identifier_name)) { list.add(line.substring(3,line.length()).trim()); } } out1 = list;
AC_identifier	stringconstant	Value AC
InterPro_Results	workflow
InterPro_domain	stringconstant	Value InterPro
Gene_Ontology_Results	workflow
PubMed_Results	workflow

Beanshells (14)

Name	Inputs	Outputs
String_to_list	in1	out1
get_identifiers_from_uniprot	parsed_uniprot identifier_name	out1
remove_Nulls	input	output
extract_gene_ids	input	output
remove_nulls_2	input	output
uniprot_to_string	input	output
parse_embl_id	input	output
extract_embl_from_blast	unique_identifiers	out1
get_identifiers_from_uniprot_2_2	parsed_uniprot identifier_name	out1
to_Lower_Case_2	in1	out1
get_identifiers_from_uniprot_2_2	parsed_uniprot identifier_name	out1
GO_deXMLer	in1	out1
get_identifiers_from_uniprot_2_2	parsed_uniprot identifier_name	out1
deXMLer	in1	out1

Outputs (9)

Name	Description
parsed_data
NCBIGitoKeggPathways_KEGGID
NCBIGitoKeggPathways_pathway_descriptions
NCBIGitoKeggPathways_pathway_by_genes
NCBIGitoKeggPathways_image
GO_output
InterPro_Results
NCBIGitoKeggPathways_URL
PubMed_results

Datalinks (19)

Source	Sink
Get_EMBL_ids:gi_numbers	String_to_list:in1
BLAST_results	Get_EMBL_ids:thresholded_blast
get_identifiers_from_uniprot:out1	KEGG_Results:Gi_numbers
String_to_list:out1	Get_Uniprot_Data:SearchTerm
Get_Uniprot_Data:parsed_data	get_identifiers_from_uniprot:parsed_uniprot
AC_identifier:value	get_identifiers_from_uniprot:identifier_name
InterPro_domain:value	InterPro_Results:domain_name
Get_Uniprot_Data:parsed_data	InterPro_Results:parsed_uniprot
Get_Uniprot_Data:parsed_data	Gene_Ontology_Results:parsed_uniprot
Get_Uniprot_Data:parsed_data	PubMed_Results:parsed_uniprot
Get_Uniprot_Data:parsed_data	parsed_data
KEGG_Results:KEGGID	NCBIGitoKeggPathways_KEGGID
KEGG_Results:pathway_descriptions	NCBIGitoKeggPathways_pathway_descriptions
KEGG_Results:pathway_by_genes	NCBIGitoKeggPathways_pathway_by_genes
KEGG_Results:image	NCBIGitoKeggPathways_image
Gene_Ontology_Results:GO_deXMLer_out1	GO_output
InterPro_Results:EB_Eye_Results	InterPro_Results
KEGG_Results:URL	NCBIGitoKeggPathways_URL
PubMed_Results:doc2loc_output_return	PubMed_results

Coordinations (1)

Controller	Target
Get_Uniprot_Data	KEGG_Results

Information Workflow Type

Taverna 2

Information Uploader

Morgan Taschuk

Information License

All versions of this Workflow are licensed under:

Information Version 2 (latest) (of 2)

Information Credits (1)

(People/Groups)

Morgan Taschuk

Information Attributions (1)

(Workflows/Files)

extract_uniprot_embl_gi.xml

Information Tags (6)

Uploader tags

BLAST
|
GO
|
interpro
|
medline
|
pathway
|
uniprot

Log in to add Tags

Information Shared with Groups (1)

A Team

Information Featured In Packs (0)

None

Log in to add to one of your Packs

Information Attributed By (0)

(Workflows/Files)

None

Information Favourited By (0)

No one

Information Statistics

2503 viewings

1576 downloads

[ see breakdown ]

Citations (0)

None

Version History

In chronological order:

KEGG Pathways and Additional Information

Created by Morgan Taschuk on Tuesday 29 March 2011 11:16:17 (UTC)

Last edited by Morgan Taschuk on Tuesday 29 March 2011 11:57:36 (UTC)
KEGG Pathways and Additional Information from BLAST

Created by Morgan Taschuk on Wednesday 30 March 2011 14:49:06 (UTC)

Last edited by Morgan Taschuk on Wednesday 30 March 2011 16:09:01 (UTC)

Revision comment:

Replaced the Gene Ontology and PubMed services and formatted the output. Also, the KEGG pathways display the given enzymes in Pink.
