prism Web service

Created: 2011-01-26 21:53:24 Last updated: 2011-01-26 21:53:25

Download Workflow

PRISM model checking (http://www.prismmodelchecker.org/manual/RunningPRISM/ModelChecking). The '-fixdl' switch is used, which means that all deadlock states in model are fixed by addition of self-loops.

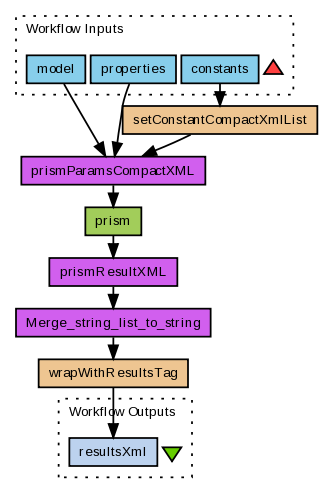

Preview

Download as scalable diagram (SVG)

Run

Run this Workflow in the Taverna Workbench...

Option 1:

Copy and paste this link into File > 'Open workflow location...'
http://myexperiment.org/workflows/1782/download?version=1
[ More Info Expand ]

Workflow Components

Inputs (3)

Name	Description
model	PRISM model file content. Reference: http://www.prismmodelchecker.org/manual/ThePRISMLanguage/PRISMLanguageFiles Example value: // Enzymatic reaction model ctmc // Reaction rates constants const double k1 = 0.184; const double k2 = 0.016; const double k3 = 0.211; // Species s (Substrate) const int s_MAX; module s s : [0..s_MAX] init s_MAX; // r1 (ES-complex association) [r1] s > 0 -> (s'=s-1); // r2 (ES-complex dissociation) [r2] s <= s_MAX-1 -> (s'=s+1); endmodule // Species e (Enzyme) const int e_MAX; module e e : [0..e_MAX] init e_MAX; // r1 (ES-complex association) [r1] e > 0 -> (e'=e-1); // r2 (ES-complex dissociation) [r2] e <= e_MAX-1 -> (e'=e+1); // r3 (Product creation) [r3] e <= e_MAX-1 -> (e'=e+1); endmodule // Species es (ES-complex) const int es_MAX = min(s_MAX, e_MAX); module es es : [0..es_MAX] init 0; // r1 (ES-complex association) [r1] es <= es_MAX-1 -> (es'=es+1); // r2 (ES-complex dissociation) [r2] es > 0 -> (es'=es-1); // r3 (Product creation) [r3] es > 0 -> (es'=es-1); endmodule // Species p (Product) const int p_MAX = s_MAX; module p p : [0..p_MAX] init 0; // r3 (Product creation) [r3] p <= p_MAX-1 -> (p'=p+1); endmodule // Reaction rates module reaction_rates // r1 (ES-complex association) [r1] (k1se) > 0 -> (k1se) : true; // r2 (ES-complex dissociation) [r2] (k2es) > 0 -> (k2es) : true; // r3 (Product creation) [r3] (k3es) > 0 -> (k3es) : true; endmodule // A expected number of enzyme-substrate complex association reactions. rewards "r1" [r1] true : 1; endrewards
properties	PRISM properties file content. Reference: http://www.prismmodelchecker.org/manual/PropertySpecification/PropertiesFiles Example value: // How many times on average a enzyme-substrate complex association reaction have to occure before the amount of product reaches 50% of it's maximum? Corresponds to EC50 coefficient. // Attention: for this formula to make sense, the maximum amount of product must be known and set to the appropriate value; in this particular case it means that p_MAX must be equal to sum of initial amounts of all species, except of enzyme e. R{"r1"}=? [ F (p >= 0.5 * p_MAX) ]
constants	Optional constants and their values in the format of PRISM '-const' switch, i.e. comma separated definitons of constants: name=start:[step:]stop, where step is optional and by default equal to 1. Reference: http://www.prismmodelchecker.org/manual/RunningPRISM/Experiments Example value: e_MAX=1:2:15,s_MAX=1:10

Processors (6)

Name	Type	Description
setConstantCompactXmlList	beanshell
prismParamsCompactXML	local
prism	arbitrarywsdl
prismResultXML	local
Merge_string_list_to_string	local
wrapWithResultsTag	beanshell

Beanshells (2)

Name	Description	Inputs	Outputs
setConstantCompactXmlList		input	output
wrapWithResultsTag		str name	wrapped

Outputs (1)

Name	Description
resultsXml	A <results> XML element with list of results containing set of constants values and, for that set, a set of properties values or an error element with PRISM error message. Example value: <results> <result> <constant name="e_MAX">1</constant> <constant name="s_MAX">1</constant> <property name="R{"r1"}=? [ F (p>=0.5*p_MAX) ]">1.0758293745879832</property> </result> ... </results>

Links (9)

Source	Sink
constants	setConstantCompactXmlList:input
model	prismParamsCompactXML:model
properties	prismParamsCompactXML:properties
Merge_string_list_to_string:concatenated	wrapWithResultsTag:str
prism:prismResult	prismResultXML:input
prismParamsCompactXML:output	prism:prismParamsCompact
prismResultXML:result	Merge_string_list_to_string:stringlist
setConstantCompactXmlList:output	prismParamsCompactXML:constantCompact
wrapWithResultsTag:wrapped	resultsXml
