Select from a list of possible web service parameter values

Created: 2010-12-23 12:54:48 Last updated: 2010-12-23 12:57:45

Download Workflow

The workflow for selecting from a list of possible web service parameter values has two input ports: the wsdl address of the web service and the variable name. It parses the web service wsdl description (the web service http://ropot.ijs.si/webservices/janez/getvalues.php?wsdl does that) and then it asks the user to select one value from a drop-down menu. This workflow is very useful when web services have inputs which expect as a parameter one value from a list of possible values.

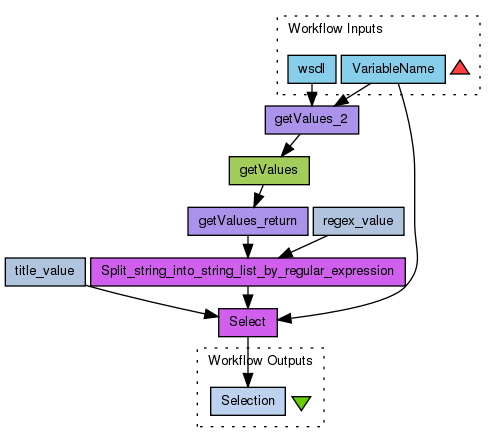

Preview

Download as scalable diagram (SVG)

Run

Run this Workflow in the Taverna Workbench...

Option 1:

Copy and paste this link into File > 'Open workflow location...'
http://myexperiment.org/workflows/1743/download?version=1
[ More Info Expand ]

Workflow Components

Authors (0)

Titles (0)

Descriptions (0)

Dependencies (0)

Inputs (2)

Name	Description
VariableName
wsdl

Processors (7)

Name	Type	Description
getValues	wsdl	Wsdl http://ropot.ijs.si/webservices/janez/getvalues.php?wsdl Wsdl Operation getValues
getValues_2	xmlsplitter
getValues_return	xmlsplitter
Select	localworker	Script import javax.swing.JOptionPane; answer = (String) JOptionPane.showInputDialog(null, (message == void ? null : message), (title == void ? null : title), JOptionPane.QUESTION_MESSAGE, null, valueList.toArray(), valueList.get(0));
title_value	stringconstant	Value Select
Split_string_into_string_list_by_regular_expression	localworker	Script List split = new ArrayList(); if (!string.equals("")) { String regexString = ","; if (regex != void) { regexString = regex; } String[] result = string.split(regexString); for (int i = 0; i < result.length; i++) { split.add(result[i]); } }
regex_value	stringconstant	Value ,

Beanshells (0)

Outputs (1)

Name	Description
Selection

Datalinks (10)

Source	Sink
getValues_2:output	getValues:getValues
VariableName	getValues_2:varname
wsdl	getValues_2:wsdl
getValues:return	getValues_return:input
title_value:value	Select:title
VariableName	Select:message
Split_string_into_string_list_by_regular_expression:split	Select:valueList
getValues_return:values	Split_string_into_string_list_by_regular_expression:string
regex_value:value	Split_string_into_string_list_by_regular_expression:regex
Select:answer	Selection

Coordinations (0)

Information Workflow Type

Taverna 2

Information Uploader

Petra Kralj Novak

Information License

All versions of this Workflow are licensed under:

Information Version 1 (of 1)

Information Credits (2)

(People/Groups)

Information Attributions (0)

(Workflows/Files)

None

Information Tags (3)

Uploader tags

Log in to add Tags

Information Shared with Groups (0)

None

Information Featured In Packs (0)

None

Log in to add to one of your Packs

Information Attributed By (2)

(Workflows/Files)

Lemmatization
Private item

Information Favourited By (1)

Sixuan Wang

Information Statistics

1624 viewings

1012 downloads

[ see breakdown ]

Citations (0)

None

Version History

In chronological order:

Select from a list of possible web service parameter values

Created by Petra Kralj Novak on Thursday 23 December 2010 12:54:48 (UTC)

Last edited by Petra Kralj Novak on Thursday 23 December 2010 12:57:45 (UTC)

Reviews (0)

No reviews yet

Be the first to review!

Comments (0)

View Timeline

No comments yet

Log in to make a comment
